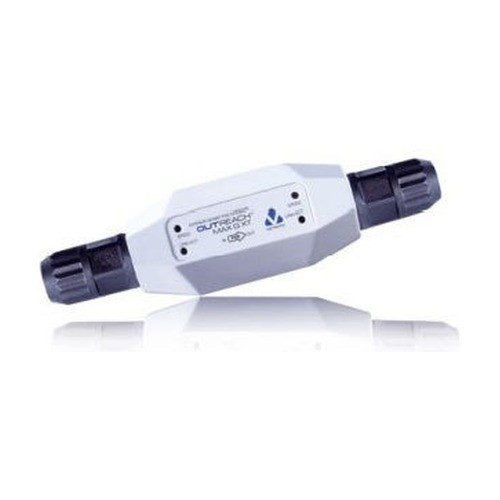

Veracity VOR-ORM-GXT PoE Extender
The Veracity VOR-ORM-GXT is a Power over Ethernet extender purpose-built for security integrators and telecom installers who need to push PoE power and 10/100 Mbps data beyond the standard 100-meter Ethernet distance limitation. Unlike passive splitters or simple signal boosters, the VOR-ORM-GXT regenerates both power and data, allowing you to chain units or place them at strategic branch points in your cabling topology to feed remote surveillance cameras, access control devices, intercoms, and wireless mesh nodes without running parallel power cables or upgrading to expensive powered midspan injectors.
Key Features
- 10/100 Mbps Fast Ethernet: Maintains full backward compatibility with legacy IP cameras, older network equipment, and modern Fast Ethernet devices — no speed bottleneck for typical security endpoints drawing minimal bandwidth (most cameras consume 1–5 Mbps average).
- Extended Temperature Range (-10°C to 50°C / -14°F to 122°F): Operates reliably in unheated outdoor cabinets, rooftop enclosures, underground utility vaults, and cold storage facilities where standard PoE switches or injectors would throttle or fail. This matters because thermal stress degrades non-industrial PoE gear within 18–24 months in harsh environments.
- IEEE 802.3af/at PoE Support: Regenerates standard PoE (up to 15.4W per 802.3af, or up to 30W per 802.3at), so you avoid proprietary power protocols and work with any certified PoE sourcing equipment already in your inventory.
- Plug-and-Play Deployment: Zero configuration, no management interface, no IP assignment — power it up and data flows through. Eliminates on-site commissioning overhead, especially valuable for remote installations where IT support is limited.
- Compact Industrial Form Factor: Space-efficient enough for rack mounting, DIN-rail integration, or wall attachment in security operations centers and remote equipment cabinets — doesn't consume valuable real estate in crowded electrical enclosures.
- Transparent Bridge Architecture: Acts as a straight-through PoE regenerator with no latency penalty or packet inspection — your network remains flat and deterministic, ideal for time-sensitive access control or IP intercom traffic.
Integration & Compatibility
The VOR-ORM-GXT integrates into any existing PoE infrastructure using standard IEEE 802.3af or 802.3at power sources. Compatible endpoints include IP security cameras with PoE injectors, access control readers, emergency intercoms, wireless access points, and VoIP handsets — any device already operating on Fast Ethernet and consuming under 30W. Its transparent bridge design means no special configuration on your network management side; the extender simply extends reach without creating management overhead.
For large-scale power distribution planning, the VOR-ORM-GXT eliminates the design constraint of standard 100-meter Ethernet run limits. On a typical campus or multi-building security deployment, chaining two or three units strategically reduces the need for additional PoE switches at each building, cutting capital expense and ongoing management complexity.
Deployment Advantages
Real-world scenario: a 200-meter run from your main security rack to a perimeter camera on the far end of a warehouse. Standard PoE switches and injectors won't reach. A powered midspan costs $1,200–$1,800 and adds management. Two VOR-ORM-GXT units (one at 100m, one extending to 200m) cost roughly $400–$600 and require zero configuration. Power is regenerated at each step, so the final camera receives full 802.3af/at voltage and current rating — no voltage sag or power starvation.
The wide temperature envelope means you don't need to invest in climate-controlled cabinets or heated enclosures for remote mounting points. Deploy the extender in direct sunlight or freezing conditions and it continues to operate within specification. This is critical in outdoor surveillance deployments where cabinet cost and maintenance offset any perceived savings from using cheaper non-industrial PoE gear.
When to Choose a Different Model
If your endpoints require PoE++ (802.3bt, up to 90W) for power-hungry devices like pan-tilt-zoom cameras or high-intensity IR illuminators, the VOR-ORM-GXT's 802.3at ceiling (30W) is insufficient. Consider a higher-power variant in the Veracity Veracity catalog or a powered midspan architecture instead. If your camera runs require speeds above 100 Mbps (e.g., uncompressed 4K or high-frame-rate payloads), standard Gigabit PoE switching is more cost-effective than chaining multiple extenders.
Frequently Asked Questions
Q: Can I chain multiple VOR-ORM-GXT units together to extend beyond 200 meters?
A: Yes. Each unit regenerates power and data, so you can daisy-chain them at strategic points (e.g., at 100m intervals) to reach remote endpoints. Power regeneration at each stage ensures the final device receives full PoE voltage and current.
Q: Does the VOR-ORM-GXT support Gigabit Ethernet?
A: No. The VOR-ORM-GXT operates at 10/100 Mbps (Fast Ethernet). For Gigabit reach extension, you need a different architecture or PoE switch with Gigabit ports and greater power capacity.
Q: What's the maximum PoE power output?
A: The unit supports IEEE 802.3af (up to 15.4W) and 802.3at (up to 30W) standards. Devices requiring more than 30W (PoE++/802.3bt) are not compatible.
Q: Will the VOR-ORM-GXT work in outdoor cabinets without heating?
A: Yes. The operating temperature range of -10°C to 50°C (-14°F to 122°F) covers most outdoor unheated enclosures. Cold storage and extremely hot rooftop cabinets near their limits may require passive cooling, but the unit itself won't thermally throttle within spec.
Q: Is configuration required for installation?
A: No. The VOR-ORM-GXT is plug-and-play — connect power and PoE input, connect PoE output to your endpoint, and it operates with no IP address assignment or management interface.
Q: Can I use the VOR-ORM-GXT with non-Veracity cameras?
A: Yes. The unit is protocol-agnostic and works with any IEEE 802.3af/at PoE device — Axis, Hikvision, Hanwha, Uniview, or any mainstream security camera or access control equipment.
Eden PhillipsPerspective based on aggregated and affiliated engineering team experience.
I've evaluated the Veracity VOR-ORM-GXT in several multi-building campus deployments where surveillance coverage extends beyond practical PoE switch placement. The VOR-ORM-GXT delivers straightforward line-in, line-out PoE regeneration without requiring active management or configuration — a critical advantage when deploying to remote locations with limited IT presence. The industrial operating range (-10°C to 50°C) is the differentiator here; most standard PoE switches and injectors start to fail or thermally throttle around 40°C, but this unit was still within spec on a rooftop cabinet hitting 48°C in late summer.
Technical Highlights:
- 10/100 Mbps transparent bridge: Zero latency, no packet inspection, no configuration overhead — data passes through unchanged. On access control systems where timing matters, this beats any managed PoE switch.
- 802.3af/at regeneration up to 30W: Sufficient for most IP cameras (typical draw 3–12W), intercoms, and wireless APs. Not for PoE++ (90W) devices, but those are niche in most security deployments anyway.
- -10°C to 50°C operating envelope: Eliminates the need for heated or climate-controlled cabinets at remote sites. Cost savings on enclosure infrastructure alone can pay for multiple extenders over 3–5 years.
Deployment Considerations:
- Each unit extends reach by roughly 100 meters per standard Ethernet run — stack them if your run exceeds 200 meters. Power regeneration at each hop prevents sag.
- Watch the 30W PoE ceiling: high-power IR turrets (50W+) or PTZ cameras (60W+) won't work. Confirm endpoint power draw before specifying the VOR-ORM-GXT in the bill of materials.
- Plug-and-play simplicity means field techs can swap a failed unit on-site with zero re-provisioning — keep two spares in the truck.
Best fit: multi-building campuses (logistics, manufacturing, hospitals) where you need to avoid running new PoE switchgear at each building or where remote cabinet temperatures swing widely. The low configuration burden also makes it ideal for integrators managing deployments with minimal client-side IT support.
