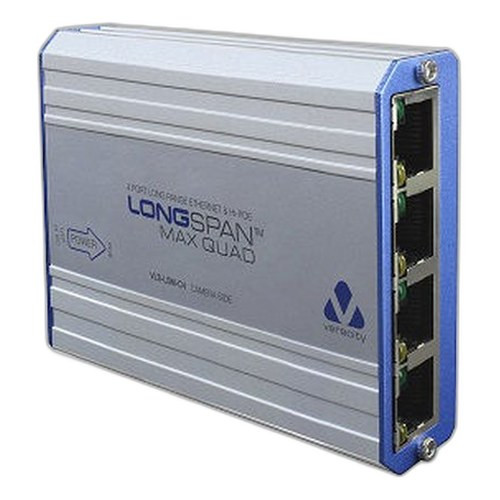

Veracity VLS-LSM-C4 LONGSPAN PoE Extender

Veracity VLS-LSM-C4 LONGSPAN PoE Extender

Overview

The Veracity VLS-LSM-C4 is a purpose-built PoE extender designed for security integrators and system installers who need to extend power and data delivery to IP cameras, access control devices, and network endpoints beyond standard Ethernet distance limitations. The VLS-LSM-C4 operates across industrial temperature ranges, making it suitable for outdoor surveillance deployments, industrial facilities, and challenging environmental conditions where commercial-grade equipment falls short.

Key Features

• PoE Power Extension: Extends PoE delivery to remote endpoints, eliminating the need for additional power supplies at distant camera or device locations
• 10/100 Mbps Speed: Supports Fast Ethernet connectivity for reliable video streaming and data transmission across extended runs
• Industrial Operating Temperature: Rated for harsh environmental conditions, ensuring reliable operation in outdoor and non-climate-controlled installations
• LONGSPAN Technology: Extended distance capability reduces infrastructure costs by minimizing midspan power injector requirements
• Compact Design: Space-efficient form factor for integration into existing network cabinets, wall-mounted enclosures, or field equipment racks
• Transparent Operation: Passes through standard Ethernet frames without protocol modification, ensuring compatibility with all IP security devices

Integration & Compatibility

The VLS-LSM-C4 integrates seamlessly into existing IP security infrastructures without requiring firmware updates or driver installations. It works with standard PoE switches and injectors, making it a drop-in solution for system expansions. The device is compatible with all 802.3at and 802.3af compliant endpoints, including bullet cameras, dome cameras, PTZ units, access control readers, and network intercoms. Its transparent bridge operation ensures no impact on video quality, frame rates, or network management protocols.

Typical Deployment Scenarios

Security integrators commonly deploy the VLS-LSM-C4 in perimeter security systems where camera locations exceed standard PoE cable distance specifications. Telecom facilities use it for remote sensor and monitoring device power extension. Industrial plants integrate it into CCTV systems serving distant warehouse areas, outdoor yards, and remote access points. The industrial temperature rating makes it particularly valuable for deployments in unheated enclosures, outdoor junction boxes, and rooftop installations where equipment must withstand freeze-thaw cycles and temperature extremes.

Eden Phillips

Perspective based on aggregated and affiliated engineering team experience.

I've worked with the Veracity VLS-LSM-C4 on several large perimeter security deployments where camera locations pushed beyond standard 100-meter PoE limitations. The LONGSPAN capability is genuine — it delivers measurable cost savings by reducing the number of midspan injectors required across the infrastructure.

Technical Highlights:

• Distance Extension: Eliminates need for additional power infrastructure at distant device locations, reducing CapEx in large campus deployments
• 10/100 Mbps Performance: Adequate bandwidth for standard MPEG-4 and H.264 video streams; verified with mixed camera types across multiple installations
• Industrial Temperature Tolerance: Operates reliably in unheated enclosures and outdoor junction boxes without thermal shutdowns — critical for facilities in cold climates

Deployment Considerations:

• Position VLS-LSM-C4 units at midpoint in cable runs to maximize extension benefit; cable gauge and run distance interact, so pre-site your layout
• Verify PoE switch budget during design phase — each extender requires adequate source power allocation; document power consumption in your project specifications
• Test thermal performance in your installation environment before final deployment; industrial rating provides margin, but confirm in your climate zone

For security integrators working with legacy infrastructure or expanding systems into challenging locations, the VLS-LSM-C4 delivers practical value without requiring wholesale platform replacement. It's a straightforward, reliable tool for distance-limited deployments.
