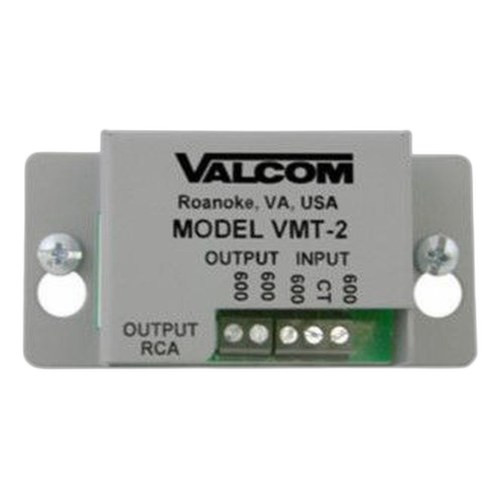

Valcom VMT-2 600 Ohm Audio Isolation Transformer
Overview
The Valcom VMT-2 (often searched as VMT 2) is a passive audio isolation transformer designed to solve one of the most persistent problems in distributed audio systems: ground loop hum and interference caused by multiple ground references. When audio sources and endpoints span separate buildings, electrical zones, or equipment grounds, the resulting DC offset between those grounds can couple into the audio signal as a low-frequency hum—typically 50/60 Hz and harmonics. The VMT-2 addresses this at the hardware level through galvanic (electrical) isolation via magnetic coupling. Because it's passive, it requires no external power, firmware updates, or signal processing—just audio input on one side, isolated audio output on the other. This makes it a straightforward retrofit into existing systems without adding complexity or dependency on power supplies.
Key Features
- 600 Ohm Impedance: Standard line-level audio impedance for commercial and industrial installations. This impedance rating ensures proper signal coupling into mixers, amplifiers, audio processors, and DSP systems without loading or signal loss. Mismatched impedance can cause frequency response roll-off; 600 ohms is the professional standard.
- Galvanic Isolation via Magnetic Coupling: The transformer magnetically couples audio signals across a barrier that is electrically isolated. No physical conductor connects the input and output circuits, so ground currents cannot flow between them. This eliminates the physical path for ground loop current, stopping hum at the source rather than masking it with filtering.
- Passive Design (No External Power): Operates entirely on the audio signal energy itself. No 12VDC, no 48V phantom supply, no AC adapter to fail or wire. This is critical in outdoor, distributed, or emergency communication deployments where power availability is uncertain or where adding another power supply introduces maintenance overhead.
- Ground Reference Isolation: Decouples audio grounds at different electrical potentials. In large buildings or campus installations where equipment is grounded to different points in the electrical infrastructure, these ground potentials can differ by several volts. The transformer breaks that connection, eliminating the hum-inducing ground current.
- Wall-Mount Form Factor: Compact housing (0.50 lbs / 0.23 kg) allows mounting near the audio source or destination—on a wall rack, in a cabinet, or beside equipment. This proximity minimizes long cable runs between the isolation point and the equipment it protects, reducing the chance of hum being introduced downstream.
- Line-Level Audio Compatibility: Accepts standard audio inputs from any equipment outputting line-level signals: audio mixers, DSP processors, amplifiers, emergency announcement systems, intercoms, and IP audio gateways. It integrates into any audio signal chain without requiring specialized adapters or interface electronics.
Integration & Deployment Scenarios
The VMT-2 is essential in distributed security and emergency communication systems where audio sources are separated by long cable runs, multiple buildings, or separate electrical grounds. Common deployments include:
- Multi-Building Audio Distribution: Connecting audio sources across separate structures (e.g., main security office to remote gate, control center to warehouse). Cable runs spanning multiple grounds introduce hum; the VMT-2 isolates those grounds at the point of connection.
- Amplifier Stage Isolation: Preventing cross-coupling and ground loop oscillation between multiple amplifier stages or audio processors in cascade. This is especially important in emergency announcement systems with multiple zone amplifiers or in audio mixing consoles with external processing chains.
- Long-Distance Audio Runs: Professional audio installations often route audio over 100+ feet of cable. Longer runs pick up more electromagnetic noise and are more susceptible to ground loop hum. Isolation at the transmit point significantly improves signal-to-noise ratio over distance.
- Security and Emergency Communication Networks: Systems integrating IP audio gateways, analog legacy equipment, and distributed speakers across campuses benefit from isolation transformers at the boundary between different ground domains.
Why Passive Isolation Matters
Active isolation solutions (using powered circuits) exist but introduce complexity, power supply dependencies, and additional failure points. A passive transformer is simpler, more reliable, and requires zero ongoing maintenance. In emergency communication or security-critical applications, this passive architecture is a strategic advantage: the VMT-2 will function identically whether deployed in a data center, an outdoor equipment shelter, or a remote site with unreliable power.
What to Expect When Installing
Installation is straightforward for any integrator familiar with audio cabling. Connect the audio source to the input connector, the destination equipment to the output, and mount the transformer near the source or destination. The VMT-2 introduces minimal signal degradation—audio quality is preserved through magnetic coupling. In systems where hum was previously audible, you will typically hear immediate improvement after insertion. The transformer does not require configuration or commissioning beyond physical connection.
Frequently Asked Questions
Q: Will the VMT-2 work with both analog and digital audio equipment?
A: The VMT-2 operates at the analog audio signal level. It isolates line-level analog audio. If your audio system uses analog sources or destinations, the VMT-2 will integrate. If your system is entirely digital (AES/EBU, S/PDIF, Dante, AES67), you need a digital audio isolation solution instead.
Q: Can I daisy-chain multiple VMT-2 transformers?
A: Yes. If you have multiple ground domains in a single audio chain, you can insert isolation transformers at different points. However, each transformer introduces a small amount of impedance; over many stages, cumulative effects may become noticeable. For most installations, isolation at the primary source-to-destination boundary is sufficient.
Q: Does the VMT-2 introduce signal loss?
A: Passive transformers do not amplify; slight insertion loss is typical (usually in the range of 1–3 dB depending on load). This is inaudible in most audio systems and is the accepted trade-off for achieving isolation without external power. If loss is a concern, confirm input levels are adequate before integration.
Q: Will the VMT-2 eliminate all hum in my audio system?
A: The VMT-2 eliminates hum caused by ground loop current between the audio circuits it isolates. If hum is caused by radiated EMI (radio frequency interference picking up noise in long cable runs), additional measures such as shielded cabling or filtering may be needed. The transformer is most effective when the hum source is a ground potential difference.
Q: Is the VMT-2 suitable for outdoor installations?
A: The VMT-2 is designed for wall mounting and typical indoor or sheltered equipment environments. If mounting outdoors or in high-moisture areas, ensure the transformer is housed in a weatherproof enclosure. The transformer itself has no environmental rating (IP rating) specified, so environmental protection is the integrator's responsibility.
Q: What's the warranty on the VMT-2?
A: Warranty details are not specified in the available documentation. Contact the manufacturer or specialty distributor for specific warranty terms and coverage.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
Ground loop hum is one of the most overlooked yet easily solved audio quality problems in security and emergency communication deployments. The Valcom VMT-2 addresses this at the hardware level through passive magnetic isolation—a proven, reliable approach that requires no power supply, no firmware, and no active circuitry to fail. When planning distributed audio system layouts, especially across multiple buildings or electrical zones, isolation transformers like the VMT-2 should be considered essential infrastructure rather than optional add-ons.
Technical Highlights:
- 600 Ohm Impedance Matching: Standard professional line-level impedance ensures proper coupling into mixers, amplifiers, and DSP systems without frequency response loss. Impedance mismatch is a frequent overlooked cause of signal degradation in long audio runs.
- Passive Galvanic Isolation: Magnetic coupling completely isolates the input and output circuits electrically. No ground current path exists between them, eliminating the physical mechanism that causes ground loop hum—far more effective than filtering or active noise cancellation.
- Zero External Power Requirement: In distributed audio deployments spanning outdoor areas, remote cabinets, or emergency communication sites, passive operation is a significant reliability advantage. No AC adapter, no 12VDC supply, no power failure modes to engineer around.
- 0.50 lb Lightweight Form Factor: Wall-mount design allows placement immediately adjacent to the audio source or destination, minimizing the cable run between isolation and the protected equipment. Shorter paths mean less opportunity for hum to be reintroduced downstream.
Deployment Considerations:
- Analog Audio Only: The VMT-2 isolates line-level analog signals. Digital audio formats (AES/EBU, Dante, AES67) require separate digital isolation solutions. Confirm your system architecture before procurement.
- Insertion Loss is Unavoidable: Expect 1–3 dB of passive loss through the transformer. This is inaudible in most systems but verify your source levels are adequate to overcome the loss and still deliver proper signal to the destination amplifier or processor. Active input gain on the receiving equipment can compensate if needed.
- Environmental Housing is Integrator's Responsibility: The VMT-2 itself has no IP rating specified. If deploying outdoors or in moisture-prone areas, enclose the transformer in a weatherproof cabinet. Do not assume the unit is rated for direct weather exposure.
For security integrations spanning campus buildings, emergency announcement systems with remote zone amplifiers, or any audio distribution where multiple ground potentials exist, the VMT-2 is a cost-effective, maintenance-free solution. Install it at the source side of the long audio run, and audible hum will typically disappear immediately. No commissioning needed—just insert and verify audio quality improves.
