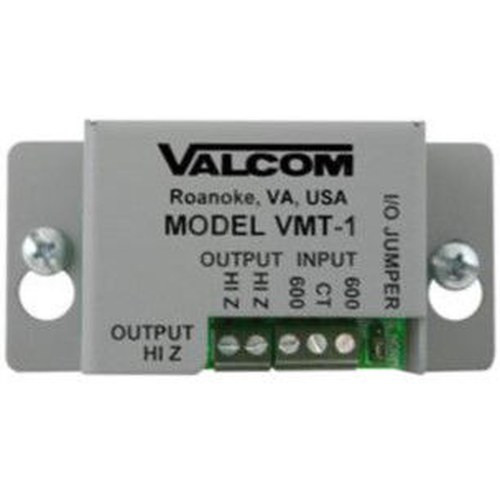

Valcom VMT-1 600-Ohm Impedance Matching Transformer
Overview
The Valcom VMT-1 is a line-level impedance matching transformer designed to connect audio sources and loads across 600-ohm telephone lines and public address systems. This transformer solves a specific integration problem: when telephone system outputs or PA amplifier inputs present mismatched impedance levels, signal reflections and insertion loss occur, degrading audio clarity and potentially damaging equipment. The VMT-1 (often searched as VMT 1) bridges this gap passively, making it essential in legacy telephone infrastructure upgrades, hybrid voice-and-audio installations, and facility-wide announcement systems.
Key Features
- 600-Ohm Line Impedance Matching: Engineered specifically for standard telephone and legacy PA infrastructure impedance. Eliminates signal reflections that degrade audio quality when mismatched source and load impedances are connected directly.
- Dual-Mode Operation: Configurable for both input-matching (telephone-to-amplifier) and output-matching applications, so a single unit adapts to different system topologies without requiring variant models.
- Passive Transformer Design: Requires no external power; operates entirely through electromagnetic coupling. This means no AC wall outlet needed, no batteries to replace, and no single point of failure from a power supply failure or outage.
- Balanced and Unbalanced Signal Support: Accommodates both balanced (3-pin XLR, 2-pin TB) and unbalanced (RCA, single-ended) audio signals, depending on your amplifier input configuration and existing wiring.
- Compact Form Factor: Small, lightweight passive unit integrates into existing racks, wall-mounted cabinets, or distributed audio installations without consuming rack space or adding thermal load.
- Signal Integrity Preservation: Prevents impedance-related insertion loss and distortion that occurs when 600-ohm telephone lines connect directly to mismatched amplifier inputs, maintaining audio fidelity across facility announcements.
Integration & Compatibility
The VMT-1 is purpose-built for installations where telephone system outputs or inputs present 600-ohm impedance that does not match standard public address amplifier inputs. This is particularly common in older facilities with dedicated telephone infrastructure or hybrid systems integrating legacy phone lines with modern PA. Installation is straightforward: connect the 600-ohm line side to the telephone system or audio source, and connect the standard-impedance side to the public address amplifier input. Before deployment, verify your specific amplifier input impedance specification to ensure the transformation ratio aligns with your system design.
The transformer maintains signal integrity by preventing the impedance reflections and insertion loss that degrade audio quality when source and load impedances are mismatched. For facility-wide emergency communication systems, paging, or telephone-to-PA bridging applications, the VMT-1 ensures clean audio delivery without additional electronics or configuration.
Frequently Asked Questions
Q: Does the VMT-1 require external power?
A: No. The VMT-1 is a passive transformer that operates entirely through electromagnetic coupling. It requires no AC outlet, batteries, or external power supply.
Q: Can the VMT-1 work with both balanced and unbalanced audio signals?
A: Yes. The VMT-1 accommodates both balanced (XLR, terminal block) and unbalanced (RCA, single-ended) audio signals depending on your amplifier configuration and existing wiring.
Q: What impedance does the VMT-1 match to on the non-600-ohm side?
A: The VMT-1 is engineered for 600-ohm telephone line matching. Consult the manufacturer datasheet or contact Valcom directly to confirm the output impedance specification for your specific amplifier model.
Q: Is the VMT-1 suitable for legacy telephone system upgrades?
A: Yes. The VMT-1 is designed specifically for legacy telephone infrastructure upgrades where 600-ohm telephone lines need to interface with modern PA amplifiers or audio systems operating at different impedance levels.
Q: Can I install the VMT-1 in a distributed audio system?
A: Yes. The compact passive design integrates into wall-mounted cabinets, racks, or distributed audio installations without requiring power outlets or consuming significant space.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Valcom VMT-1 addresses a specific but critical requirement in professional audio integration: impedance matching between telephone infrastructure and amplified audio systems. During facility-wide announcement system upgrades, I encounter installations where legacy 600-ohm telephone lines need to feed modern PA amplifier inputs operating at different impedance levels. The VMT-1 solves this cleanly and passively — no power supply, no configuration, just electromagnetic coupling that eliminates signal reflections and insertion loss.
Technical Highlights:
- Passive Transformer Operation: Requires zero external power. This matters in distributed installations where running dedicated AC or DC lines is costly or impossible. One less power failure point in your system.
- 600-Ohm Line Matching: Eliminates impedance reflections between telephone systems and PA amplifiers, preserving audio fidelity across facility announcements and emergency paging without audible distortion or level drop.
- Dual-Mode Flexibility: Works as input-matching or output-matching transformer, so a single SKU adapts to different telephone-to-amplifier topologies and signal flow directions without requiring model variants.
- Balanced and Unbalanced Support: Accepts both XLR/TB and RCA/single-ended connections, eliminating the need to choose between hardware variants based on your existing wiring.
Deployment Considerations:
- Impedance Verification Required: Before purchasing, confirm your target PA amplifier's input impedance specification. The VMT-1 is engineered for 600-ohm lines; mismatch on the output side will degrade the benefit.
- Legacy Infrastructure Prerequisite: The VMT-1 is most valuable in facilities with actual 600-ohm telephone infrastructure. If you're working with modern digital phone systems or IP-based audio, verify the analog line impedance first.
- Installation Simplicity: Compact size and passive operation mean no rack power planning, no thermal management, and quick integration — but ensure balanced/unbalanced wiring matches your amplifier's input connector type.
Position this for telephone-to-PA bridging in older office buildings, hospitals, schools, and warehouses where legacy telephone infrastructure must integrate with modern facility announcement systems. It's not a universal audio transformer — it solves a specific impedance mismatch that occurs regularly in those environments.
