Viking Electronics AIB-1 Audio Isolation Board
Overview

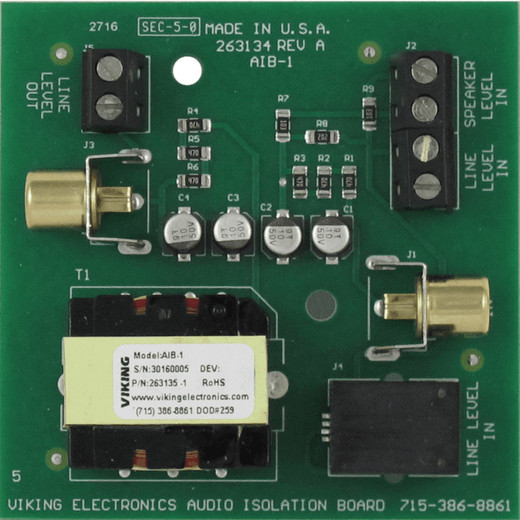

The Viking Electronics AIB-1 is a 1:1 isolation transformer board built to break ground loops and enable clean audio coupling between two independent circuits. At 2.7" x 2.7" x 1" and 0.4 lbs, it fits inside enclosures, on back-boxes, or on any surface with minimal footprint — a workhorse component for intercom system installations, PA integrations, and security audio tie-ins where you need electrical isolation without degrading the signal. The AIB-1 (often searched as AIB 1) is the model specifiers reach for when two audio devices share a common ground and the result is hum, buzz, or noise on the line.
Key Features
- 1:1 Winding Ratio: Passes audio at unity gain (before insertion loss), so the level relationship between source and destination stays predictable. No transformer step-up or step-down surprises to compensate for downstream.
- -2dB Insertion Loss at 600 Ohm Load: A 2dB drop is negligible in most professional audio paths — you will not need to pad levels back up at the mixer or amplifier in a typical install. This assumes a properly terminated 600-ohm load; mismatched impedance will increase the loss.
- 600-Ohm Input and Output Impedance: Matched to the professional balanced audio standard, making the AIB-1 a direct fit for telephone interfaces, intercoms, and PA amplifiers that expect 600-ohm sources or loads.
- 50Hz to 20kHz Frequency Response (+/-3dB): Full audible bandwidth coverage means voice intelligibility and music content both pass cleanly — relevant for background music zones, lobby intercom, and emergency notification systems where frequency rolloff would degrade clarity.
- Three Connection Types — RJ-11, RCA, and Screw Terminals: One RJ-11 modular jack, two RCA jacks, and six screw terminals on a single board. This combination covers telephone-interface wiring, consumer audio sources, and direct stripped-wire connections without adapters.
- Compact 2.7" x 2.7" x 1" Form Factor: Drops into a standard back-box or mounts inside an enclosure alongside other components. The small footprint matters in retrofits where there is no room for a separate chassis-mount transformer.
- Operating Temp 32°F to 90°F (0°C to 32°C): Rated for conditioned interior spaces. Do not install in unheated equipment rooms, exterior enclosures, or anywhere ambient temperature can exceed 90°F — the spec range is narrower than many comparable passive components.
- 5% to 95% Non-Condensing Humidity: Standard for indoor telecom and AV equipment rooms. Adequate for most commercial interiors; not rated for wet or outdoor environments.
Integration and Compatibility
The AIB-1 connects into any audio signal path requiring galvanic isolation — telephone interface cards, door intercom panels, paging amplifiers, and security intercoms are the primary targets. The six screw terminals accommodate direct wiring to field-run cable; the RJ-11 jack interfaces directly to standard telephone-grade wiring and Viking's own intercom product family; the RCA jacks bridge consumer-grade audio sources. Because impedance is fixed at 600 ohms both sides, verify that adjacent equipment in your Viking Electronics signal chain is also 600-ohm compatible to avoid compounding insertion loss. For broader intercom and access control deployments, pair the AIB-1 with Viking door controllers or entry panels where audio ground-loop isolation is needed at the door station. Consult a PoE switch or power distribution plan separately — the AIB-1 is a passive transformer board and requires no external power supply.
Frequently Asked Questions
Q: Does the AIB-1 require external power?
A: No. The AIB-1 is a passive 1:1 isolation transformer. It has no active electronics and requires no power supply or PoE input.
Q: What connection types does the AIB-1 support?
A: One RJ-11 modular jack, two RCA jacks, and six screw terminals — all on the same board, allowing direct wiring, telephone-interface, or consumer-audio connections without adapters.
Q: What is the insertion loss of the AIB-1?
A: -2dB with a 600-ohm load. In most professional audio paths this is negligible, but impedance mismatch will increase the loss, so verify that source and destination equipment are 600-ohm compatible.
Q: Can the AIB-1 be installed in an outdoor enclosure?
A: The operating temperature range is 32°F to 90°F (0°C to 32°C). This is an indoor-rated component. It should not be installed in unheated or unventilated exterior enclosures where temperatures can fall below freezing or exceed 90°F.
Q: What audio bandwidth does the AIB-1 pass?
A: 50Hz to 20kHz at +/-3dB — full audible range, suitable for voice and music applications including intercoms, PA systems, and background music zones.
Q: Is the AIB-1 compatible with Viking intercom equipment?
A: Yes. The RJ-11 modular jack is compatible with Viking's telephone-interface intercom family, and the 600-ohm impedance matches the standard used across Viking's audio product line.
The AIB-1 is the component I specify whenever I have two audio devices sharing a common ground path and the result is 60Hz hum on the line — a scenario that shows up constantly in lobby intercom installs and security desk integrations. The 1:1 transformer gives you galvanic isolation without any active circuitry to fail, and the -2dB insertion loss at 600 ohms is low enough that it disappears in the mix.
Technical Highlights:
- 50Hz–20kHz Bandwidth (+/-3dB): Full audible range is preserved end to end — you are not trading frequency response for isolation, which matters in paging and background music applications where rolled-off highs sound unprofessional.
- Three Connector Types on One Board: RJ-11, dual RCA, and six screw terminals means this board adapts to almost any field wiring situation without a breakout adapter — reduces parts count and troubleshooting surface area.
- 2.7" x 2.7" x 1" Form Factor: Small enough to mount inside the back-box of a door station or on the DIN rail of a small enclosure alongside Viking controllers — no separate housing needed.
Deployment Considerations:
- The 600-ohm input and output impedance is fixed — confirm adjacent equipment is also 600-ohm, or measure insertion loss post-install. A 10k-ohm source driving a 600-ohm load will see significantly more than 2dB of loss.
- Operating temperature tops out at 90°F (32°C). In server closets or poorly ventilated utility rooms that regularly exceed that, plan for active cooling or relocate the board — this is a narrower thermal window than typical passive components.
Best fit for commercial lobby intercom integrations, paging system tie-ins, and any installation where a telephone-interface panel and a PA amplifier share a common ground and generate noise. The AIB-1 is a clean, passive fix that belongs on the BOM before the hum complaint arrives on site.
