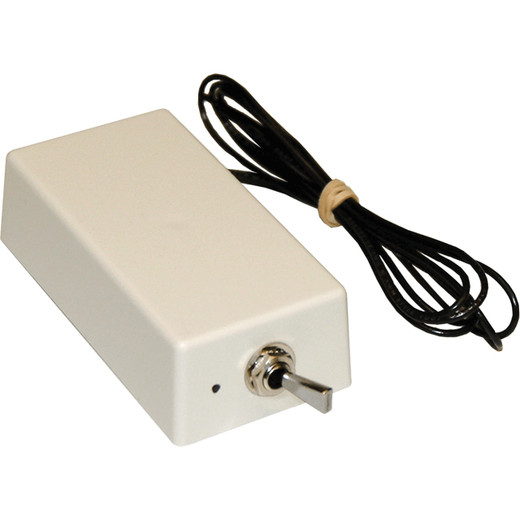

Viking Night Switch - NS-1

Viking Electronics NS-1 Night Switch Toggle Switch

The Viking Electronics NS-1 is a compact on/off toggle switch designed to plug directly into the Night Switch input found on compatible Viking products. If you're deploying Viking intercoms, door controllers, or telephone entry systems and need a simple, reliable way to switch night-mode behavior from a panel or enclosure, the NS-1 (often searched as NS 1) is the intended accessory for that input — no rewiring, no custom fabrication.

Overview

The NS-1 mounts in a small plastic case measuring 2.56" × 1.38" × 0.79" and ships with 24" pre-attached wires and two quick connectors. The result is a drop-in fit for enclosure-mounted installations where the toggle needs to sit inside a cabinet and wire back to the Viking unit a short distance away. At 0.2 lbs, it adds negligible weight to any panel assembly.

This is a single-function device: a toggle switch with a defined contact rating, pre-terminated leads, and a mounting-ready enclosure. It belongs in the same project bag as the Viking telephony or entry product it's intended to control — not as a standalone purchase. Explore the full Viking Electronics catalog to pair it with the right primary device.

Key Features

• 6A @ 125 VAC / 3A @ 250 VAC Switch Rating: The contact rating is sized for the low-current switching loads typical in Viking telecom and entry products — not for line-voltage power loads. Staying within this rating ensures the toggle contacts won't arc or degrade prematurely in long-term installations.
• 24" Pre-Attached Wire Leads: Two feet of wire is enough to reach the Night Switch terminal from most standard enclosure mounting positions without splicing. If your install needs more reach, plan the layout before mounting — extension requires additional wiring work.
• Two Quick Connectors Included: The quick connectors allow tool-free termination to the Viking device's Night Switch input, keeping installation clean and reversible. No crimp tools or terminal blocks required at the connection point.
• Compact Plastic Enclosure (2.56" × 1.38" × 0.79"): Small enough to surface-mount inside most telecom or entry enclosures without consuming meaningful panel real estate. The footprint is roughly the size of a standard toggle switch plate — easy to locate in a logical spot for whoever operates the night mode.
• 32°F to 90°F (0°C to 32°C) Operating Range: Rated for interior, climate-controlled environments. This is not an outdoor or unheated-space device — installations in garages, unheated vestibules, or exterior enclosures will need a different approach if ambient temperatures drop below freezing.
• 5% to 95% Non-Condensing Humidity Tolerance: Handles the typical humidity variation found in commercial lobbies, office corridors, and controlled utility rooms. Non-condensing means it should not be placed where moisture actively collects — sealed outdoor enclosures with condensation risk are outside spec.
• Two-Year Limited Warranty: Viking's standard two-year limited coverage applies, consistent with the rest of the Viking Electronics product line. Keep the purchase documentation for warranty service.

Integration and Compatibility

The NS-1 is purpose-built for Viking products that include a dedicated Night Switch input. According to Viking's own catalog documentation, it works with a broad range of Viking telephony and entry products — the DOD number for this part is 540 in Viking's ordering system. If you're unsure whether your specific Viking model supports a Night Switch input, check that product's terminal diagram before ordering the NS-1.

The NS-1 is not a programmable device, a timer, or a relay — it is a manual toggle. Night mode transitions are operator-initiated at the switch. If your deployment requires scheduled or automatic night-mode switching, you'll need a separate relay or controller upstream of this input. For projects that combine entry control with surveillance, review compatible access control devices and intercom systems that support Viking integration.

Wiring is straightforward: 24" leads connect via the included quick connectors to the designated Night Switch terminals on the Viking host unit. No configuration, no addressing, no firmware. Installation should take under five minutes once the Viking device is already in place.

Frequently Asked Questions

Q: What Viking products is the NS-1 compatible with?

A: The NS-1 is designed for Viking products that feature a dedicated Night Switch input. Viking's catalog lists it as a universal add-on across their telephony and entry product line. Check the terminal diagram of your specific Viking model to confirm Night Switch input availability before ordering.

Q: Can the NS-1 be used outdoors?

A: No. The NS-1 is rated for 32°F to 90°F (0°C to 32°C) operating temperature and 5–95% non-condensing humidity — parameters suited to indoor, climate-controlled environments. It is not rated for outdoor or unheated-space installation.

Q: What is the switch contact rating?

A: The NS-1 toggle is rated 6A at 125 VAC and 3A at 250 VAC. It is designed for low-current switching loads consistent with Viking telecom and entry product inputs — not for switching high-current line-voltage loads.

Q: How long are the wire leads, and do I need additional connectors?

A: The NS-1 ships with 24" (two feet) of pre-attached wire and includes two quick connectors for tool-free termination to the Night Switch input on the Viking device. No additional connectors are required for a standard installation.

Q: What is the warranty on the NS-1?

A: The NS-1 carries a two-year limited warranty from Viking Electronics.

Q: Does the NS-1 support automatic or scheduled night-mode switching?

A: No. The NS-1 is a manual toggle switch only. There is no timer, relay, or programmable logic built in. Automatic or scheduled night-mode transitions require a separate relay or controller wired upstream of the Night Switch input.

Jerry Tildsen

The NS-1 is exactly what it looks like: a 6A-rated manual toggle in a 2.56" × 1.38" × 0.79" plastic case with 24" leads and two quick connectors. I'd describe it as a finishing part — you won't order it until you're already committed to a Viking telephony or entry product that has the Night Switch input, and when you do need it, you want it on the shelf. It's that kind of product.

Technical Highlights:

• Switch Rating (6A @ 125 VAC): Adequate for the control-signal loads Viking's Night Switch inputs draw. Don't try to repurpose it for switching 120V lighting circuits — that's outside what this contact rating is designed for long-term.
• 24" Wire Length: Two feet covers most standard enclosure layouts. If your Viking unit is mounted more than 18–20" from your intended toggle position, measure first. You cannot extend the leads without additional wiring work.
• Operating Temperature Ceiling of 90°F (32°C): This is tighter than you might expect. Telecom closets and equipment rooms that run warm in summer can push past this. If your install environment regularly hits 85°F+, verify that ambient doesn't spike above 90°F before committing to this placement.

Deployment Considerations:

• The quick connectors make this a clean, no-tool termination at the Viking device — but confirm your specific Viking model's Night Switch terminal accepts the connector type before you close up the enclosure.
• The 90°F operating ceiling is a genuine limitation in warm utility rooms or sun-exposed interior enclosures. Plan accordingly or relocate the switch to a cooler mounting point inside the panel.

The NS-1 is the right call for commercial lobby or corridor deployments where a receptionist or security desk needs a physical toggle to flip Viking night mode manually — a hotel front desk controlling after-hours door access behavior is the textbook use case.
