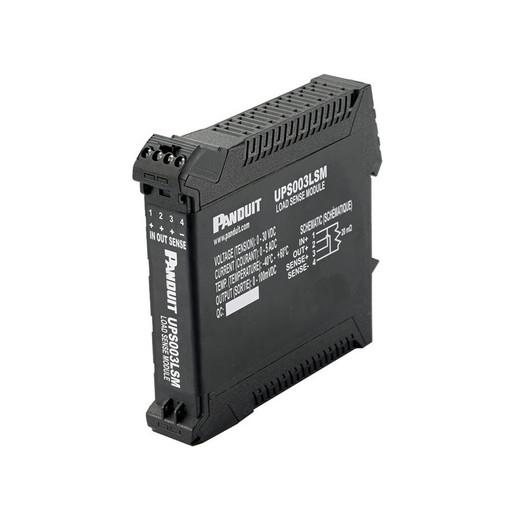

Panduit UPS003LSM Load Sense Module

Overview

The Panduit UPS003LSM is a load sense module designed to provide granular monitoring of power consumption from compatible Panduit uninterruptible power supply (UPS) systems. This module allows for real-time data on power draw, enabling better capacity planning, load balancing, and proactive identification of potential overloads. It is specifically engineered for deployments where precise UPS performance and system uptime are critical, such as in server rooms, data centers, or critical infrastructure monitoring.

Compatibility

This load sense module is designed to integrate with Panduit's NetShelter SX and NetShelter WX rack enclosures, specifically those equipped with compatible UPS units. It is intended for use with Panduit UPS models that support load sensing capabilities, ensuring accurate reporting of power consumption data. Refer to specific Panduit UPS documentation for exact model compatibility.

Installation Notes

Installation requires connecting the UPS003LSM module to the designated ports on the compatible Panduit UPS and the rack enclosure's environmental monitoring system or management device. Ensure the UPS is powered off before making connections. Proper torque must be applied to terminal connections as specified in the Panduit installation guide to ensure reliable data transmission and prevent connection failures.
