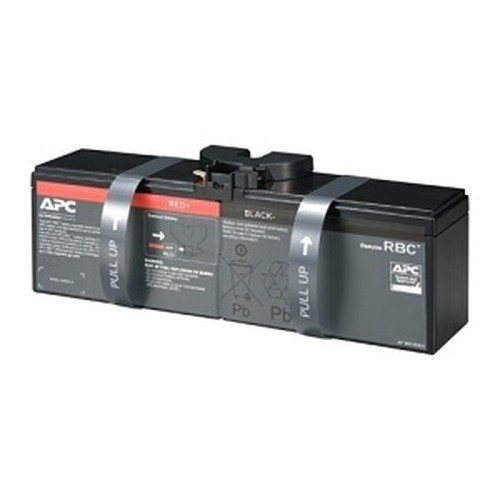

APC by Schneider Electric RBC35 UPS Replacement Battery
Overview
The APC by Schneider Electric RBC35 is a sealed lead-acid (VRLA) replacement battery designed to restore runtime capacity in compatible APC UPS systems. If your UPS runtime has degraded or a battery-fault LED has triggered, this is the direct-swap module that brings the unit back to spec — no guesswork on chemistry or form factor. At 12V / 3.2Ah in a 67.1 x 134.1 x 66 mm footprint, the RBC35 is sized for the compact UPS models that protect network edge equipment, small servers, and network video recorders in wiring closets and server rooms.
Key Features
- Sealed Lead Acid (VRLA) Chemistry: Valve-regulated lead-acid construction means no free electrolyte — you can mount this in virtually any orientation without leakage risk, which matters in tight equipment racks where battery orientation is dictated by space, not preference.
- 12V / 3.2Ah Capacity: Matches the original factory specification. Undersized third-party alternatives shorten runtime and may trigger premature battery-fault warnings on the UPS controller — this unit avoids that problem by matching rated capacity exactly.
- Compact Form Factor (67.1 x 134.1 x 66 mm): Engineered to fit the chassis dimensions of supported APC UPS models without modification. Before ordering, confirm your UPS model accepts the RBC35 via APC's compatibility tool.
- Operating Temperature 0–40°C: Covers standard indoor equipment room and wiring closet conditions. Avoid deployment in unconditioned spaces — lead-acid capacity degrades measurably above 40°C and accelerates aging, shortening replacement intervals.
- Operating Humidity 0–95% (non-condensing): Tolerates the humidity range found in most commercial building mechanical and IT spaces without corrosion risk to terminals.
- Black Housing: Matches the standard APC battery module aesthetic, relevant if the UPS is in a customer-visible location such as a reception area UPS or display-floor equipment rack.
Integration and Compatibility

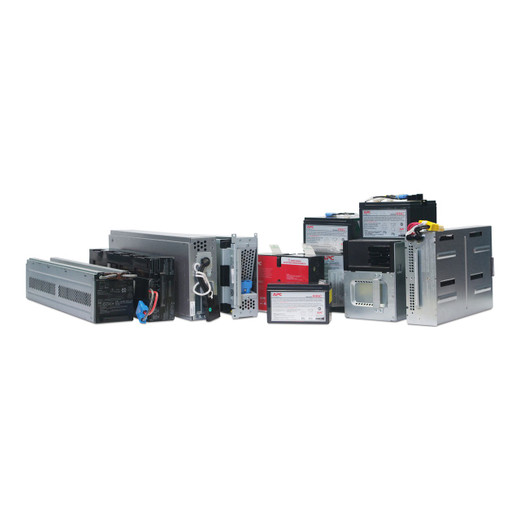

The RBC35 is part of APC's APC UPS battery replacement system. APC Battery Connect technology on supported models allows hot-swap replacement without powering down the load — verify your specific UPS model supports this before scheduling the swap during a live window. Cross-reference your UPS model number against APC's published RBC35 compatibility list before purchase; using an incorrect RBC35 in a chassis designed for a higher-capacity RBC can result in reduced runtime even if the unit physically fits. For environments running PoE switches or NVR systems on UPS protection, confirm the UPS's VA/watt rating still matches your connected load after battery replacement — the battery swap restores runtime but doesn't change the inverter's power delivery ceiling.
Frequently Asked Questions
Q: What battery chemistry does the RBC35 use?
A: The RBC35 uses sealed lead-acid (VRLA) chemistry. It is valve-regulated, meaning no free electrolyte and no required maintenance watering — install and forget until the next replacement cycle.
Q: What are the dimensions of the RBC35?
A: The RBC35 measures 67.1mm wide x 134.1mm deep x 66mm high. Confirm these dimensions fit your UPS chassis before ordering.
Q: What is the voltage and capacity of the RBC35?
A: 12 volts, 3.2 amp-hours — as specified in APC's product documentation for this replacement battery module.
Q: What operating temperature range does the RBC35 support?
A: 0°C to 40°C (32°F to 104°F). Standard indoor commercial environments fall within this range. Avoid deployment in unconditioned spaces or near heat-generating equipment that pushes ambient above 40°C.
Q: Can the RBC35 be mounted in any orientation?
A: VRLA (sealed) batteries can generally be mounted in multiple orientations without leakage. Consult your specific UPS installation guide to confirm approved mounting positions for the RBC35 in your chassis.
The RBC35 is a straightforward swap, but I see integrators get burned by one thing consistently: they confirm the RBC35 model number from a sticker on the old battery without cross-checking the current APC compatibility list for their UPS chassis. APC occasionally updates RBC designations across product revisions — always verify against your UPS model number, not just the old battery label.
Technical Highlights:
- VRLA Sealed Construction: No electrolyte venting under normal operation — safe for enclosed equipment rooms and wiring closets without special ventilation requirements beyond standard IT space conditioning.
- 12V / 3.2Ah at Compact Dimensions: At 67.1 x 134.1 x 66mm, this battery is sized for smaller APC UPS form factors — it will not physically fit larger chassis designed for higher-capacity RBC modules, so the footprint is a compatibility indicator, not just a shipping spec.
- 0–40°C Operating Window: Lead-acid capacity follows temperature closely. At the 40°C ceiling, expect measurably reduced runtime versus rated 3.2Ah — build that buffer into your load calculations if the equipment room runs warm.
Deployment Considerations:
- Battery replacement on APC UPS units with Battery Connect support can be performed without shutting down the protected load — but only if the UPS is still on utility power. Confirm UPS status before starting the swap.
- VRLA batteries age faster in high-temperature environments. If the UPS is co-located with heat-generating equipment (dense switch stacks, GPU servers), expect shorter replacement intervals than APC's published battery life estimates, which assume controlled room temperature.
This battery is the right specification for compact APC UPS deployments protecting edge network equipment, IP camera PoE switches, and NVR systems in wiring closets — environments where a dead UPS battery means a gap in recorded footage or an unplanned reboot of a managed switch during a power event.
