APC by Schneider Electric RBC30 UPS Battery
Overview

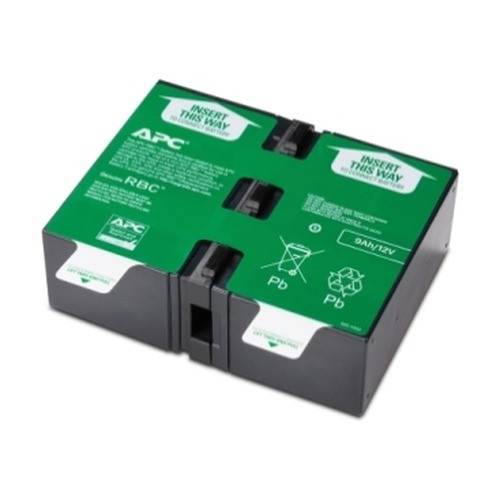

The APC Replacement Battery Cartridge #30 (RBC30) is a sealed lead-acid (VRLA) battery designed to restore UPS power capacity. This cartridge is engineered for quick replacement in specific APC UPS models, ensuring your critical equipment remains protected during power outages without requiring the entire UPS unit to be swapped. Its sealed construction means no maintenance is needed, and it can be safely installed in various orientations. The RBC30 is the correct choice when your UPS indicates a need for battery replacement due to age or reduced runtime.
Compatibility
This RBC30 cartridge is designed for use with select APC Smart-UPS and Back-UPS models. It is a direct replacement for the battery found in systems such as the APC SUA1500RM2U, SUA1500RM10U, and other units requiring a single, 12V sealed lead-acid battery of similar form factor and capacity. Always verify your UPS model's specific battery requirements before ordering.
Installation Notes
Operating temperature range is 0 to 40 °C (32 to 104 °F). Relative humidity can be up to 95% non-condensing. Dimensions are 99.1 mm wide x 74.4 mm deep x 111.8 mm high. The battery is hot-swappable in supported UPS units, allowing for replacement without powering down connected equipment.
