APC by Schneider Electric RBC11 UPS Battery
Overview

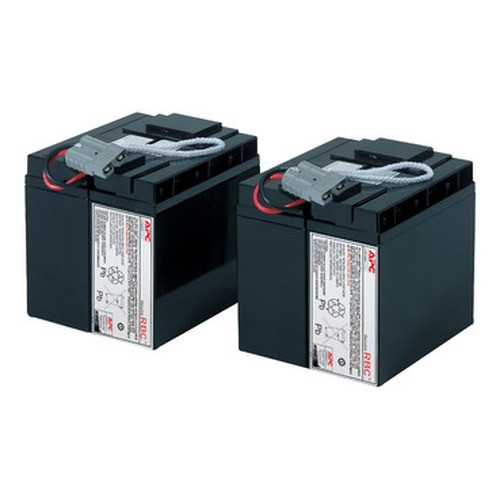

The APC RBC11 is a sealed lead-acid replacement battery cartridge designed for specific APC Uninterruptible Power Supply (UPS) systems. It provides critical backup power to ensure continuous operation of connected equipment during power outages, preventing data loss and system downtime. This cartridge features four 12V cells, each with an 18AH capacity, totaling 48V nominal when installed in a compatible UPS. The plug-and-play terminal type simplifies installation, allowing for a quick swap without specialized tools.
Compatibility
This RBC11 cartridge is specifically designed for APC Smart-UPS models that utilize four 12V batteries. It is a direct replacement for UPS units requiring the #11 battery cartridge. Verify your UPS model's battery configuration and part number to ensure compatibility before ordering. This cartridge is not a universal battery solution and will only function within designated APC UPS systems.
Installation Notes
Each battery cell measures 7.2 inches long, 3.0 inches wide, and 6.8 inches high. The total weight of the cartridge is 52 lbs. Installation requires careful handling due to the weight and voltage. Ensure the UPS unit is powered off and disconnected from the mains supply before attempting replacement. The plug-and-play terminals facilitate connection to the UPS internal wiring harness. Always follow the specific UPS model's service manual for detailed replacement procedures.
