APC by Schneider Electric RBC22 Replacement Battery Cartridge

Overview

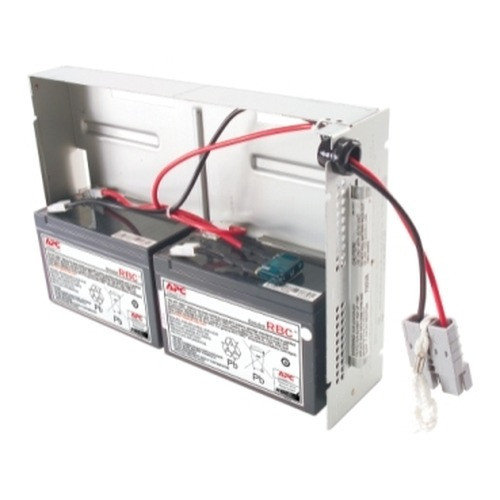

The APC Replacement Battery Cartridge #22 (RBC22) is a sealed, lead-acid battery module designed to restore UPS power capacity. It provides a 24V output, essential for maintaining uptime during power disruptions for specific APC Smart-UPS models. This cartridge is factory-sealed and pre-assembled, simplifying replacement and minimizing downtime. Its enclosed design ensures safe handling and installation, making it suitable for environments where quick, reliable power backup is critical.

Compatibility

This RBC22 cartridge is specifically engineered for the following APC Smart-UPS models: SU700R2BX120, SU700R2IBX120, SU700RM2U, SU700RMI2U, SUA750R2IX38, SUA750R2X122, SUA750R2X338, SUA750RM2U, and SUA750RMI2U. Ensure your UPS model is listed to guarantee proper fit and function.

Installation Notes

The RBC22 features an enclosed battery cartridge design for straightforward installation. It includes all required connectors and a metallic battery tray. Follow the provided installation guide carefully. The cartridge is not rack-mountable and is designed for enclosed battery cartridge mounting. Operating altitude is up to 10,000 ft (3,048 m) and storage altitude up to 50,000 ft (15,240 m). Relative humidity should be kept between 0-95% non-condensing during operation and storage.
