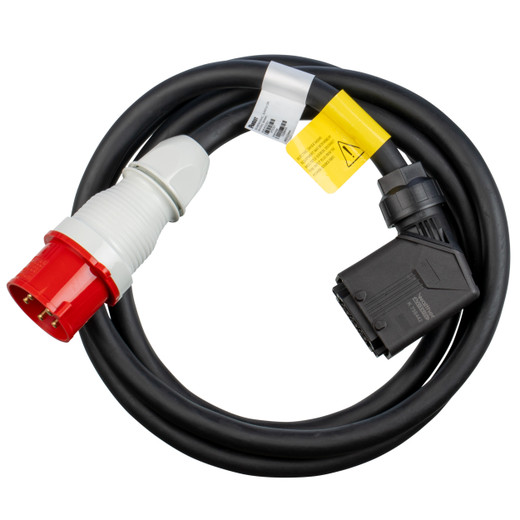

Panduit UPDUCRD6 Universal PDU Power Cord

The Panduit UPDUCRD6 is a 10-foot industrial-grade power cord engineered for reliable three-phase power delivery in commercial rack installations. Designed to connect Panduit G5 Universal PDU (uPDU) chassis to facility power via IEC 60309 3P+N+E 6h connectors, this cord set supports 20A loads in dusty or damp environments with IP44-rated ingress protection. Built for IT datacenters, server rooms, and high-density surveillance NVR deployments where clean three-phase distribution is critical.

Key Features

Universal connector mates directly with Panduit G5 uPDU chassis—no adapters required

IEC 60309 3P+N+E 6h facility plug delivers 20A three-phase power with neutral and ground

IP44 ingress protection rated for dusty, damp, or industrial environments

10-foot (3-meter) length provides flexible routing from rack to wall or floor-mounted facility outlet

6-hour clock position keying prevents mis-mating with incompatible voltage or phase configurations

Black jacket for professional appearance in exposed-rack or open-ceiling installs

The IEC 60309 standard defines a family of industrial connectors used worldwide for high-current, multi-phase applications. The 3P+N+E designation indicates three live phase conductors, one neutral, and one protective earth (ground). The "6h" clock position refers to the keying orientation of the earth pin—positioned at the 6 o'clock slot when the connector face is viewed as a clock. This mechanical keying prevents accidental connection to outlets wired for different voltages, frequencies, or phase counts. In North American datacenters, IEC 60309 6h plugs typically indicate 208V or 240V three-phase circuits, commonly fed from a 30A or 60A facility breaker stepped down to 20A at the PDU. The IP44 rating certifies the plug housing is protected against solid objects greater than 1mm and water splashing from any direction—making it suitable for equipment rooms with overhead fire-suppression sprinklers, humid coastal climates, or light industrial spaces where dust ingress is a concern.

Panduit's G5 Universal PDU platform centralizes power distribution for rack-mounted network switches, IP camera NVRs, access control panels, PoE injectors, and edge compute servers. By standardizing on a single universal inlet connector, installers can swap cord sets in the field to match site power without replacing the entire PDU. A typical deployment might involve mounting the G5 uPDU vertically in a 42U open-frame rack, landing the UPDUCRD6 cord to a wall-mounted IEC 60309 receptacle wired to a 208V three-phase branch circuit, then distributing 120V or 208V outlets downstream to individual devices. The 10-foot cord length accommodates racks positioned several feet from the facility outlet, reduces strain on the inlet connector, and allows the cord to route cleanly through cable trays or overhead J-hooks. For installations requiring longer runs, consult facility electricians about extending the branch circuit closer to the rack or using Panduit's longer cord-set SKUs.

Compliance with IEC 60309 ensures global interoperability—spec-equivalent plugs and receptacles are manufactured by Hubbell, Mennekes, and Legrand, among others, though mixing brands on a single connection is not recommended due to minor contact-geometry variations. Panduit's universal PDU ecosystem simplifies inventory for integrators managing multi-site deployments across regions with different facility power standards. Unlike proprietary locking connectors or NEMA twist-locks, IEC 60309 6h plugs are field-serviceable, color-coded (blue jacket for 200-250V), and available from electrical distributors worldwide—reducing downtime when a replacement cord is needed on short notice.
