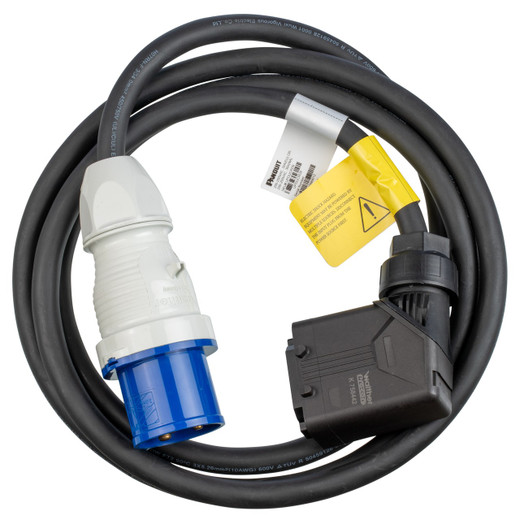

Panduit UPDUCRD8 10ft uPDU Power Cord
The Panduit UPDUCRD8 is a 10-foot (3-meter) power cord engineered specifically for Panduit's G5 Universal PDU (uPDU) platform, featuring a Universal chassis connector on one end and an IEC 60309 2P+E 6h 20A (IP44) industrial plug on the facility side. This cord set bridges the gap between modular PDU systems and hardened facility power infrastructure, delivering 20-amp rated power in environments where standard NEMA or IEC C13/C19 connectors fall short on current capacity or environmental protection. Built for datacenter, industrial control, and high-density rack deployments where power integrity and connector durability are non-negotiable.
Key Features
- IEC 60309 2P+E 6h 20A Industrial Connector: Two-pole plus earth configuration with keyed 6 o'clock ground position prevents mis-mating and ensures phase-correct connections across international 230V single-phase circuits
- IP44 Environmental Rating: Splash-proof and dust-protected enclosure on the facility plug safeguards connections in semi-exposed or high-airflow environments where moisture ingress or particulate contamination is a risk
- Universal PDU Chassis Compatibility: Terminates in Panduit's Universal connector format, allowing hot-swappable cord replacement or voltage reconfiguration without replacing the entire PDU chassis
- 20-Amp Continuous Current Rating: Sized for branch circuits feeding multiple rack-mount devices, network switches, or high-wattage security NVRs without derating or thermal concerns
- 10-Foot Working Length: Provides routing flexibility between floor-mounted power distribution panels and overhead or mid-rack PDU mounts while minimizing excess slack that complicates cable management
- Factory-Terminated & Tested: Pre-assembled with strain relief and dielectric testing eliminates field termination errors and speeds deployment
The IEC 60309 connector family was developed for industrial and commercial power distribution where NEMA twist-locks and standard IEC 60320 appliance inlets can't meet the current, voltage, or environmental demands. The 2P+E 6h variant designates a single-phase 200–250V circuit with the ground pin positioned at 6 o'clock, physically preventing insertion into incompatible 3P+E (three-phase) or higher-voltage receptacles. The IP44 shroud adds a weather-resistant boot and latching collar that locks onto the facility receptacle, resisting accidental disconnection from vibration or cable tension—critical in environments with heavy foot traffic, frequent rack servicing, or seismic activity. For datacenter operators running European or international 230V infrastructure, or industrial facilities with IEC 60309-standardized distribution panels, this cord eliminates the need for plug adapters or field-modified cables that introduce failure points and void warranties.
Panduit's Universal PDU architecture decouples the power input cord from the outlet strip chassis, allowing facilities to stock a single PDU model and swap cords to match local power standards—NEMA L6-20, IEC 60309, or hardwired terminal blocks. In practice, this means faster deployments across multi-site rollouts, reduced SKU sprawl in inventory, and the ability to repurpose PDUs when racks migrate between buildings or data halls with different utility feeds. The 10-foot length strikes a balance for typical raised-floor or overhead ladder-rack installations: long enough to reach a floor-mounted whip or in-row power panel without daisy-chaining extension cords, yet short enough to avoid coiling excess cable that blocks airflow or creates trip hazards. For security integrators provisioning NVR racks, video wall controllers, or PoE switch stacks where clean power routing and spare capacity for future expansion are baseline requirements, this cord set integrates into the same Panduit ecosystem as cable trays, vertical managers, and grounding kits.
The UPDUCRD8 ships as a standalone component, individually packaged for add-on purchases or replacement after voltage migrations. It carries UL and cUL recognition for use in North American installations, and the IEC 60309 plug adheres to international standards widely adopted in European, APAC, and LATAM datacenters. When paired with Panduit's monitored or switched uPDU models, this cord delivers the first link in a traceable power chain—from utility service entrance to rack outlet—where every connection point is rated, documented, and built to outlast the IT equipment it powers. For mission-critical deployments where an unplanned power interruption triggers failover costs, SLA penalties, or operational downtime, choosing factory-built cord sets over field-assembled alternatives is the difference between predictable infrastructure and preventable failure.
