Panduit UPDUCRD7 30A L6-30P 10ft PDU Power Cord

Panduit UPDUCRD7 Universal PDU Power Cord — L6-30P 30A 10ft

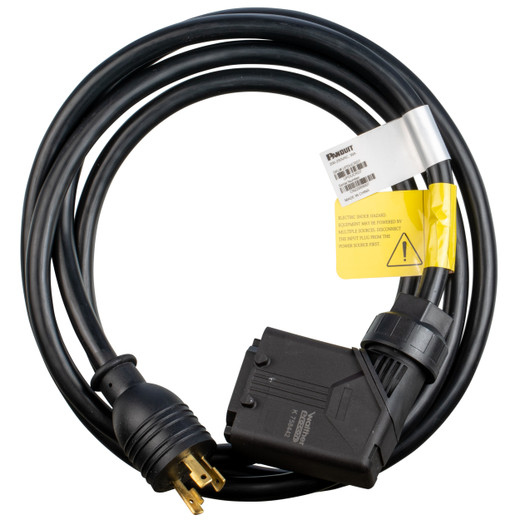

The Panduit UPDUCRD7 is a 30-amp power cord engineered specifically for G5 Universal PDU chassis installations in datacenter and critical infrastructure environments. This 10-foot (3-meter) cord set bridges facility power to Panduit's modular uPDU platform via a universal chassis connector on one end and a NEMA L6-30P twist-lock plug on the other. Unlike generic power whips, this cord is factory-terminated and tested to Panduit's standards for high-density rack power distribution, eliminating field termination errors and ensuring reliable connection integrity under continuous load.

Key Features

• 30A continuous current capacity supports full-load operation of enterprise-class PDU circuits without derating
• NEMA L6-30P twist-lock facility plug prevents accidental disconnection during rack service or cable management work
• Universal uPDU chassis connector integrates with Panduit G5 PDU platform for hot-swappable cord replacement without downtime
• 10-foot length provides routing flexibility in standard 42U racks with overhead or under-floor power distribution
• Factory-terminated ends eliminate field wiring errors and ensure consistent contact resistance across installations
• Black jacket blends with standard datacenter cable management systems and maintains professional appearance

The UPDUCRD7 cord set is built around Panduit's G5 Universal PDU architecture, which separates the intelligent monitoring chassis from the facility power connection. This modularity lets you swap input cords without replacing the entire PDU — critical when upgrading facility circuits from 208V to 240V delta configs, or when retrofitting older installations with modern locking connectors. The universal chassis-side connector is keyed to prevent reverse insertion and rated IP20 for dust protection in controlled environments. The L6-30P facility plug uses a NEMA twist-lock design (two poles, three wires, 250V) that requires a quarter-turn to fully seat and lock, preventing pullout from vibration or accidental contact during adjacent rack work.

Datacenter power design typically provisions 80% continuous load on branch circuits, meaning a 30A breaker safely supports ~24A of sustained draw. The UPDUCRD7's 30A rating allows full utilization of that 24A capacity with headroom for inrush during server boot sequences or compressor startup in in-row cooling. This matters when provisioning high-density compute racks drawing 15–20kW per cabinet — you need every available amp. The 10-foot cord length is dimensioned for typical raised-floor datacenters where power whips drop from overhead cable tray or rise through floor cutouts 6–8 feet from the rack PDU mounting position. For installations requiring longer runs, Panduit offers the same cord set in 15-foot and 20-foot variants (separate SKUs), but shorter cords reduce voltage drop and simplify cable management in tight spaces.

The G5 uPDU platform this cord serves supports field-swappable input cords, output modules, and monitoring cards without taking the PDU offline — provided you've installed redundant PDUs per best practice. During a cord swap, the redundant PDU carries the load while you unlock the chassis connector, pull the old cord, and insert the replacement. This capability is invaluable when facility power upgrades force plug type changes (common when moving from older NEMA L6-20 circuits to modern L6-30 or CS8265 high-density configs), or when relocating racks to different rows served by different circuit types. The alternative — replacing entire PDUs — wastes installed monitoring infrastructure and requires re-addressing network connections if you're using Panduit's iPDU intelligent monitoring.

Installation is straightforward: mate the universal connector to the rear of the uPDU chassis until the locking tab clicks, dress the cord through vertical or horizontal cable managers per TIA-942 structured cabling standards, and twist-lock the L6-30P plug into the facility receptacle. Verify lock engagement by attempting to pull the plug without counter-rotating — it should not release. For installations under continuous high load, inspect the L6-30P connection quarterly for discoloration or warmth indicating poor contact; twist-lock plugs can loosen over time from thermal cycling, and a partially-seated plug will arc and fail. The universal chassis connector uses a compression contact design that maintains constant pressure regardless of thermal expansion, reducing this failure mode on the PDU side.

This cord set is UL listed and complies with NEC Article 645 for information technology equipment installations. The black jacket is rated for 105°C operation, appropriate for hot-aisle containment and raised-floor environments where ambient temps may exceed ASHRAE's 27°C recommended maximum during cooling failures. Panduit provides this cord as a replacement component for existing G5 uPDU deployments and as a spare for new installations specifying different input voltages or plug types than the default factory cord. When ordering new uPDUs, confirm which input cord ships standard with your chosen model — some chassis include the cord, others require separate purchase to match your facility's circuit configuration.
