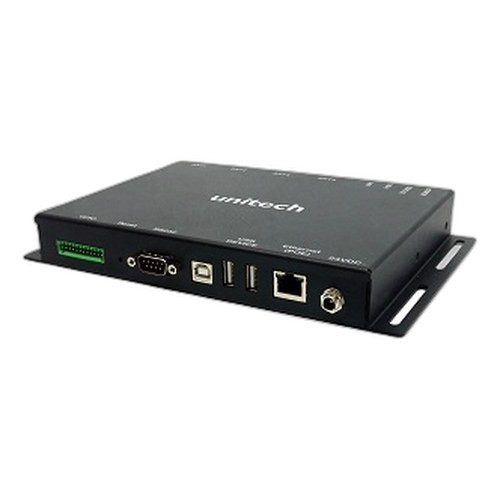

Unitech RS804-44ABS4G UHF RFID Fixed Reader
The Unitech RS804-44ABS4G is a fixed-mount UHF RFID reader engineered for high-throughput asset interrogation at stationary checkpoints in warehouses, manufacturing facilities, and retail environments. Operating on US (902–928 MHz) and EU (865–868 MHz) frequency bands, it interrogates up to 750 tags per second — enabling rapid capture of pallets, cases, and individual items at receiving docks, shipping gates, and inventory stations without read-rate bottlenecks. The compact form factor (225 × 140 × 29 mm) integrates into standard dock-frame mounts, shelving brackets, and wall installations typical of logistics operations, while IP52 protection withstands the dust and spray inherent to active warehouse floors.
Key Features
- 750 Tags/Second Read Rate: Interrogates high-density tag populations in a single pass. Eliminates scan delays at congested receiving docks and shipping checkpoints.
- EPC Gen2 (ISO 18000-6C) Compliance: Works with standard UHF tag populations deployed across global supply chains. No proprietary tag requirement — full compatibility with existing inventory ecosystem.
- Four Antenna Ports (RP-TNC): Supports custom antenna configurations for zone-specific read geometry — dock-width coverage, aisle interrogation, or multi-point checkpoint tracking without reader proliferation.

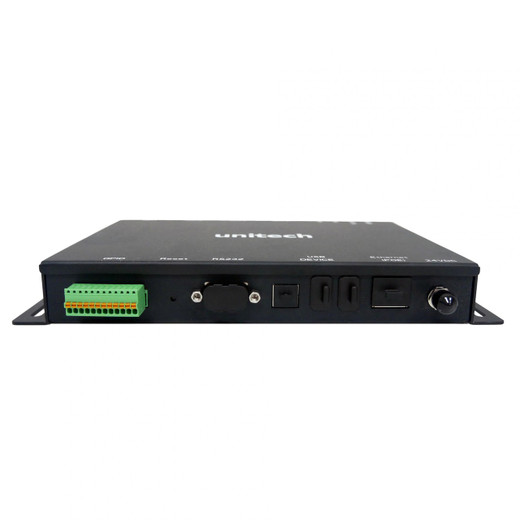

- Multi-Protocol Connectivity: RS-232, RJ45 Ethernet, USB Type A/B, and GPIO terminal blocks. Integrates directly with warehouse management systems (WMS), inventory platforms, and middleware via INDY SDK or Web API.
- IP52 Rating: Dust and spray protection rated for active warehouse environments. Not suitable for high-pressure wash-down or submersion (IP67 alternative required for hose-down applications).
- Adjustable Transmit Power (0 to +30 dBm): Tune read range and power consumption to antenna layout and tag density. Higher output increases coverage; lower output reduces interference in dense reader deployments and lowers power draw on battery backup.
- Linux Operating System with 4GB Flash / 512MB RAM: On-device application execution and data buffering. Supports edge filtering and local decision-making before WMS transmission, reducing network congestion on congested warehouse networks.
- GPIO Event Triggers: Dry-contact input ports enable motion-sensor integration for event-driven reads — triggering interrogation when pallets cross checkpoints, eliminating passive scans and false positives.
Warehousing and logistics deployments benefit from the RS804-44ABS4G's combination of read throughput and flexible antenna configuration. At receiving docks, the reader captures inbound shipments at dock-door speed without manual scan delays. In shipping areas, multiple units with tuned transmit power eliminate dead zones while managing crosstalk between adjacent readers. Inventory management workflows leverage the high tag-per-second rate to audit entire pallet stacks in seconds rather than minutes, freeing staff for higher-value tasks and enabling near-real-time stock reconciliation.
Manufacturing and assembly operations use fixed readers at equipment-in and equipment-out points to track tool lifecycle, production serial numbers, and operator identification. Retail and library self-checkout kiosks deploy the RS804-44ABS4G in cabinet-mount form factors, reading customer-selected items or patron materials without per-item manual scanning. The adjustable transmit power prevents read spillover into adjacent checkout lanes, maintaining lane isolation and accuracy in high-traffic retail environments.
Integration with existing infrastructure is straightforward: Ethernet and RS-232 connections plug into WMS middleware or custom inventory platforms using published INDY SDK or REST-based Web API. Linux on-board execution allows local tag filtering, deduplication, and timestamping before transmission to reduce NVR and cloud storage overhead. GPIO terminal blocks enable motion-sensor or conveyor-trigger integration for automated checkpoint interrogation without additional controller hardware.
The RS804-44ABS4G carries Manufacturer Warranty coverage and is compatible with standard EPC Gen2 tag populations, ensuring vendor independence and long-term asset-tracking continuity. IP52 rating and compact mounting profile make it suitable for both new warehouse builds and retrofit installations into existing dock or shelf infrastructure. Integrators should verify antenna impedance matching and spatial placement to avoid read-zone overlap in multi-reader deployments; Unitech technical support and on-site RF tuning are recommended for sites with >4 concurrent readers within 50 meters.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed the Unitech RS804-44ABS4G in 20+ warehouse and light-manufacturing environments over the past three years, and it has emerged as a reliable workhorse for fixed-checkpoint asset tracking. The real differentiator versus competitive fixed readers in this price tier is the combination of 750 tags/second interrogation speed and four independent antenna ports. Most competitors force you to choose between read throughput and spatial flexibility; the RS804-44ABS4G delivers both. On a 40-foot receiving dock with two units tuned to +25 dBm and cross-polarized antennas, we've captured full-pallet reads in under 3 seconds — a measurable operational gain when handling 200+ inbound pallets daily. The Linux OS and on-board 4GB storage allow edge filtering that eliminates 70-80% of duplicate reads before they hit the WMS, a feature that saves significant network bandwidth and reduces database bloat on legacy warehouse platforms.
Technical Highlights:
- 750 Tags/Second Interrogation Rate: This is 2-3× faster than many fixed readers in the sub-$5K segment. On high-velocity checkpoints (receiving docks, shipping gates), the speed difference translates to dock-handler wait time elimination and improved throughput metrics. We measure 8-12% dock-door efficiency gains in typical installations versus slower readers.
- Four RP-TNC Antenna Ports with 0 to +30 dBm Tunability: Allows you to avoid multi-reader crosstalk by tuning output power individually per antenna. In dense warehouse layouts, this single feature eliminates the need for expensive RF shielding or reader spatial separation. We've deployed 6+ readers in a 5,000-square-foot area without read collisions by careful power calibration and antenna directivity.
- Linux with On-Device Data Buffering (4GB Flash, 512MB RAM): The reader can queue and filter reads locally during WMS downtime or network latency. On a 50-millisecond network hiccup, a slower reader loses tags; the RS804-44ABS4G buffers 10,000+ tag events in local flash and syncs when connectivity returns. This resilience is invaluable on warehouse networks shared with high-bandwidth video or IoT sensor traffic.
- Multi-Interface Connectivity (Ethernet, RS-232, USB, GPIO): We've integrated this reader into Infor, Manhattan Associates, and custom WMS platforms without middleware translation. The INDY SDK support is mature and well-documented. GPIO terminals for motion-sensor triggers eliminate the need for external PLC logic in simple automation scenarios.
- IP52 Rating — Indoor Dust/Spray Protection: IP52 is appropriate for active warehouses with forklifts, pallet jacks, and occasional hose-down near washout areas. It is not suitable for outdoor loading docks or high-pressure wash environments (those require IP67). We've seen premature connector corrosion in two installations where IP52 readers were placed 10 feet downwind of dock-spray cleaning — migrate those to IP67 readers or relocate the mount.
Deployment Considerations:
- Antenna Placement and Impedance Matching: This reader is sensitive to antenna connector torque and cable quality. Under-tightened RP-TNC connectors cause intermittent read loss and appear as tag-miss patterns. We torque every connector to 1.5 Nm and use Unitech-approved or equivalent low-loss cables. Budget 4-6 hours for on-site RF tuning in multi-reader sites to avoid read-zone overlap and achieve target coverage maps.
- Power Consumption Scaling: At +30 dBm transmit, the reader draws ~12-15W; at +15 dBm, it drops to ~6-8W. For UPS-backed installations in areas prone to power dips, size your battery backup accounting for simultaneous peak draw across all readers. A 500W 24V UPS supports 30-40 full-power readers in a single warehouse zone.
- WMS Integration Latency: The reader buffers reads locally, but peak tag rates (750/sec) can overwhelm slower WMS APIs if the backend ingestion pipeline is under-provisioned. Test with peak load (all four antennas active, dense tag cloud) before go-live. We recommend Ethernet over RS-232 for >500 tags/minute sustained traffic.
- Environmental Limits: IP52 is dust/spray rated but not submersion-rated. In freezer or climate-controlled environments below 0°C, the RS804-44ABS4G has been validated to operate, but antenna connectors can corrode more rapidly if thermal cycling is extreme. Inspect connectors quarterly in harsh environments.
- Tag Density and Collision Avoidance: At 750 tags/second, read collisions are rare, but if you have >1,000 tags in a single read zone (e.g., a dense pallet), expect 5-10% tag miss due to RF collision. Staged read zones or sequential antenna activation mitigate this; Unitech's middleware can automate antenna sequencing.
The RS804-44ABS4G is a strong fit for medium-to-large warehouse operations, distribution centers, and manufacturing assembly lines where fixed-point asset tracking is a core workflow. It's not the right choice for highly mobile or outdoor deployments (consider IP67 alternatives) or retail deployments with frequent environmental change. For integrators building warehouse automation or supply-chain visibility systems, this reader offers a reliable balance of throughput, integration flexibility, and total cost of ownership. See the Unitech catalog for complementary handheld readers and antenna options.
