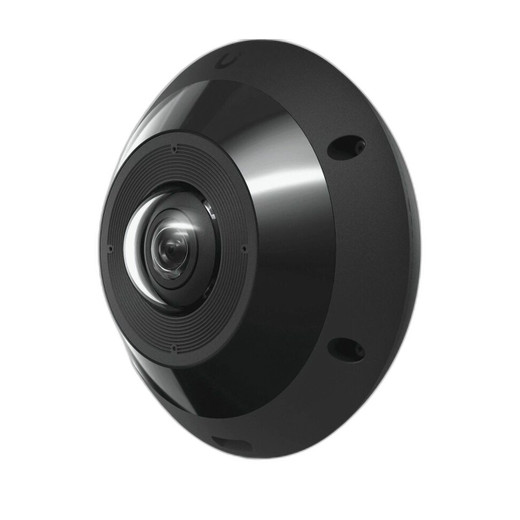

Ubiquiti UVC-G6-PRO-360-B 12MP Fisheye PoE Camera
The Ubiquiti UVC-G6-PRO-360-B is a compact 12MP fisheye camera designed for UniFi Protect deployments requiring wide fixed-lens coverage in indoor and sheltered outdoor locations. The 360-degree fisheye optic eliminates blind spots in entryways, retail floors, and lobby spaces while drawing power from standard PoE 802.3af, simplifying wiring in confined areas where dedicated power runs are impractical. Built-in IR night vision extends coverage into darkness without supplementary lighting. Direct integration into the UniFi Protect ecosystem — Dream Machine SE/Pro, UniFi Protect NVR, or cloud deployments — means the camera streams, records, and responds to motion alerts through native UniFi interfaces with zero third-party middleware.
Key Features
- 12MP Fisheye Resolution: Captures wide panoramic scenes at high detail density. Fisheye geometry provides edge-to-edge coverage suitable for retail and lobby applications where a single camera replaces 2–3 conventional fixed-perspective units.
- IR Night Vision: Integrated infrared LEDs enable 24/7 monitoring through darkness without external lighting infrastructure. Low-light performance is sufficient for interior spaces and covered entryways.
- PoE 802.3af Powered: Standard 13W PoE draw — works with any 802.3af switch or injector. Eliminates dedicated power conduit in tight installation environments.
- Compact Turret Form Factor: 1.3 lb weight and minimal footprint fit ceiling or wall mounts in space-constrained locations such as retail kiosks, office atriums, and vehicle access gates.
- UniFi Protect Native Integration: Direct connection to Dream Machine SE, Dream Machine Pro, UniFi Protect NVR, or cloud console. No ONVIF middleware required — camera announces itself to the UniFi network automatically.
- Fixed Lens, No Pan-Tilt: Stationary wide-angle optic. No motor wear, no moving parts to fail. Digital zoom available in UniFi Protect client software for forensic detail work.
- Indoor and Sheltered Outdoor Rating: Rated for interior spaces and covered outdoor environments. Not engineered for direct rain exposure or extreme temperature swings.
The UVC-G6-PRO-360-B addresses the coverage-density challenge in small-to-medium spaces. A 12MP fisheye delivers evidence-grade resolution across 360 degrees; deploying a conventional 4MP narrow-perspective camera in the same location would sacrifice either coverage breadth or image detail. For retail loss-prevention teams or facility managers monitoring traffic patterns in lobbies, the trade-off favors the fisheye: wide situational awareness combined with sufficient detail for face recognition and license-plate work during post-incident investigation.
The camera integrates exclusively within UniFi Protect infrastructure. It will not stream to third-party VMS platforms (Genetec, Milestone, Avigilon) via ONVIF or RTSP — all playback, motion detection, and remote access flows through Ubiquiti's native client software (web, mobile, or desktop). This constraint simplifies deployment for single-vendor UniFi-standardized sites but locks the camera into Ubiquiti's ecosystem for its operational lifetime. Migration to a non-Ubiquiti NVR later requires replacing the entire camera, not just the recording backend.
Power and mounting logistics are straightforward. The 802.3af draw (typically under 10W in normal operation, peak ~13W during IR boost) eliminates the need for PoE+ infrastructure; any modern managed or smart switch will deliver 13W per port. Ceiling installation is the norm — mount horizontally to maximize the fisheye coverage plane. Avoid ceiling cavities with structural obstacles (HVAC ducts, cross-beams, recessed speakers) that block the panoramic view. Sheltered outdoor use is permissible — eaves, covered walkways, parking structure soffits — but not open-air rain exposure or direct sunlight for sustained periods.
Ubiquiti includes a Manufacturer Warranty covering defects. The camera is manufactured in China and sourced through Ubiquiti's standard channel. It is compatible with UniFi Protect on Dream Machine SE/Pro (all current firmware revisions), UniFi Protect NVR (CloudKey/UDM-SE), and UniFi Cloud Console for cloud-centric deployments. Verify firmware alignment before installation — legacy UniFi Video systems (non-Protect branch) do not support this camera.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed the UVC-G6-PRO-360-B across retail chains, office atriums, and municipal buildings where UniFi Protect is the primary recording platform. The fisheye geometry is the core differentiator — it delivers situational awareness and identification detail in a single wide-angle shot that would otherwise require 2–3 narrow-perspective fixed cameras and corresponding NVR channels. The real-world advantage is installation speed and wiring cost: one RJ45 drop versus three, one mount point versus three, one camera license (if licensing applies) versus three. For small-to-medium footprints — retail lobbies under 2,000 sq ft, office entryways, parking-structure ramps — the UVC-G6-PRO-360-B is a high-density choice. For larger open spaces or outdoor perimeter work, the fisheye's edge distortion becomes a liability; a conventional PTZ or multi-camera array will deliver better forensic utility.
Technical Highlights:
- 12MP Fisheye Optic: 360-degree horizontal coverage from a single fixed-position camera. Digital pan-tilt-zoom within the UniFi Protect client allows operators to inspect specific quadrants post-incident without sacrificing panoramic context. The sensor density is high enough for face and plate recognition work across most retail and lobby use cases.
- PoE 802.3af (10-13W typical): No PoE+ switch required. Standard 13W injection works on any PoE sourcing infrastructure deployed after 2015. Reduces capex on switch upgrades for retrofit installations — a substantial advantage in older buildings where PoE+ is not yet deployed.
- IR Night Vision (integrated LEDs): Low-light operation is rated for interior darkness and covered outdoor environments. IR wash is effective to approximately 3-5 meters depending on ambient conditions. Not rated for long-range outdoor night surveillance — that use case demands dedicated thermal or higher-output IR cameras.
- Native UniFi Protect Integration: Camera auto-announces to the UniFi network. No manual ONVIF stream configuration or middleware. Firmware updates flow through the UniFi Protect console automatically. Operationally, this is seamless for UniFi-standardized sites; the trade-off is lock-in to Ubiquiti's platform.
- No Pan-Tilt-Zoom Motor: Stationary fixed lens means zero mechanical maintenance, no motor-bearing wear, no point-of-failure servicing. Operational cost over 5+ years is lower than a PTZ camera with comparable coverage.
Deployment Considerations:
- Fisheye geometry introduces barrel distortion at the edges — objects near the frame boundary appear curved and geometrically compressed. For forensic work requiring exact spatial measurement or architectural documentation, a conventional flat-perspective camera is more suitable. Use the UVC-G6-PRO-360-B for behavioral and identity work, not structural assessment.
- UniFi Protect lock-in is absolute. The camera will not stream to Genetec, Milestone, or Avigilon platforms. If your organization is multi-vendor or considers a future migration to a non-Ubiquiti platform, this camera commits you to Ubiquiti for the asset's lifetime. Confirm organizational VMS strategy before large-scale rollout.
- Sheltered outdoor only. Not IP67 or suitable for direct rain, snow accumulation, or sustained direct sunlight. Covered parking soffits, eaves, and indoor entryways are appropriate; open-air perimeter surveillance is not.
- Mount horizontally for full 360-degree coverage. Tilted or vertical orientation reduces the effective coverage plane and introduces blind spots. Ensure the mounting surface is stable and level.
- PoE 802.3af is sufficient but tight. Under sustained IR night-vision operation in a cold environment, power draw may approach 13W. If you are cascading many cameras on a single PoE switch port (unusual but possible with splitters), verify the switch can sustain 13W per port under simultaneous IR boost across multiple cameras.
The UVC-G6-PRO-360-B is the right fit for organizations running UniFi Protect as their primary surveillance platform and needing high-density wide-angle coverage in compact indoor or sheltered outdoor spaces. Retail chains, office environments, and small-to-medium government buildings derive substantial value from the density and simplicity. If your deployment spans multiple VMS vendors, or if you require outdoor perimeter surveillance, a conventional narrow-FOV or PTZ camera will be more suitable. For single-vendor UniFi sites, the fisheye's coverage advantage makes it a cost-effective core building block. Explore the complete Ubiquiti catalog for complementary narrow-perspective and outdoor camera options to round out your deployment.
