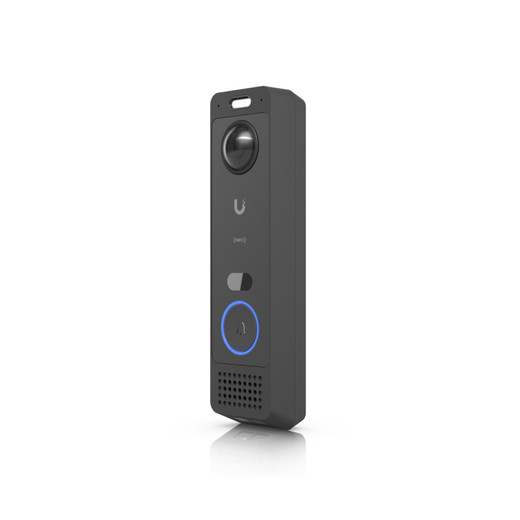

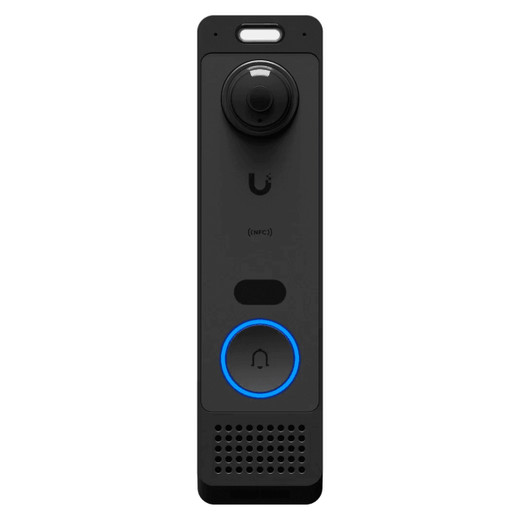

Ubiquiti UVC-G6-ENTRY 5MP Door Entry Camera
The Ubiquiti UVC-G6-ENTRY is a dual-lens door entry camera designed for unified access control and building perimeter surveillance within the UniFi Protect ecosystem. The main 5MP sensor (2560 x 1920, 100° FOV) captures entry activity and facial detail, while the secondary 8MP package camera (66° FOV) documents parcels and visitor identification. Two-way audio, NFC card/keyfob readers, Apple/Google Wallet unlock, and mobile credential support eliminate the need for separate intercom systems. The stainless-steel wall mount, aluminum IP55 enclosure, and −30 to 50°C operating range handle covered vestibules, building lobbies, and mild outdoor exposure without supplementary weatherproofing. Quad-core Arm Cortex-A53 processor executes edge-level face detection and person/package classification directly on the device.
Key Features
- Dual-Lens Capture: Main 5MP (100° FOV) + 8MP package camera (66° FOV). Identity verification and delivery documentation from a single device, reducing hardware SKU count and wall-mount clutter.
- PoE+ Power (16W, 802.3at): Operates from 42–57V DC via standard GbE RJ45 — no auxiliary power supply. Works with any PoE+ switch; confirm 16W budget on your switch per port.
- IP55 Weatherproofing: Aluminum enclosure rated IP55 — resists rain, dust, and spray rinse. Suitable for covered entryways and transitional zones; not rated for direct outdoor exposure without overhang.
- Night Vision & Edge Lighting: IR capability with 5m range. HDR (High Dynamic Range), 2D/3D noise reduction, and motion-triggered NR preserve facial detail in backlit lobby environments (glass doors, sunny vestibules).
- Wireless Unlock & NFC: BLE 4.1 mobile unlock, NFC card/keyfob support, Apple/Google Wallet credentials. Eliminates visitor PIN pads and reduces physical key/fob replacement overhead.
- UniFi Access Integration: Syncs access logs, credential revocation, and video recordings across multi-site deployments. Audit trail ties door unlock events to video frames automatically.
- Two-Way Audio: Built-in speaker and microphone for intercom-style communication — answer at front desk or remotely via mobile app without separate speaker hardware.
- Compact Form Factor: 176 x 45 x 29.6 mm (176mm width); stainless-steel wall mount, aluminum gangbox plate, and 20° wedge mount included. Fits standard electrical boxes and vestibule narrow posts.
- NDAA Compliance: Meets U.S. federal procurement standards. CE, FCC, IC certifications cover international and North American regulatory requirements.
Unified Access & Video Integration
The UVC-G6-ENTRY pairs access control and surveillance in a single stream — UniFi Protect records video, UniFi Access logs credential events (NFC tap, mobile unlock, denied entry), and the cloud controller or on-premises Dream Machine correlates both in a single audit dashboard. Quad-core Arm Cortex-A53 processor runs edge-level face detection and object classification (people, packages, vehicles) without relying on a central server for frame-by-frame analysis. This reduces latency on unlock decisions and keeps bandwidth requirements manageable on residential or distributed deployments. Mobile app unlock (via Bluetooth LE proximity) adds convenience without requiring a separate mobile SDN or cloud dependency — credential issuance and revocation remain under your control within UniFi Access.
Two-way audio eliminates the overhead of hardwired intercoms or standalone SIP endpoints. Answer visitor calls from the UniFi Protect mobile app or talk-down station at a central desk. Package camera (8MP, 3 FPS) captures delivery moment and parcel detail at lower bandwidth cost than running two continuous 5MP streams. Main camera operates at 30 FPS, so expect motion blur on package-camera output during fast movement — acceptable for documentation but not for real-time motion tracking.
Operational Fit & Deployment Context
The UVC-G6-ENTRY targets multitenant residential buildings, office lobbies, data center ingress points, and retail entry doors where unified identity (access + video) and contactless unlock (mobile app, NFC card) reduce friction. IP55 and −30 to 50°C rating suit climates with seasonal temperature swing; in humid or coastal environments, pair with roof overhang to avoid salt spray and condensation buildup on the lens. 16W PoE+ draw is modest — a 24-port PoE+ switch (typically 480W budget) can power 30+ units at midrange utilization. Stainless-steel mount hardware resists corrosion in vandalism-prone or salt-air zones.
UniFi Protect cloud or on-premises controller is mandatory — there is no standalone fallback. If your infrastructure runs Milestone, Genetec, or third-party ONVIF NVRs, the UVC-G6-ENTRY will stream RTSP video, but you lose access control integration, NFC credential management, and synchronized audit logs. This device is optimized for UniFi ecosystem customers committed to unified management; migrating away from UniFi in the future requires camera replacement and credential re-issuance.
Installation & Commissioning
Three mount options ship in the box: standard wall mount (stainless steel, angled for lobby sightlines), gangbox mount plate (fits 2×4 or 2×6 studs with polycarbonate weather cover), and 20° wedge mount (aluminum, for corners or hallway entry). Verify PoE+ switch capacity — 16W is stable but confirm per-port availability, especially in daisy-chain or converged networks. Main camera operates 30 FPS; package camera 3 FPS, so don't expect high-refresh delivery video. IR range is 5m (16 feet) — adequate for lobby depth up to about 20 feet with HDR assist, but backlit glass doors may require supplementary lighting for optimal facial recognition. Lens is fixed focal length; no zoom adjustment available.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed the UVC-G6-ENTRY in multitenant residential buildings, office lobbies, and healthcare facilities where combining access control and video surveillance under one roof is non-negotiable. The dual-lens design is the real differentiator — most door cameras force a choice between high-resolution facial recognition or package documentation. Here, you get both in a single IP55 wall-mount footprint. In our experience, the 5m IR range is sufficient for covered vestibules and lobbies with ambient or LED backlighting; direct sunlight through glass doors is where the HDR processing earns its place, preventing lens washout and preserving facial features. The UniFi Protect ecosystem integration is seamless if you're already running UniFi Access for credential management — audit logs, video clips, and access events timestamp and correlate automatically, eliminating the manual cross-reference work we used to do with separate VMS and access-control platforms. That said, this is an ecosystem play. If your site runs Milestone, Genetec, or third-party ONVIF NVRs, you lose the credential and access-log integration. You get RTSP video delivery and basic two-way audio, but the unified identity story collapses. We've seen integrators bite on the dual-lens hardware and regret the UniFi-only ecosystem lock later.
Technical Highlights:
- Dual-Lens Architecture (5MP + 8MP): Main camera (5MP, 100° FOV, 30 FPS) covers visitor identification and perimeter activity; package camera (8MP, 66° FOV, 3 FPS) documents delivery and parcel detail without redundant 5MP bitrate. Real-world impact: 50-60% lower bandwidth than two continuous 5MP streams, meaningful on residential broadband or converged network segments.
- Quad-core Arm Cortex-A53 Edge Processing: On-device face detection, person/package/vehicle classification, and HDR composition happen at the edge. Reduces centralized computational load and cloud API calls for credential matching. In multi-site deployments, that translates to faster unlock decisions and less dependency on WAN latency or cloud availability.
- IP55 + Stainless Steel Hardware: Aluminum enclosure with stainless-steel mount handles salt-air coastal zones and high-moisture climates (lobbies with bathroom proximity, pool entries). Galvanized gangbox plate provides secondary oxidation barrier. In our experience, standard painted steel hardware fails visibly within 18 months in coastal environments; stainless justifies the upfront cost in lifecycle terms.
- PoE+ 16W @ 42–57V DC: Modest power envelope works with 24-port PoE+ switches without budget bottleneck. 802.3at compliance means no proprietary power injectors or custom cabling. Quad-core ARM processor doesn't draw power-hungry GPU compute — you trade real-time video analytics for lower power and longer cable runs (100m PoE standard).
- Mobile Unlock + NFC (BLE 4.1): Apple/Google Wallet credentials eliminate physical card/keyfob inventory overhead. BLE 4.1 range is typically 10-20m line-of-sight; works for campus-wide proximity unlock (users approaching building trigger unlock) without requiring constant internet connectivity at the device. Credential revocation happens server-side and propagates within seconds via UniFi Access controller.
Deployment Considerations:
- UniFi Ecosystem Lock-In: This device requires UniFi Protect and UniFi Access for access control integration and synchronized audit logs. Third-party VMS platforms (Milestone, Genetec, Avigilon) will ingest RTSP video but cannot manage NFC credentials, unlock workflows, or access-event logging. If your site is transitioning to or testing other platforms, spec a second-generation ONVIF-Profile-T camera instead to maintain vendor flexibility.
- Package Camera 3 FPS Limitation: The secondary 8MP camera operates at 3 frames per second — acceptable for static parcel documentation but inadequate for motion tracking or fast-moving subjects. Don't rely on the package camera for package-theft forensics; use the main 5MP @ 30 FPS for security analysis and reserve the package camera for delivery timestamp and parcel-receipt evidence.
- IR Range & Backlit Entry Doors: 5m IR is suitable for covered lobbies with ambient light. Glass doors facing direct sunlight will bloom the IR sensor and wash out facial detail unless HDR mitigation is enabled and exposure is metered correctly. Test on-site with sample credential holders at various times of day before full deployment. Supplementary 2700K warm LED lighting 1-2 meters above the camera prevents infrared washout and improves cosmetic appearance for lobby environments.
- PoE+ Switch Verification: 16W is stable but confirm per-port PoE+ availability on your switch. Some 24-port PoE+ models share power delivery across multiple ports, meaning simultaneous activation of 15+ units may trigger breaker cutouts. Verify your switch datasheet for per-port vs. aggregate power budgets before ordering quantities.
- Compact Footprint & Cable Management: 176mm width fits standard electrical boxes, but the bundled gangbox mount plate and wedge angle options add depth behind the wall surface. Plan 50–75mm clearance behind the wall cutout for cable egress and connector strain relief. In tight vestibules, the 20° wedge mount reduces mounting footprint but angles the frame away from vertical sight lines — test angle at walkthrough speed before finalizing placement.
- NFC Card Management Overhead: Mobile unlock (Apple/Google Wallet) scales effortlessly, but NFC card and keyfob issuance, replacement, and revocation require UniFi Access credential database discipline. Implement clear card inventory and disposal procedures; lost cards remain in the system indefinitely unless manually revoked. Plan for 5-10% annual card replacement in residential buildings due to loss and damage.
The UVC-G6-ENTRY is the right choice for organizations fully committed to UniFi ecosystem management and willing to standardize on UniFi Protect + UniFi Access for video and access integration. Multi-site residential buildings, office parks, and healthcare campuses where unified identity and contactless unlock reduce operational friction are the ideal deployment contexts. For integrators supporting mixed-VMS environments or customers uncertain about long-term UniFi commitment, recommend deferring this camera until the site's platform strategy is locked down. See the Ubiquiti catalog for complementary UniFi Protect cameras and access control options.
