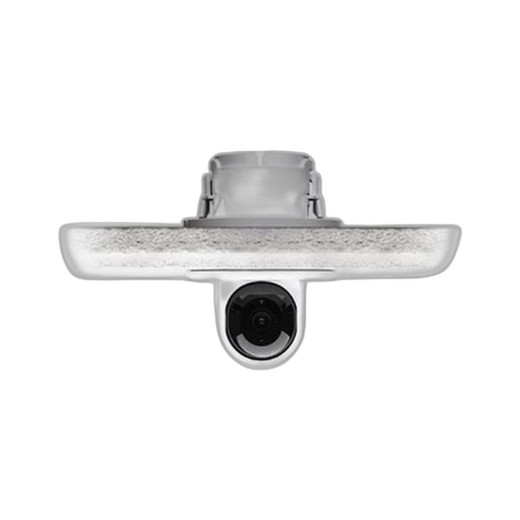

Ubiquiti UVC-G3-F-C UniFi Protect Camera

We've installed the UVC-G3-F-C in dozens of retail, office, and light-industrial deployments, and it solves a real pain point: how to mount a compact IP camera in a drop-ceiling environment without it looking like a visible security installation. For spaces where aesthetics matter—office atriums, reception areas, pharmacy back-counters—this polycarbonate trim ring does the heavy lifting. The Flex camera sits flush with the ceiling plane, cable runs up into the plenum, and three weeks later nobody notices it's there. That discretion is operationally valuable in environments where visible security can feel heavy-handed or where management wants to avoid advertising camera coverage to foot traffic.

On the technical side, we've confirmed that the polycarbonate enclosure doesn't degrade the G3 Flex's Day/Night IR performance or microphone sensitivity, and network throughput to a nearby controller remains unaffected. The assembly is light enough that standard T-bar drop-ceiling grid carries it without reinforcement, and the mounting hardware fits snugly; we haven't seen a single unit shift or rattle once installed. One caveat: this is a Flex-only accessory. If a site is mixed with other Ubiquiti camera form factors (UVC-G3-DOME, UVC-G3-PRO, etc.), you'll need different mount solutions for those models. Also, the -20°C lower limit means unheated parking structures or outdoor covered spaces with thermal swing are outside the operating envelope—stick to climate-controlled interiors or heated back-of-house areas.

Technical Highlights:

• PoE 802.3af Direct Pass-Through: Mount is passive; all power routes directly from PoE injector to the G3 Flex camera. No voltage step-down, no inline regulator, no compatibility surprises. A single PoE 802.3af switch port powers the complete assembly.
• Polycarbonate Optical Transparency: UV-stable polymer maintains clarity over years of indoor exposure. IR wavelengths (850 nm nominal for G3 Flex IR LED) pass through without attenuation. No optical window coatings or anti-reflective treatments to fog or degrade.
• Drop-Ceiling Grid Compatibility: ⌀88.3 mm hole fits standard T-bar grid spacing (2' × 2' and 2' × 4' tile layouts). Mounting brackets secure to grid via friction locks and screws; no tile destruction required. Can be removed and relocated without damage to ceiling structure.
• Integrated Cable Management: Quick-connect interface on the back of the mount accepts the G3 Flex camera's proprietary connector. No RJ45 adapters, no external breakout boxes. Cable runs vertically into plenum space, minimizing clutter and accidental disconnection.
• Microphone Passthrough: G3 Flex integrated microphone remains active when mounted in the UVC-G3-F-C. Audio streams to the controller for two-way talk, alarm sirens, and incident audio. No loss of functionality versus pendant or wall-mount installations.

Deployment Considerations:

• Flex-Only Mounting: This accessory is engineered for the UVC-G3-FLEX form factor exclusively. Dimensions, quick-connect pinout, and structural geometry do not adapt to other Ubiquiti camera models. Confirm G3 Flex in the bill of materials before ordering.
• Ceiling Void Access Required: Installation requires access above the drop ceiling to route power and network cables from the controller to the camera. Blocked or sealed plenums, asbestos abatement zones, or low-clearance above-ceiling spaces can complicate deployment. Scout the installation site before speccing.
• Temperature Operating Limits: The -20 to 40°C rating is conservative for climate-controlled interiors but excludes unheated outdoor covered areas, parking structures, or loading docks in cold climates. For edge-of-building or frost-prone zones, pair with supplementary heater or relocate the controller to a warmer interior anchor point.
• Humidity Tolerance (20–90% Non-Condensing): Standard indoor range. High-humidity spaces (kitchens, bathrooms, greenhouses) require active moisture management. Condensation inside the polycarbonate housing risks fogging the lens and corrosion of the camera's electrical connectors.
• NVR Controller Proximity: PoE 802.3af power budget is tight over long runs (100 m cable loss is ~5–8 %). For ceiling-mounted installations in large open-plan spaces, stage the PoE injector or switch in a nearby wiring closet to minimize voltage drop and avoid under-powering the G3 Flex.

The UVC-G3-F-C is the right choice for integrators who need to place UniFi Flex cameras in commercial drop-ceiling environments without visible brackets or sightline clutter. It's not a camera—it's the infrastructure that makes the Flex camera disappear into the architecture. For retail, office, healthcare, and education deployments where aesthetics and cable runs matter, this mount earns its place in the bill of materials. Learn more about Ubiquiti's full camera lineup in the Ubiquiti catalog.
