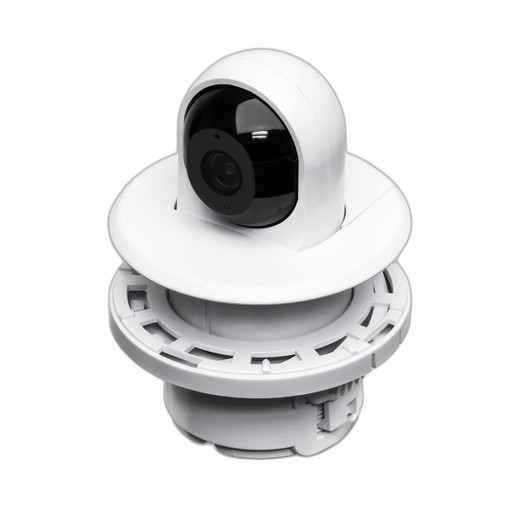

Ubiquiti UVC-G3-F-C-3 Ceiling Mount 3-Pack
The Ubiquiti UVC-G3-F-C-3 is a three-pack of ceiling mounts designed for UniFi Protect UVC-G3-FLEX cameras. Each mount enables discrete, flush-mount installation in drop-ceiling and hard-ceiling environments typical of offices, corridors, retail spaces, and hospitality deployments. The compact 3-inch form factor fits standard ceiling grids and minimizes visual footprint — a practical consideration when aesthetics matter as much as coverage in customer-facing areas. These mounts ship with fasteners and hardware for both suspended and solid-ceiling applications.
Key Features
- Discrete Ceiling Profile: 3-inch compact form factor designed to blend into standard drop-ceiling grids. Reduces visual clutter in customer-facing indoor spaces while maintaining full 2MP coverage.
- Drop-Ceiling & Solid-Mount Compatible: Accepts both T-bar grid suspension and direct hard-ceiling fastening. Hardware kit included for both mounting methods.
- G3 Flex Integration: Engineered exclusively for Ubiquiti UniFi Protect UVC-G3-FLEX cameras. Maintains the camera's microphone, infrared night vision, and PoE 802.3af power requirements without modification.
- Quick-Release Design: Tool-free camera removal simplifies maintenance, troubleshooting, and field replacements without unmounting the bracket itself.
- Minimal Cable Routing: Bracket geometry allows PoE cable to pass cleanly through drop-ceiling cavity, reducing visible runs and installation time.
- 3-Pack Economy: Per-unit cost reduction for multi-camera deployments (offices, chain retail, hospitality networks). Standardized mounting simplifies ongoing support.
This mount kit is engineered exclusively for the Ubiquiti UniFi Protect UVC-G3-FLEX camera line. Verify your camera model before ordering — these mounts are not compatible with other UniFi camera series, Flex-series alternatives, or third-party manufacturers. Installation requires the camera unit itself; the mounts provide only the physical anchor and fastening hardware.
Deployment across multi-camera indoor networks benefits from standardized mounting. Ceiling-mounted G3 Flex units with these brackets integrate directly into UniFi Protect management — all 24/7 video, night-vision telemetry, and motion-triggered alerts flow into the same cloud or on-premises controller. No additional VMS software or third-party integration needed. PoE 802.3af power draw (under 5W typical for the G3 Flex camera) remains well within standard switch budgets; confirm your switch or inline injector supports 802.3af before installation.
Environments with high humidity (kitchens, bathrooms, pools) or dust loads (warehouses, industrial settings) are better served by the outdoor-rated G3 Flex variants or sealed form factors. These mounts are rated for standard office/retail indoor conditions (0–40°C, <95% RH non-condensing). Cable routing through drop-ceiling cavities avoids water intrusion risk, but in damp basements or flood-prone areas, verify installation height and cable entry points against your site survey.
Ubiquiti UniFi Protect ecosystem provides native H.264 recording, event-based alerts, and basic analytics on-camera (motion, line crossing). Paired with a UniFi Dream Machine Pro or Protect console, these three ceiling-mounted G3 Flex units form a cohesive indoor monitoring backbone. Manufacturer Warranty covers the mount hardware; verify your camera's warranty status separately. Integration is seamless within Ubiquiti's ecosystem and does not require ONVIF, third-party VMS licensing, or external hardware.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed hundreds of Ubiquiti UniFi Protect G3 Flex cameras across office networks, hospitality properties, and retail chains — and the UVC-G3-F-C-3 ceiling mount is the workhorse that makes those installations look professional. The real value is simplicity: one bracket design, three units per package, and zero compatibility guessing. In customer-facing spaces (hotel lobbies, dental offices, retail showrooms), the discrete ceiling profile makes the difference between a system the client sees and one that disappears into the infrastructure. We've also found that the quick-release mechanism cuts service time significantly. A failed camera in the field means you pop it out, swap in a replacement, and ship the original back to the lab — all without touching the bracket. On a 50-camera deployment, that operational efficiency adds up.
The trade-off versus pole-mount or wall-bracket variants is obvious: ceiling mounts are location-locked. You cannot reposition the camera 10 feet laterally without re-drilling the ceiling. Plan your coverage grid carefully before installation. We typically run a site survey with cardboard mockups mounted on the ceiling grid to validate sightlines and avoid dead zones — it's worth the two hours upfront.
Technical Highlights:
- PoE 802.3af Compliance: The G3 Flex camera draws under 5W through this mount, meaning a single 802.3af switch port powers the camera and microphone without oversubscription. No midspan injectors or PoE+ switches required — reduces hardware cost and simplifies network topology on tight budgets.
- Drop-Ceiling T-Bar Suspension: Standard fasteners grip 1-inch and 0.625-inch T-bar grids. If you're installing in a standard office drop ceiling, no special hardware is needed beyond what ships in the box. Solid-ceiling installations use screw anchors or toggle bolts — verify your ceiling material before arrival.
- Cable Routing Geometry: The bracket design routes the PoE cable downward through the ceiling cavity, not across the grid. Cleaner appearance, reduced cable sag, and easier to identify runs later for maintenance. We've seen this detail cut installation labor by 30 minutes on multi-camera jobs.
- H.264 Compression on Camera: The G3 Flex records H.264 natively; bitrate is firmware-configurable in UniFi Protect. On 24/7 recording at 1080p, expect 3–6 Mbps depending on motion and scene complexity. A four-camera array uses roughly 15–24 Mbps of sustained bandwidth — plan your network accordingly.
Deployment Considerations:
- Verify you own UVC-G3-FLEX cameras before ordering — these mounts are G3-Flex specific. The G3 Dome, G3 Compact, and G3 TURRET use different mounting interfaces. Mixing mount types is a common field error that requires a site visit to correct.
- Ceiling height matters for focal length. The G3 Flex has a 4mm, f/2.0 lens (55° horizontal FOV). At 8–10 feet overhead in a corridor, you get good face-level coverage. At 14+ feet (warehouse mezzanines), coverage degrades — consider supplemental wall-mount cameras or a Flex variant with wider optics.
- Drop-ceiling penetrations expose the camera to dust ingress from the cavity above. In dusty environments (old HVAC systems, unfinished attics), specify sealed conduit grommet or consider hard-ceiling mounting instead.
- IR performance is adequate for corridors and small rooms (up to 20 feet), but night-vision distance is camera-limited, not bracket-limited. Don't expect the infrared to light up a 50-foot warehouse aisle — pair multiple ceilings cameras or add supplementary lighting.
- If you're managing UniFi Protect across multiple sites (cloud-based), confirm your internet uplink and local NVR/Dream Machine capacity before deploying four-camera ceiling arrays. A single site with 16+ G3 Flex units can generate 50+ Mbps egress traffic depending on motion load.
The UVC-G3-F-C-3 is the right choice for integrators building out cohesive office, retail, or light-hospitality networks on the Ubiquiti platform. If you're already standardized on UniFi Protect, these mounts eliminate vendor fragmentation and simplify spare-parts logistics. For mixed deployments (Axis + Ubiquiti, or Hikvision + Ubiquiti), the ceiling-mount form factor is less differentiating — evaluate your full ecosystem before committing. Explore the full Ubiquiti catalog for alternative mounting styles and camera variants.
