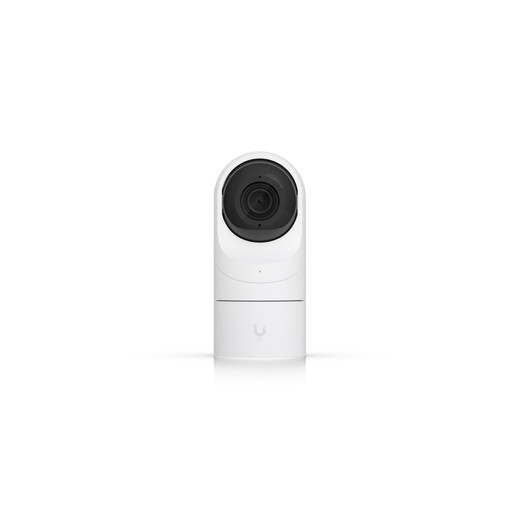

Ubiquiti UVC-G5-FLEX 2K Compact Dome Camera
The Ubiquiti UVC-G5-FLEX is a compact 2K dome camera engineered for low-power distributed surveillance in covered indoor and protected outdoor environments. Built for integration into UniFi Protect ecosystems, the UVC-G5-FLEX (often searched as UVC G5 FLEX) draws just 4W maximum via standard PoE, making it practical for campus-wide deployments where power infrastructure is constrained. The polycarbonate dome design supports pole mounting on 25–38 mm fixtures and measures ⌀48 × 107.5 mm, weighing 170 grams—small enough to mount in soffits, recessed ceilings, and utility corridors without dominating the landscape.
Key Features
- 2K Resolution (2560 × 1920): Delivers sufficient detail for zone coverage and event verification across defined areas. Not a megapixel play—designed for environments where storage and bandwidth are cost drivers; 2K balances clarity with efficiency on modest network runs.
- PoE Power (37–57V DC via RJ45): A maximum draw of 4W means you can chain multiple cameras on a single PoE run without exhausting injector or switch capacity. No separate power cables, no AC outlet hunting—especially valuable in distributed warehouse, parking structure, and utility builds.
- Dual-Core ARM Cortex-A7 Processor: Handles on-device processing for reliable local operation. Sufficient for core surveillance; not a platform for heavy edge analytics, but dependable for streaming and basic event triggers within the UniFi Protect ecosystem.
- IPX4 Rating (When Covered): Polycarbonate enclosure resists splashing and light rain when installed under eaves or covered soffits. IPX4 is conditional—direct unprotected exposure will degrade the enclosure over time. This is not an IP66 outdoor hardening; position it under cover or accept shortened lifespan.
- 10/100 Mbps Network (Single RJ45): Both power and data flow through one Ethernet port. Minimal bandwidth footprint—a real advantage on older or oversubscribed network segments. Supports standard VLAN tagging and firewall segmentation for security-conscious deployments.
- UniFi Protect Integration: Direct management via UniFi Protect software. Firmware updates, event logging, and multi-camera coordination happen within a single ecosystem. If you are already running Ubiquiti infrastructure, provisioning and lifecycle management are simplified.
- NDAA Compliance & International Certifications: Meets NDAA Section 889 and carries CE, FCC, and IC approval, supporting federal and international procurement. Relevant for government-related projects and regulated environments.
- Operating Range: −20°C to 40°C (−4°F to 104°F): Suitable for temperate climates and controlled indoor spaces. Not rated for extreme cold or sustained high heat. Verify fit within your regional temperature envelope before deployment.
Integration & Compatibility
The UVC-G5-FLEX connects directly to any standard PoE-capable network switch or injector rated for 37–57V DC. Configuration and event management occur through IP cameras running the UniFi Protect ecosystem. The camera supports standard ONVIF-adjacent protocols, allowing integration into broader network video management systems when needed, though native operation is optimized for Ubiquiti control planes. For PoE-powered camera plants, the 4W budget is negligible; even a modest 65W PoE injector can support 15+ UVC-G5-FLEX units without strain.
When This Model Is the Right Call
Deploy the UVC-G5-FLEX in covered locations where you prioritize low power draw, compact form factor, and cost-per-camera simplicity. Interior hallways, parking structure levels, equipment rooms, storage aisles, and utility corridors are ideal. Organizations already committed to Ubiquiti surveillance infrastructure will benefit from unified management and minimal integration overhead. The restricted environmental rating and 2K resolution are intentional trade-offs—accept them, and you get an economical, plug-and-play surveillance point.
When to Consider Alternatives
If your deployment requires uncovered outdoor operation with sustained weather exposure, evaluate higher IP-rated models in the broader UniFi G5 lineup. For applications demanding wide-area coverage, higher megapixel count, or extended thermal performance beyond the −20 to 40°C range, consult a camera selection guide to compare form factors and environmental ratings. The UVC-G5-FLEX is a specialist, not a universal tool.
Mounting and Physical Installation
Pole-mount hardware accommodates standard 25–38 mm poles. Typical installations target soffits, recessed mounting within covered passages, or interior ceiling drops. Cable routing is minimal—single RJ45 to a nearby PoE injector or switch. Always position the camera under cover; unprotected mounting will compromise the polycarbonate enclosure and void the IPX4 protection premise.
Frequently Asked Questions
Q: Is the UVC-G5-FLEX NDAA Section 889 compliant?
A: Yes. The UVC-G5-FLEX meets NDAA Section 889 requirements, making it suitable for federal and government-adjacent deployments.
Q: What is the maximum power draw for the UVC-G5-FLEX?
A: 4W maximum via PoE. This exceptionally low budget allows densely distributed deployments without redesigning power infrastructure.
Q: Can I mount the UVC-G5-FLEX outdoors without cover?
A: Not recommended. The IPX4 rating applies only when the camera is covered (under eaves, soffits, or recessed installations). Unprotected outdoor exposure will degrade the polycarbonate enclosure over time.
Q: What network bandwidth does the UVC-G5-FLEX consume?
A: The camera operates on a 10/100 Mbps port and has a modest bitrate profile typical of 2K surveillance. Exact bandwidth depends on codec choice and frame rate settings within UniFi Protect.
Q: Does the UVC-G5-FLEX include night vision?
A: Yes, the camera includes built-in infrared night vision for low-light operation within covered spaces.
Q: What is the operating temperature range?
A: −20°C to 40°C (−4°F to 104°F). Verify compatibility with your deployment climate before ordering, especially for temperature-extreme environments.
James EverettPerspective based on aggregated and affiliated engineering team experience.
The UVC-G5-FLEX occupies a specific niche: ultra-low-power distributed surveillance for organizations already invested in Ubiquiti infrastructure. At 4W per camera and 10/100 Mbps network demand, you can deploy dozens of these across a campus—parking structures, utility corridors, interior service areas—without touching your power budget or saturating network backbone capacity. The polycarbonate dome and 2K resolution are intentional constraints, not oversights. Accept them, and the economics and installation simplicity are compelling.
Technical Highlights:
- 4W maximum power consumption: Negligible load on any PoE infrastructure. A single 60W injector supports 15 units; a modest 802.3af switch port handles multiple cameras without concern for oversubscription.
- IPX4 under-cover rating: Splash-resistant when sheltered. This is not weatherproof for unprotected mounting—polycarbonate degrades in sustained UV and rain. Plan for soffit, recessed, or eave-mounted positions.
- 2K (2560 × 1920) resolution: Adequate for zone verification and event review in defined interior or covered exterior spaces. Storage overhead is modest compared to 4MP or 5MP alternatives; a meaningful factor on distributed NVR plants with limited backend capacity.
Deployment Considerations:
- The UVC-G5-FLEX is optimized for UniFi Protect management. If you're mixing camera ecosystems, integration burden increases. Commit to Ubiquiti or evaluate cameras from your primary VMS vendor.
- Operating range tops out at 40°C (104°F). In hot climates or sun-exposed soffits, verify thermal performance. The compact form and polycarbonate may absorb heat; ventilation and shade are your friends.
- Pole mounting on 25–38 mm fixtures is straightforward, but always position under cover. Unprotected exposure will shorten enclosure lifespan and compromise the IPX4 premise.
The UVC-G5-FLEX is ideal for interior service chains and covered outdoor utility areas—parking structure levels, warehouse corridors, equipment room entries, storage aisles. If you're standardizing on Ubiquiti, you'll appreciate the low TCO and zero-fuss provisioning. If you need high-resolution wide-area coverage or true outdoor hardening, look elsewhere.
