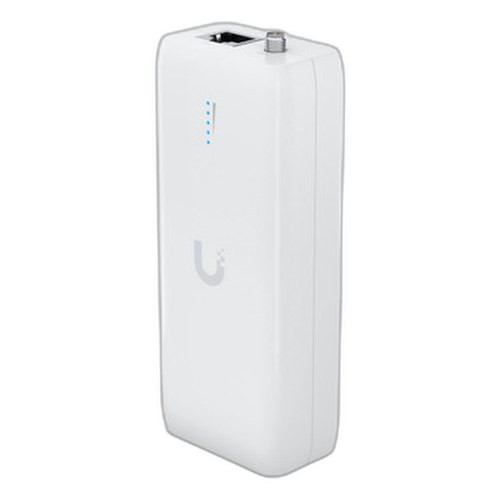

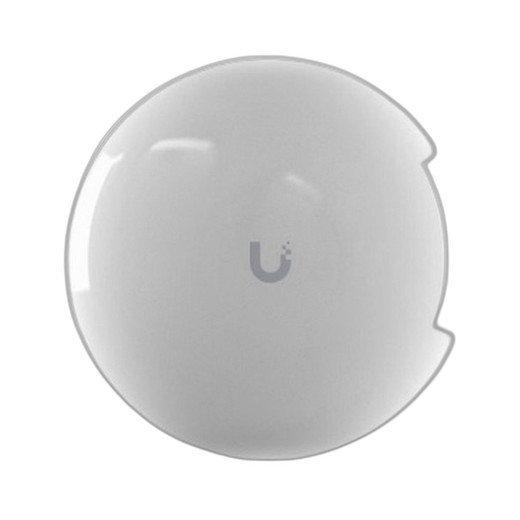

Ubiquiti UDB-PRO-US WiFi 5 Wireless Bridge
Overview
The Ubiquiti UDB-PRO-US is a compact 802.11ac (WiFi 5) wireless bridge engineered for point-to-point and point-to-multipoint deployments where wired backhaul is cost-prohibitive or logistically impractical. Delivering 866.7 Mbps theoretical maximum throughput via 2x2 MIMO across 80 MHz channel bandwidth, this device bridges remote buildings, outdoor access points, or temporary network extensions directly to your core infrastructure without requiring fiber or copper runs. The UDB-PRO-US (often searched as UDB PRO US) weighs just 200 g and fits wall- or table-mount form factors, enabling flexible placement in confined roof spaces, outdoor enclosures, or temporary event setups where physical space and power budget are constrained.
Key Features
- 866.7 Mbps Throughput via 2x2 MIMO: The rated 866.7 Mbps figure assumes ideal conditions; real-world throughput typically runs 40–60% of this, translating to roughly 350–500 Mbps usable bandwidth. This is sufficient for linking a single remote switch, small camera cluster, or WiFi access point to your primary network, but insufficient for multi-building high-bandwidth backhaul scenarios—plan accordingly if you're aggregating multiple uplinks.
- Configurable Channel Bandwidth (20/40/80 MHz): Narrower channels reduce interference in congested RF environments but sacrifice throughput proportionally. 80 MHz is optimal for point-to-point links with minimal co-channel interference; 40 MHz or 20 MHz may be necessary in urban or multi-tenant buildings.
- PoE Powered (25W @ 100–240V AC Input): Draws just 25W during normal operation, meaning you can power the unit from a standard PoE injector or AC-to-PoE converter without straining your switch's power budget. Current draw peaks at 0.45A at 50/60 Hz, well within typical office or campus power distribution tolerances.
- Single Gigabit Ethernet RJ45 Port: One upstream wired connection only—this is a pure bridge, not a multi-port switch. Connect to your core switch, router, or PoE injector; no passive PoE output means you cannot daisy-chain powered devices from this unit.
- WiFi-Based Standalone Management: No external Ubiquiti controller dependency required for basic setup and diagnostics. Full integration available via UniFi controller platforms for enterprise deployments, but the unit operates independently if needed.
- Operating Temperature -10°C to 40°C; Polycarbonate Enclosure: Rated for partially sheltered outdoor mounting (eaves, overhangs, enclosed porches) but not direct sun exposure or extreme cold. Deployments in -40°C warehouses or 60°C equipment rooms require supplemental thermal management—this is not a wide-temperature industrial device.
- Compact Dimensions (130 x 55 x 34 mm; 200 g): Fits easily into tight roof spaces or wall pockets where larger gear cannot go. Mount footprint is minimal, reducing visual clutter in customer-facing spaces.
- NDAA Compliance and Multi-Region Certifications: CE, FCC, IC, and Anatel (03885-25-08356) certifications confirm suitability for North American and select international government procurement workflows. NDAA compliance eliminates sourcing friction in regulated US federal agency deployments.
Integration and Deployment Scenarios
The UDB-PRO-US excels in campus interconnect: connecting remote office buildings to a primary data center without trenching fiber, linking outdoor camera systems or AP clusters across parking lots or perimeter zones, and bridging temporary network extensions during facility upgrades or events. Integrate into Ubiquiti ecosystems via UniFi controller or configure as a standalone WiFi-managed device. Bridge mode (transparent data pass-through) is the default; access point mode is available if you need to extend WiFi coverage rather than simply backhaul traffic. Channel bandwidth is adjustable post-deployment, enabling quick tuning if interference changes or you need to optimize for distance versus throughput.
What's in the Box
- 1x Ubiquiti UDB-PRO-US wireless bridge unit
- 1x PoE injector (25W, 100–240V AC input)
- 1x Ethernet cable (RJ45, length varies by kit revision)
- 1x Wall/table mounting bracket with hardware
- 1x Quick-start guide
Frequently Asked Questions
Q: Is the UDB-PRO-US compatible with non-Ubiquiti networks?
A: Yes. The device uses standard 802.11ac (WiFi 5) and a standard Gigabit Ethernet port. It bridges traffic transparently and works with any wired network infrastructure. Ubiquiti UniFi controller integration is optional—the unit operates independently via WiFi management interface.
Q: What's the realistic usable throughput in a campus environment?
A: Expect 350–500 Mbps real-world throughput under typical conditions. This assumes clear line-of-sight, minimal interference, and distances under 100 m. Obstacles, rain, or co-channel interference reduce this further. Verify your link budget with a site survey before committing to this device for latency-sensitive or high-bandwidth applications.
Q: Does the UDB-PRO-US include passive PoE output for downstream devices?
A: No. The single Gigabit port is input only—you cannot power additional devices from the UDB-PRO-US. If you need to power a camera or AP at the far end of the link, you must supply a separate PoE injector or power supply there.
Q: Can I deploy this outdoors year-round?
A: Only with thermal management outside the -10°C to 40°C operating range. Direct sun exposure, freezing conditions, or heat >40°C will void reliable operation. Mount in eaves, enclosures, or under weatherproof covers for extended outdoor use in extreme climates.
Q: Is the UDB-PRO-US NDAA Section 889 compliant?
A: Yes. Ubiquiti devices including the UDB-PRO-US are on approved vendor lists for US federal agency procurement. Verify current compliance status with your procurement authority if required for a specific contract.
Q: What VMS platforms integrate with the UDB-PRO-US?
A: The UDB-PRO-US is a bridge, not a camera—it does not connect directly to VMS systems. It provides network connectivity for downstream cameras, NVRs, or access points that do. Ubiquiti UniFi controller manages the device itself; third-party VMS systems interact with cameras or recorders downstream of the bridge.
Eden PhillipsPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The UDB-PRO-US solves a real problem in campus deployments: you have a remote building or outdoor camera cluster that needs network access, but running fiber or copper is either too expensive or logistically messy. This bridge handles that gap efficiently—866.7 Mbps rated throughput, though expect 350–500 Mbps in the field depending on distance, obstruction, and RF interference. It's not a wide-area backhaul device; it's a targeted point-to-point link for small to medium distances and moderate bandwidth requirements.
Technical Highlights:
- 25W PoE Power Budget: Draws only 25W, so it sits comfortably on a standard PoE injector or a port from your core switch without requiring a dedicated power supply. That's a real labor saver on retrofit projects where you're already tight on power distribution.
- 2x2 MIMO, 80 MHz Channel Bandwidth: The dual-stream design and wide channel width give you that 866.7 Mbps ceiling. In practice, real throughput degradation is steep (40–60% loss), so budget accordingly. Don't assume this bridge can carry two simultaneous high-bitrate camera streams over distance—test it on your site first.
- Standalone WiFi Management + UniFi Integration: You don't need a controller to get the device online; WiFi-based configuration works immediately out of the box. But if you're already running Ubiquiti infrastructure, UniFi controller integration is seamless and gives you centralized diagnostics and channel optimization.
- -10°C to 40°C Operating Range with Polycarbonate Enclosure: This is a sheltered outdoor device, not a harsh-environment bridge. Install it in eaves, under overhangs, or inside weatherproof boxes. Direct sun or extreme cold will shorten its life or force you into thermal management workarounds.
Deployment Considerations:
- Line-of-Sight Critical: WiFi 5 at 5 GHz has shorter range than 2.4 GHz and needs clear RF paths. Buildings, dense vegetation, and rain all degrade the link. Do a site survey with an RF scanner before you spec this into a project.
- No Daisy-Chain PoE: The single Gigabit port is for uplink only; you cannot power downstream devices (cameras, APs) directly from the UDB-PRO-US. If you need to power gear at the far end, supply your own PoE injector or power converter—budget for that labor and cost.
- Real-World Throughput is 40–60% of Rated Max: Don't promise clients 866 Mbps usable bandwidth. Tell them 350–500 Mbps under optimal conditions, and less in rain or over longer distances. Set expectations early to avoid support friction later.
Deploy the UDB-PRO-US when you're bridging a single remote building, parking-lot camera cluster, or AP to your primary network and the distance is short enough for clear line-of-sight (under 100 m in most campus environments). It's cost-effective, easy to mount, and integrates cleanly into Ubiquiti environments. For multi-building backhaul with high throughput or poor line-of-sight, consider point-to-point microwave or licensed wireless instead.
