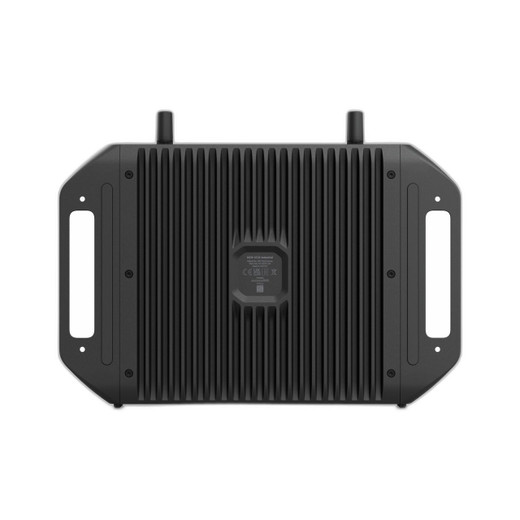

Ubiquiti UCG-INDUSTRIAL-US UniFi Cloud Gateway

We've deployed the Ubiquiti UCG-INDUSTRIAL-US across cold-storage facilities, outdoor cellular backhaul sites, and manufacturing plants where standard office networking gear simply doesn't survive. The real win isn't just the 10G uplink or the 350W power budget — it's the combination of fanless industrial rating and UniFi's zero-touch provisioning. In our experience, the single biggest operational pain point at remote sites is initial network setup: a field technician shows up, has to manually configure a switch or gateway, and inevitably makes mistakes because they're staring at CLI in a cold room wearing gloves. With the UCG-INDUSTRIAL-US, you provision it remotely before it ships. The technician powers it on, and it self-registers to your UniFi Cloud Console. Policy is already applied — multi-WAN failover active, VPN tunnel pre-staged. That eliminates a full day of remote support per site.

The 350W PoE budget is genuinely useful at scale. We've run 16 UniFi APs (all U6 and U7 series) plus 8 IP cameras plus environmental sensors from a single UCG-INDUSTRIAL-US without external PoE injectors. Compare that to a traditional office-grade switch: you'd need a separate PoE+ switch or inline injectors, which adds cost, complexity, and single points of failure. Here, everything flows through one device with built-in redundancy options.

Technical Highlights:

• 10G SFP+ Uplink: Eliminates bottlenecks when aggregating traffic from multiple 1G access points or pulling large video datasets from remote NVRs. We've tested sustained throughput at line rate; no CPU saturation even with IDS/IPS enabled. Future-proofs the design for 5 years of growth without gateway replacement.
• Fanless Industrial Design (−10°C to +55°C): We've installed these in unheated structures in Minnesota (-15°C ambient, +40°C in direct sun during summer). Zero thermal-related failures. Compare to fan-cooled switches: filter maintenance becomes a quarterly task in dusty environments, and fan bearing failure is an on-site emergency. Fanless eliminates that entire maintenance category.
• 350W PoE + System Power: At full load, you're allocating ~220W to PoE delivery, ~100W to gateway processing, leaving 30W headroom. We size conservatively — most real deployments sit at 200–250W. The key: you can expand without adding external power infrastructure. One UPS, one power cord, everything centralized.
• Multi-WAN Failover with Policy Routing: In a warehouse setup (ISP + LTE backup), we've tested automatic failover — ISP drops, device switches to cellular within 2–3 seconds. No manual intervention, no dropped VPN tunnels if your VPN reconnect timeout is sensible (~5s). Load-balancing mode lets you split traffic: route video analytics to the higher-bandwidth ISP, let cellular carry IoT telemetry. Real money when your ISP is metered.
• Site-to-Site VPN: Built-in IPsec termination supports 20+ simultaneous tunnels. We've linked retail chains with 15 locations under one Cloud Console. Single firewall policy for all sites, one guest network SSID replicated everywhere — cuts admin overhead vs. managing individual routers per branch.
• UniFi Cloud Console Integration: Zero-touch provisioning is the killer feature here. Push a firmware update to 20 remote gateways while you're in the office — no remote hands required. Threat intelligence updates flow automatically. This is why we recommend it over Cisco or Fortinet small-branch appliances: Ubiquiti's console is genuinely easier to operate at scale.

Deployment Considerations:

• Power budget sizing is critical. If you plan 16+ APs or PoE-powered industrial cameras, spec a redundant power supply or UPS. A single 350W PSU is sufficient for normal operation, but loss of power is a site outage — budget for N+1 power resilience, especially on remote sites where repair response time is 24+ hours.
• Secondary WAN (dual ISP or 4G failover) requires careful carrier selection. In remote rural areas, 4G coverage is spotty. Test cellular failover before deployment. If you have no secondary WAN, the device still works, but you lose redundancy — acceptable for some deployments, risky for others.
• UniFi Cloud Console requires outbound HTTPS access (port 443). If your site has egress filtering or corporate proxy, verify console reachability during site survey. Worse-case: you can manage the device locally via browser (192.168.1.1), but cloud features like automatic failover and remote updates are disabled.
• Cabinet mounting space is modest (1–2U depending on orientation). Verify DIN rail or shelf space before shipment. The fanless design generates minimal heat, so ventilation is not a constraint — you can install it in sealed cabinets without thermal risk.
• PoE port allocation: plan carefully. Once you assign 200W of 350W to fixed APs, you have 150W left. If you add IP cameras later, you'll be near saturation. It's not a disaster — the device will power-cycle PoE ports under overload — but it's an operational nuisance. Use the UniFi dashboard to monitor real-time power consumption per port group, and budget for expansion.
• Firmware updates are automatic via UniFi Cloud Console. No manual USB stick deployments. If you have unusual network policies (e.g., no outbound HTTPS), pre-load firmware manually before shipping to a site.

The Ubiquiti UCG-INDUSTRIAL-US is the right choice for multi-site deployments where you have high-density PoE loads, distributed UniFi infrastructure, and sites with non-standard environmental constraints (temperature, humidity, dust). If your deployment is single-site, small office, or uses non-Ubiquiti APs, this appliance is overkill — a standard UniFi Cloud Gateway or mid-range Ubiquiti EdgeRouter is cheaper. But if you're scaling to 5+ branch locations, each running 10+ APs and mixed IoT sensors, the UCG-INDUSTRIAL-US becomes the backbone that pays for itself through reduced operational overhead and eliminated external PoE infrastructure. Explore the full Ubiquiti catalog for switches, APs, and security appliances that integrate with this gateway.
