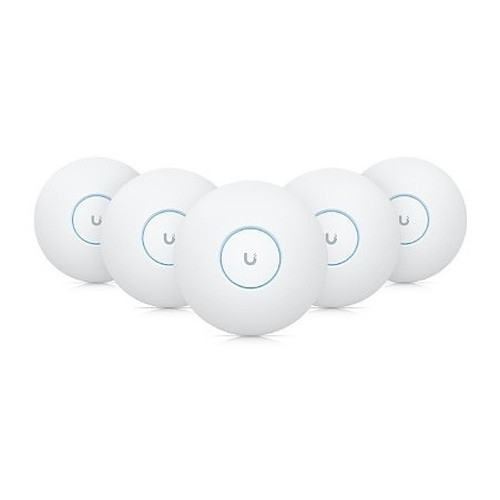

Ubiquiti UAP-AC-PRO-5-US WiFi 5 Access Point
Overview
The Ubiquiti UAP-AC-PRO-5-US is a dual-band 802.11ac (WiFi 5) access point built for enterprise indoor and outdoor deployments where centralized management and mixed-environment coverage matter. Combined throughput reaches 1750 Mbps—450 Mbps on 2.4 GHz and 1300 Mbps on 5 GHz—a realistic split that keeps both bands useful rather than relegating 2.4 GHz to legacy IoT devices alone. If you're running 50–300 concurrent users per access point across an office, warehouse, or light industrial facility, the UAP-AC-PRO-5-US handles typical density without forcing you into WiFi 6 hardware and licensing costs.
Key Features
- Dual-band simultaneous operation — Run 2.4 GHz and 5 GHz at the same time. This means devices can pick the band that gives them the best airtime efficiency; you're not forced into a single congested channel. Particularly valuable in warehouses where older industrial IoT gear often locks to 2.4 GHz while tablets and mobile clients prefer 5 GHz.
- 1750 Mbps combined throughput — Real-world backhaul speed is lower, but for typical client-to-AP connections (laptops, phones, tablets), this throughput handles 10–20 simultaneous high-demand clients without saturation. Don't expect this number as per-client speed; it's the aggregate available.
- PoE+ power delivery — Draws power via 802.3at PoE+, which means a single Cat5e or Cat6 cable supplies both data and power. No separate 12V runs, no wall outlets needed at ceiling/wall mount points. Simplifies installation in renovations and removes a major labor cost.
- Two Ethernet ports — One port handles your network backbone; the second allows daisy-chaining of powered devices (IP phones, cameras, or additional networked gear). Reduces switch port consumption if you're deploying PoE-powered endpoints alongside the access point.
- UniFi Controller integration — Adoption into a UniFi wireless infrastructure enables centralized provisioning, firmware updates, and monitoring across dozens or hundreds of access points from a single management plane. Roaming is transparent to clients, and you can segment traffic by SSID, VLAN, or user group without touching individual units.
- Indoor and outdoor mounting flexibility — Weighs 6.95 pounds and accepts standard wall and ceiling brackets. The industrial plastic enclosure handles outdoor environments where weather protection (roof eaves, covered loading docks) is provided; if you need full rain/snow immersion, specify an IP67-rated outdoor AP instead.
Integration and Deployment Scenarios
The UAP-AC-PRO-5-US requires a UniFi Controller—either self-hosted on a server or cloud-managed through Ubiquiti's cloud dashboard. If you're already running Ubiquiti network infrastructure, adoption is one click: power up, let it adopt into the controller, configure SSID and security, done. No console access, no SSH required for basic deployments.
Typical deployments include office buildings (50–500 users spread across floors), hospitality venues (guest networks plus employee backhaul), education facilities (classrooms plus outdoor courtyards), and warehouses (where density is moderate but coverage distance matters). The form factor accommodates both wall-mounted and ceiling-mounted placement depending on your installation topology.
This is a mature product in the Ubiquiti lineup, so firmware updates are consistent and security patches are issued regularly. If you're standardizing on UniFi switching, routing, and security infrastructure, adding UAP-AC-PRO-5-US access points keeps your operational burden low—one controller, one firmware track, one UI.
When to Choose a Different Model
If you need WiFi 6 (802.11ax) performance, consider higher-tier Ubiquiti access points in the same family—they deliver better spectral efficiency and lower latency, though at increased cost. If your deployment requires full IP67 outdoor rating (high-moisture or submersion environments), you'll need a weatherproofed outdoor variant rather than this indoor-outdoor compromise. If you're not already in the UniFi ecosystem, evaluate whether the controller overhead is worth the centralized management benefit for your facility size.
Frequently Asked Questions
Q: Does the UAP-AC-PRO-5-US require a cloud connection to the Ubiquiti controller?
A: No. You can run the UniFi Controller software on an on-premises server or NAS, and the access points communicate to it locally. Cloud management is optional for remote oversight.
Q: What PoE switch should I use with the UAP-AC-PRO-5-US?
A: Any switch with PoE+ (802.3at) ports works. Each UAP-AC-PRO-5-US draws approximately 13W max, so a standard PoE+ port (30W available) handles it with headroom. If daisy-chaining powered devices via the second port, verify the total power draw stays within the port budget.
Q: Can I mix UAP-AC-PRO-5-US with other WiFi 5 or WiFi 6 access points under one controller?
A: Yes. The UniFi Controller manages heterogeneous access points. Roaming works across different models as long as they share the same SSID and security profile.
Q: What's the typical range of the UAP-AC-PRO-5-US?
A: Coverage depends on obstacles and interference. Plan for approximately 100–150 feet line-of-sight in open space, less through concrete or metal walls. Deploy additional units for larger facilities.
Q: Is the UAP-AC-PRO-5-US NDAA Section 889 compliant?
A: Ubiquiti products are not on the NDAA Section 889 approved list. If federal compliance is required, consult your contracting officer before purchase.
Eden PhillipsPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Ubiquiti UAP-AC-PRO-5-US remains a solid midfield choice if you're already committed to UniFi infrastructure or transitioning from 802.11n hardware that's hit end-of-life. The 1750 Mbps combined throughput—450 Mbps on 2.4 GHz, 1300 Mbps on 5 GHz—is realistic for mixed-client deployments where density tops out around 200–300 concurrent users per unit. What makes this AP pragmatic is the PoE+ power model: one Cat5e cable eliminates power-outlet dependencies at mount points, a real operational advantage in retrofit environments.
Technical Highlights:
- Dual-band simultaneous operation: Both 2.4 GHz and 5 GHz active at once means you can assign legacy IoT and industrial equipment to the less congested 2.4 band while pushing video clients and tablets to 5 GHz. Reduces airtime contention without buying two separate APs.
- PoE+ (802.3at) power delivery, ~13W max draw: One cable handles data and power. Standard PoE+ ports on any modern switch are oversized for this unit, so you won't strain your power budget. Second Ethernet port allows device chaining, a real space-saver on switch infrastructure.
- UniFi Controller centralization: Single management plane for dozens of units, automatic roaming between APs, VLAN-per-SSID segmentation, and scheduled firmware rollouts. Cuts operational overhead compared to per-unit SSH configuration.
Deployment Considerations:
- This is 802.11ac (WiFi 5). If your refresh cycle is five-plus years, evaluate WiFi 6 alternatives now to avoid hard currency churn mid-cycle. That said, if you're replacing older hardware and expect three-year use, the UAP-AC-PRO-5-US is stable and supported.
- Outdoor mounting works under eaves and covered structures; if you need unprotected rain/snow exposure, don't force this unit outdoors—get an IP67-rated outdoor variant instead. The plastic enclosure handles humidity but not full immersion.
- Controller adoption is painless (power + DHCP), but you must have a reachable UniFi Controller instance before the AP becomes useful. If you don't have one, budget for cloud licensing or a dedicated on-premises server/NAS.
Position the UAP-AC-PRO-5-US for office buildings, light industrial facilities, and education campuses where user density is moderate, coverage distance matters more than maximum spectral efficiency, and you want a simple management story across dozens of units.
