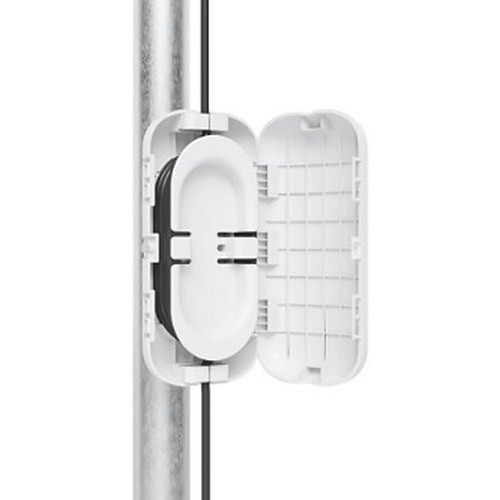

Ubiquiti UACC-FIBER-SR-KIT Fiber Strain Relief Kit
Overview
The UACC-FIBER-SR-KIT is a UV-resistant, pole or wall-mountable enclosure engineered to organize fiber optic cabling at termination points while reducing physical strain on connections. For outdoor fiber deployments—whether you're running Ubiquiti network infrastructure or integrating fiber-based backbone systems—cable management at the junction is critical. Poor strain relief leads to micro-fractures in fiber connections, degraded signal integrity, and eventually, costly field maintenance calls. This kit addresses that directly with a detachable reel mechanism that keeps cable loops organized and protected from weather exposure, tension cycles, and UV degradation.
Key Features
- UV-Stabilized Polycarbonate Enclosure: Polymer housing resists ultraviolet breakdown and color fade over 5–10 years of continuous outdoor exposure. Matters because non-stabilized plastics become brittle and crack in high-sun environments (rooftops, mast-mounted installations); you'll avoid replacement cycles and eliminate water ingress points from material failure.
- Wind Load Rating to 200 km/hr (124.27 mph): Withstands Category 4 hurricane-equivalent wind speeds. Relevant if your fiber termination box sits on a tower, building edge, or exposed pole—reel vibration under wind load can micro-bend fiber strands and introduce loss. This rating keeps the enclosure stable and the reel locked in place.
- Detachable Reel Mechanism: Allows field technicians to coil excess fiber without kinks or tight radii. Standard practice is to maintain a minimum 1.5-inch bend radius on single-mode fiber; this reel enforces that discipline and lets you pre-stage slack for future splices or patch panels without cramping the cable inside a tiny box.
- Pole Mount Compatibility (35–60 mm diameter): Fits standard utility poles, tower legs, and fence posts across North America and international deployments. Avoids custom brackets or adapter plates; you tighten the enclosure directly onto the pole and secure the reel internally.
- Wall-Mount Option: Alternatively, install flush against a building face, equipment cabinet, or demarcation box. Gives you flexibility if your fiber run terminates on a building corner or inside a NOC vestibule rather than on a mast.
- Operating Temperature Range -10 to 60°C (14 to 140°F): Accommodates tropical and sub-freezing climates. Fiber itself is temperature-stable, but plastic shrinkage at -10°C and thermal expansion at 60°C can stress connection points. This kit's material remains dimensionally stable across that range, protecting terminations from thermal micro-movements.
- Humidity Tolerance 5–95% Non-Condensing: Resists salt-fog, humid coastal environments, and rain splash. Non-condensing means internal moisture beads on the plastic surface rather than pooling; adequate ventilation around the reel keeps condensation minimal. Still not a fully sealed unit—use a desiccant plug in high-humidity sites if water ingress is a concern.
- Compact Footprint (189 × 95 × 48 mm / 7.4 × 3.7 × 1.9 inches): Low profile minimizes wind drag and keeps the installation visually discrete on poles or walls. Weight of 252 g (8.9 oz) means no additional structural load calculations for lightweight poles.
Integration & Compatibility
The UACC-FIBER-SR-KIT (often searched as UACC FIBER SR KIT) is designed for Ubiquiti fiber-based network deployments, including UniFi, UISP, and AmpliFi platforms. It pairs with single-mode or multi-mode fiber patch panels, LC/SC connectors, and standard fiber splice trays. Use this kit at outdoor demarcation points, tower-mounted splice boxes, or building fiber ingress locations wherever you need to decouple strain on the fiber itself from the weight and tension of the external cable run. It is manufacturer-agnostic for the fiber connector type, so long as the connector body and pigtail fit through the enclosure opening.
Deployment Considerations
Install the UACC-FIBER-SR-KIT at any point where outdoor fiber cable transitions into a building, equipment cabinet, or splice point. The reel mechanism is most effective when you have 10–50 meters of extra fiber slack to manage; if your cable run terminates with minimal slack, the reel's benefit is reduced. Pair this with a network switch or optical transceiver at the other end and consider labeling the coiled fiber with pull-through tags to avoid accidentally over-tensioning during future maintenance. In coastal or high-dust environments, apply a light silicone gasket around the enclosure lid seam to minimize moisture entry, even though the design is rated for 95% humidity.
Frequently Asked Questions
Q: Can I mount the UACC-FIBER-SR-KIT on a 2-inch (50.8 mm) diameter pole?
A: Yes. The pole mount diameter range is 35–60 mm (1.38–2.36 inches), which includes a 2-inch pole. Confirm the actual pole OD before installation.
Q: Does the kit protect fiber connectors from rain?
A: Partially. The enclosure is UV-resistant and rated for 5–95% humidity (non-condensing), which means it handles rain splash and humidity well. For full submersion protection or coastal salt-fog, add a secondary weatherproof connector cap or silicone gasket around the lid.
Q: What's the minimum bend radius the reel accommodates?
A: The datasheet does not specify a reel diameter or minimum radius. For single-mode fiber, maintain at least a 1.5-inch radius during coiling; consult your fiber cable manufacturer's spec sheet for your specific strand type.
Q: Is the UACC-FIBER-SR-KIT compatible with both single-mode and multi-mode fiber?
A: Yes. The enclosure is fiber-type agnostic; it manages cable strain and UV exposure regardless of core diameter. The reel mechanism works with any standard patch cable pigtail.
Q: What mounting hardware is included?
A: Specific mounting hardware contents are not detailed in the available documentation. Confirm with your installer or distributor what fasteners and brackets are provided in-box.
Q: Can I install the kit indoors?
A: Yes, though the UV-stabilized polycarbonate and weather seals are engineered for outdoor use. Indoor installation is fine and may extend component life if you're managing slack in a NOC or equipment room.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The UACC-FIBER-SR-KIT is a straightforward but effective cable management accessory for outdoor fiber terminations. If you're deploying Ubiquiti fiber infrastructure across rooftops, tower sites, or exterior demarcation boxes, this kit addresses a real pain point: unmanaged fiber slack creates tension on termination points, introduces micro-bends, and degrades link margins over time. The UV-stabilized polycarbonate enclosure and 200 km/hr wind rating mean you won't be replacing the housing every 3–5 years due to UV bleaching or weather damage.
Technical Highlights:
- UV-Stabilized Polycarbonate: Resists degradation in high-UV environments (rooftops, equatorial sites) where standard ABS or commodity plastic enclosures yellow and crack within 5 years. Extends housing life to 10+ years with minimal maintenance.
- 200 km/hr Wind Load Rating: Ensures the reel and housing remain stable during severe weather. Wind vibration on unsecured cable management is one of the top causes of fatigue failures in outdoor fiber connections—this rating keeps the entire assembly rigid.
- Detachable Reel: Allows field technicians to stage fiber slack without kinks. A 1.5-inch bend radius is the industry standard for single-mode fiber; this reel enforces that discipline and prevents technicians from crimping the fiber during future splices or connector swaps.
Deployment Considerations:
- The non-condensing humidity rating (5–95%) works for most coastal and tropical climates, but if you're in a high-salt-fog zone (docks, offshore wind sites), add a desiccant plug or silicone gasket to the lid seam to minimize internal moisture accumulation.
- The kit's benefit is maximized when you have 10–50 meters of extra fiber to manage. If your cable run terminates with minimal slack, consider a smaller inline clip or bracket instead—the reel is overkill for stub runs.
Use the UACC-FIBER-SR-KIT at any outdoor fiber demarcation point—particularly tower-mounted splice boxes, building fiber ingress locations, or equipment cabinet exteriors where cable slack poses a strain-relief risk. Pair it with standard LC/SC patch panels and a labeling system to keep track of fiber function during future maintenance.
