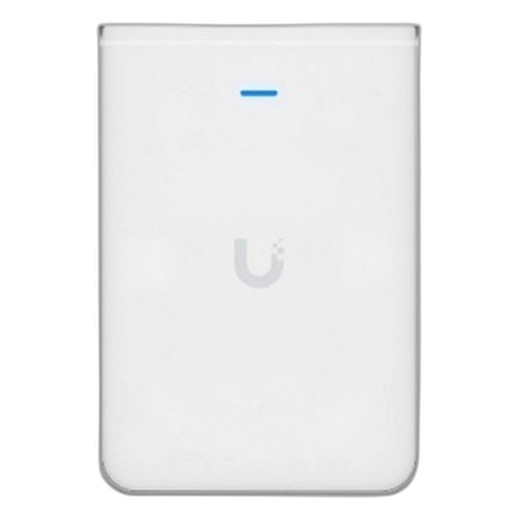

Ubiquiti U7-PRO-WALL WiFi 7 Wall-Mount Access Point
Overview
The U7-PRO-WALL is a wall-mounted WiFi 7 access point engineered for flush installation in residential and small commercial deployments. It operates across three bands—6 GHz, 5 GHz, and 2.4 GHz—with dual 2x2 MIMO per band and support for up to 300+ concurrent clients. The flush wall-mount form factor (5.9" × 4.1" × 1.4") minimizes visual profile while delivering full-band 802.11be performance. This is a practical choice when your installation calls for an access point that disappears into the wall rather than dominating it.
Key Features
- WiFi 7 Performance Across Three Bands: Maximum data rates of 5.8 Gbps on 6 GHz (320 MHz BW), 4.3 Gbps on 5 GHz (240 MHz BW), and 688 Mbps on 2.4 GHz (40 MHz BW). The 6 GHz and 5 GHz speeds translate directly to lower latency for real-time traffic (VoIP, video conferencing) and faster file transfers—a material advantage over WiFi 6E when you're planning for year-ahead client density.
- Single 2.5 GbE Uplink: Wired throughput won't bottleneck your wireless clients. A 2.5 GbE uplink prevents the AP itself from becoming a traffic choke point, which matters in small commercial settings where 20–50 simultaneous users are common.
- 300+ Concurrent Clients: Designed to serve schools, small offices, and hospitality venues without degradation. Not intended for single-user throughput racing—the benefit here is stability and fairness across a crowd.
- PoE+ Powered (22W max): Draws under 44–57V DC via PoE+ injector or switch port. No dedicated power supply required, reducing cable clutter and simplifying replacement in a wall cavity.
- Band Steering, BSS Transition, and Fast Roaming: These features automatically shuffle clients between bands and APs during movement, keeping handoff seamless. In retail or warehouse settings with mobile staff, this prevents momentary drops when walking between coverage zones.
- 140 m² Coverage (≈1,500 ft²): Single AP covers a modest residential unit or small office floor. For larger deployments, plan for additional units and controller-managed roaming via UniFi.
- Enterprise Guest Policies: Supports RADIUS over TLS, VLAN isolation, guest networks, and dynamic RADIUS-assigned VLANs. Useful in shared spaces (coworking, retail) where you need to isolate tenant traffic without deploying a separate SSID per floor.
- 802.11be, 802.11ax, 802.11ac, and 802.11n Backward Compatibility: Older clients still connect and roam; WiFi 7 devices immediately benefit from new spectrum and bandwidth. No forced upgrade cycles.
Integration & Compatibility
The U7-PRO-WALL integrates with the Ubiquiti UniFi controller ecosystem. If you're deploying multiple APs or managing a small multi-site network, a UniFi Dream Machine or cloud-hosted controller centralizes provisioning, guest authentication, and band steering across all units. Standalone mode is possible (basic SSID broadcast without central auth), but you lose dynamic VLAN assignment and RRM (radio resource management) optimization. For security integrators planning a wired backbone with PoE switches, this AP pairs naturally with network switches supporting PoE+ and structured cabling installations.
Physical Form & Mounting
The compact 1.4" depth allows installation into standard in-wall enclosures or surface-mount boxes. Dimensions 5.9" wide × 4.1" tall fit standard US electrical boxes with minimal protrusion. A wall mount is included in the package.
What's in the Box
- 1x U7-PRO-WALL Access Point
- 1x Wall Mount
When to Choose a Different Model
If you need outdoor coverage or mounting on a ceiling or pole, look to a different Ubiquiti form factor in the same family. The U7-PRO-WALL is purpose-built for in-wall residential and small commercial use; outdoor deployments or large open spaces benefit from an outdoor-rated AP or a different mounting topology.
Frequently Asked Questions
Q: Does the U7-PRO-WALL require a UniFi controller to operate?
A: No. The unit can broadcast an SSID and accept WPA3 clients in standalone mode without a controller. However, advanced features—VLAN assignment, RADIUS authentication, band steering optimization, and multi-AP roaming—require a UniFi controller (Dream Machine, cloud gateway, or self-hosted). For small deployments, many users start standalone and add a controller later.
Q: Is the U7-PRO-WALL PoE+ powered, and what's the maximum wattage?
A: Yes. It draws a maximum of 22W over PoE+ (44–57V DC). Standard PoE+ injectors and managed switches with PoE+ support will power it. A single PoE switch port can handle multiple U7-PRO-WALL units if your total power budget allows.
Q: Can I use the U7-PRO-WALL outdoors?
A: No. The U7-PRO-WALL is not rated for outdoor exposure. Rain, direct UV, and extreme temperature swings will degrade performance and reliability. For outdoor coverage, consult the Ubiquiti outdoor AP line.
Q: What's the difference between 6 GHz, 5 GHz, and 2.4 GHz coverage on this unit?
A: 6 GHz offers the fastest speeds (5.8 Gbps max) and lowest interference but has shorter range and requires WiFi 7 or newer clients. 5 GHz (4.3 Gbps) works with WiFi 5/6 devices and has moderate range. 2.4 GHz (688 Mbps) has the longest range and broadest device compatibility but is congested in dense environments. The U7-PRO-WALL broadcasts all three simultaneously; clients choose based on signal strength and capability.
Q: How many APs do I need for a larger building?
A: Coverage is rated to 140 m² (≈1,500 ft²). A typical 2,000–3,000 ft² office or small hotel will benefit from 2–3 units. A UniFi controller optimizes roaming between them. For site surveys and capacity planning, contact your systems integrator.
Q: Does the U7-PRO-WALL support VLAN isolation for guest networks?
A: Yes. It supports guest networks, VLAN isolation, and RADIUS-assigned VLANs via a UniFi controller. This is useful for coworking spaces, retail, and hospitality where you need separate traffic paths for tenants or customers without deploying a second AP.
Eden PhillipsPerspective based on aggregated and affiliated engineering team experience.
I've deployed the U7-PRO-WALL in small commercial and residential spaces where aesthetics matter as much as throughput. The 1.4" flush form factor is genuinely unobtrusive—much more so than a traditional ceiling mount or wall-boxy AP. The key technical win here is the 5.8 Gbps 6 GHz rate on the U7-PRO-WALL; that's meaningful when you're supporting video conferencing or guest office work without a controller managing everything.
Technical Highlights:
- 5.8 Gbps 6 GHz, 4.3 Gbps 5 GHz Max Data Rates: For a room with 20–30 simultaneous users doing document editing or video calls, this headroom prevents saturation. Compared to WiFi 6E, you're looking at roughly 30–40% higher peak throughput on the newest band.
- 22W PoE+ Draw: Leaves breathing room on a PoE+ switch. If you're daisy-chaining 3–4 APs on a single 48-port switch, the U7-PRO-WALL doesn't force you into power-supply planning hell. Compare that to older APs that crept toward 30W.
- 300+ Concurrent Clients Across Three Bands: Not a bottleneck for small-office or retail scenarios. The dual 2x2 MIMO per band ensures even distribution. You won't see frame drops at 40 users.
Deployment Considerations:
- Wall cavities and concrete block reduce 6 GHz range measurably. If your building has thick masonry between rooms, plan secondary APs or fall back on the 5 GHz band for inter-room roaming.
- Standalone mode works fine for small retail or single-unit residential, but you lose band steering and VLAN isolation. If you're building out a multi-floor office or hotel, budget for a UniFi controller—the RRM (radio resource management) alone pays dividends.
Deploy the U7-PRO-WALL in boutique retail, small-office call centers, or residential units where you need seamless WiFi without a box on the wall. It's not the right choice for large warehouses (use outdoor pole-mounted APs) or ultra-high-density stadiums (that's an Ubiquiti UDM or cloud-gateway territory), but for 1,500 ft² coverage with 20–40 devices, it's nearly invisible and performs solidly.
