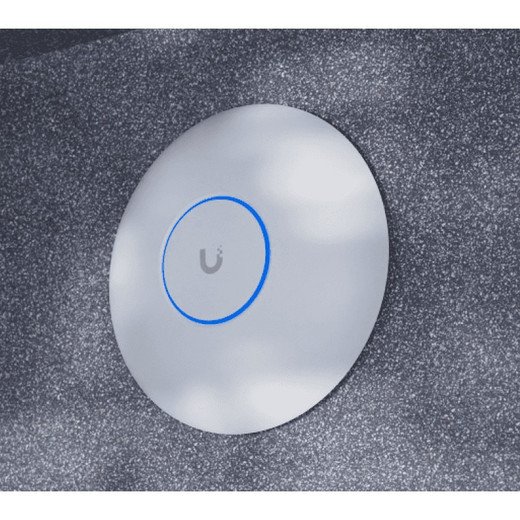

Ubiquiti U7-LR-US WiFi 7 Access Point

Ubiquiti U7-LR-US WiFi 7 Access Point

Overview

The Ubiquiti U7-LR-US is a compact, ceiling-mountable WiFi 7 (802.11be) access point engineered for medium-to-large coverage deployments. Built around five spatial streams and dual-band architecture (2.4 GHz and 5 GHz), the U7-LR-US delivers extended signal range suitable for enterprise, hospitality, warehouse automation, and distributed network environments where consistent, high-capacity wireless is non-negotiable. Wall and ceiling mounting options provide installation flexibility in standard commercial and institutional settings.

Key Features

• WiFi 7 (802.11be) with Five Spatial Streams: Five spatial streams allow the U7-LR-US to transmit and receive multiple data streams simultaneously, multiplying effective throughput compared to lower-stream designs. This directly reduces latency for real-time applications — warehouse scanning, video surveillance, IoT sensor feeds — where milliseconds matter.
• Dual-Band Architecture (2.4 GHz and 5 GHz): The 2.4 GHz band penetrates walls and obstacles better, reaching devices farther from the AP; the 5 GHz band offers higher data rates where line-of-sight exists. This split lets you deploy a single unit into challenging floorplans without sacrificing throughput on devices close enough to use the faster band.
• Backward Compatibility with 802.11a/b/g/n/ac/ax: Your existing WiFi 5 and WiFi 6 devices — cameras, printers, mobile terminals, access control readers — continue to function without replacement. The U7-LR-US negotiates the best standard each client supports, so legacy hardware stays productive while new devices benefit from WiFi 7 speeds.
• PoE Power (802.3af): Draws under 13W via standard 802.3af PoE, eliminating the need for a separate AC line to the ceiling or wall. One network cable delivers both data and power, simplifying installation and reducing failure points. Your existing PoE switch ports support it without strain.
• UniFi Network Management Ecosystem Integration: Centralizes configuration, monitoring, and firmware updates across all access points from a single controller — whether running on-premises or in the cloud via UniFi Cloud. Guest networks, VLAN assignment, band steering, and airtime fairness are all configurable without touching individual APs. Multi-site operators benefit from consistent policy deployment across dozens of locations.
• Compact, Ceiling-Mount Form Factor: Low-profile design fits above drop ceilings without drawing attention. Mounting template and hardware simplify installation in retrofit and new builds alike. Mounting flexibility (wall or ceiling) adapts to site constraints without requiring alternative SKUs.

Integration and Compatibility

The U7-LR-US integrates seamlessly into the UniFi access point family, allowing you to mix this model with other Ubiquiti APs in the same network. It pairs with Ubiquiti's controller software for centralized management of user policies, SSID broadcast, security settings, and performance analytics. Because it supports the full 802.11 legacy stack, it will coexist with older clients without negotiation delays or fallback performance penalties.

Deployment Considerations

Choose the U7-LR-US when you need extended range coverage across a single large space or multi-story building with moderate client density. Five spatial streams mean higher per-user bandwidth, so environments with 50+ concurrent connected devices (IoT sensors, video streams, mobile terminals) benefit from the parallel transmission capacity. If your deployment is smaller or confined to a single room, a lower-cost, lower-stream AP from the Ubiquiti catalog may be more cost-effective. For environments requiring redundancy or load-balancing across multiple APs, plan your wireless network architecture with an engineer to avoid co-channel interference and ensure handoff stability.

What's in the Box

Documentation is available via the manufacturer's support portal. Verify exact contents and mounting hardware specifications with your specialty distributor before installation.

Frequently Asked Questions

Q: Does the U7-LR-US work with existing UniFi controllers running older software versions?

A: Compatibility depends on your controller version. Ubiquiti publishes supported hardware matrices by firmware release. Verify your controller software version against the U7-LR-US datasheet before deployment to avoid adoption or management issues.

Q: Can I wall-mount the U7-LR-US instead of ceiling-mounting it?

A: Yes. The U7-LR-US supports both wall and ceiling mounting. Wall placement may reduce coverage range in some directions, so verify signal strength across your target area before finalizing placement.

Q: What PoE switch specifications do I need to power the U7-LR-US?

A: The U7-LR-US draws under 13W and operates on standard 802.3af PoE (15.4W available per port). Any managed or unmanaged PoE switch with 802.3af capability will power it without additional adapters.

Q: Does the U7-LR-US support guest network isolation and VLAN tagging?

A: Yes, when managed through the UniFi controller. Guest networks, VLAN assignment, and traffic isolation are configured at the controller level and apply across all connected APs, including the U7-LR-US.

Q: How does the U7-LR-US handle band steering between 2.4 GHz and 5 GHz?

A: Band steering is a UniFi controller feature that intelligently moves capable clients from the congested 2.4 GHz band to the faster 5 GHz band when signal strength permits. Enable it in the controller to reduce 2.4 GHz load and increase overall network throughput.

Q: Is firmware update automatic, or must I update manually via the controller?

A: Updates are managed through the UniFi controller interface. You can enable auto-update on a schedule or deploy firmware manually to test before rolling out across multiple APs.

Eden Phillips

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The U7-LR-US (often searched as U7 LR US) hits a sweet spot for integrators deploying WiFi 7 into existing UniFi estates without tearing out infrastructure. Five spatial streams mean this unit can shoulder higher client density than previous-generation APs — meaningful in warehouse automation and enterprise campuses where dozens of IoT devices and mobile terminals contend for airtime. The sub-13W PoE draw is a real plus; you won't have to upgrade your switch power budget or run special injectors.

Technical Highlights:

• Five Spatial Streams (802.11be): Parallel transmission paths reduce contention and latency — each stream carries independent data, so a single AP can service more concurrent clients at higher throughput than three-stream or four-stream competitors. In a 50+ device environment, you see real-world throughput gains over legacy WiFi 6.
• PoE 802.3af Compliance under 13W: Standard 48V PoE switch ports power this unit without upgrade. Run one network cable from your switch to the ceiling, no separate AC line, no injector needed. Cuts installation labor and eliminates an extra failure point.
• Dual-Band with Backward 802.11ac/ax Support: Existing WiFi 5 and WiFi 6 clients negotiate seamlessly; you don't wait for firmware or driver updates to bring older equipment online. New WiFi 7 devices get the speed, old ones stay functional.

Deployment Considerations:

• UniFi controller version lock: the U7-LR-US may require a recent controller release. Verify compatibility before ordering if you're running older on-premises UniFi software or have cloud controller version constraints.
• Coverage planning matters. Five spatial streams don't overcome poor antenna placement or excessive path loss through metal studs and masonry. Site survey and signal strength verification are not optional — especially if you're consolidating multiple older APs into fewer U7-LR-US units.

Deploy the U7-LR-US when you're ready to standardize on WiFi 7 and your client base is dense enough to justify the five-stream investment. If you're replacing a single older AP in a light-usage area, a lower-cost model will suffice. If you're building a high-density warehouse automation network or campus-wide rollout, the U7-LR-US is a rational engineering choice — not marketing.
