Ubiquiti U7-LITE-US WiFi 7 Access Point
Overview
The Ubiquiti U7-LITE-US is a compact, ceiling-mountable WiFi 7 access point engineered for high-density wireless deployments in enterprise offices, retail locations, and hospitality environments. This model delivers multi-gigabit throughput via a 2.5 GbE uplink while maintaining a small form factor that integrates cleanly into drop-ceiling installations. The U7-LITE-US operates on both 2.4 GHz and 5 GHz bands, supports full backward compatibility with 802.11a/b/g/n/ac/ax/be standards, and integrates with the Ubiquiti UniFi ecosystem for centralized management across distributed sites. PoE power eliminates the need for dedicated AC infrastructure at each access point location.
Key Features
- WiFi 7 with 4 Spatial Streams: Delivers significantly higher aggregate throughput than WiFi 6 deployments in the same footprint. Four spatial streams mean the radio can transmit and receive data on more independent channels simultaneously — translates to less congestion and better per-client performance in dense environments where dozens of devices connect to a single AP.
- 2.5 GbE Uplink: Uplinks to your core switch at 2.5 Gbps instead of 1 Gbps — removes the backhaul bottleneck for high-throughput applications like video conferencing, file transfers, and real-time warehouse automation workflows. Matters most in edge installations where multiple APs feed a single wired connection.
- Dual-Band 2.4 GHz and 5 GHz: 2.4 GHz extends range and improves wall penetration for legacy and IoT clients; 5 GHz carries high-bandwidth devices and reduces interference in crowded RF environments. Band steering (via UniFi controller) automatically directs capable clients to the optimal band.
- PoE Powered (802.3af): Draws power solely via Ethernet — no separate 12V supply runs required. Simplifies installation in retrofit scenarios and reduces cost-per-location when deploying dozens of APs across a warehouse or multi-floor office.

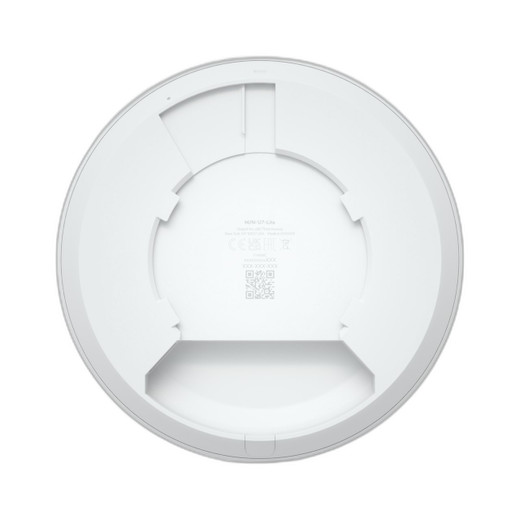

- Compact Ceiling Mount Design: Smaller than prior-generation enterprise APs; fits standard drop ceilings without requiring custom framing. Minimal visual footprint in customer-facing spaces like retail floors or hotel lobbies.
- UniFi Management Integration: Configure, monitor, and update all U7-LITE-US units from a single UniFi controller (cloud or on-premises). Guest portals, band steering, airtime fairness, and rogue AP detection are built-in. Simplifies operational overhead when managing 10s or 100s of APs across multiple sites.
- Full Standard Backward Compatibility: Supports 802.11a/b/g/n/ac/ax/be — older devices won't be forced off the network, but modern clients get WiFi 7 speeds. Zero disruption during upgrade cycles.
Integration & Compatibility
The U7-LITE-US is built for enterprise WiFi deployments that require centralized control. It pairs seamlessly with UniFi Dream Machines, UniFi Dream Machine Pro, and third-party UniFi controllers running version 8.0 or later. For network infrastructure planning, confirm your PoE switch or injector supplies adequate power (U7-LITE-US draws under 15W) and that your uplink supports 2.5 GbE throughput where clients demand it. VLAN tagging, guest networks, and SSID segmentation are all managed through UniFi software — no per-AP configuration needed.
When to Choose a Different Model
If you require outdoor WiFi 7 coverage, consider a higher-end outdoor variant from the Ubiquiti UniFi lineup. If ceiling space is unavailable and you need wall-mount only, evaluate compact wall-mount WiFi 6 models within the same family. The U7-LITE-US prioritizes compact form factor and standard PoE efficiency — if you need maximum coverage area from a single AP or extensive wired backhaul upgrades are not feasible, a dual-port or mesh-capable variant may better suit your topology.
Frequently Asked Questions
Q: Is the U7-LITE-US backward compatible with older WiFi clients?
A: Yes. It supports 802.11a/b/g/n/ac/ax/be, so devices using WiFi 5, WiFi 4, or older standards will connect and function normally. WiFi 7-capable clients will receive faster speeds; older clients operate at their native standard.
Q: Can I power the U7-LITE-US with standard PoE (802.3af)?
A: Yes. The U7-LITE-US draws under 15W, well within 802.3af limits (15.4W). A standard PoE injector or PoE switch port will power it without any special high-power PoE infrastructure.
Q: Does the U7-LITE-US require a UniFi controller?
A: It is designed to be managed by a UniFi controller (cloud or on-premises). Standalone mode with limited features is possible, but centralized management through UniFi is the standard deployment model and where its value is realized.
Q: What is the coverage range of the U7-LITE-US in typical office environments?
A: Coverage depends on obstacles, interference, and client device capabilities. In open office space with minimal obstructions, expect 2.4 GHz to cover 100–150 feet; 5 GHz typically covers 50–100 feet due to higher frequency attenuation. Drywall, metal framing, and RF interference reduce range.
Q: Can I upgrade from WiFi 6 APs to the U7-LITE-US without replacing the entire network?
A: Yes. The U7-LITE-US coexists with any prior UniFi AP model. Mix and match across sites or buildings, and manage all from one UniFi controller. Clients will roam between AP generations transparently.
Q: What is the typical deployment density for the U7-LITE-US?
A: In high-density enterprise environments (call centers, warehouses, large retail floors), plan one AP per 1500–2000 sq ft for continuous coverage and consistent performance. Your specific throughput demand and RF environment will dictate density.
Eden PhillipsPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The U7-LITE-US (often searched as U7 LITE US) solves a real problem in enterprise WiFi upgrades: how to deploy WiFi 7 without wholesale infrastructure replacement. The 2.5 GbE uplink is the critical spec here — it eliminates backhaul congestion that kills throughput gains in dense environments. Pair it with your existing PoE-powered switch infrastructure and you're not pulling new AC runs or upgrading power distribution at ceiling height.
Technical Highlights:
- 2.5 GbE Uplink: Removes the 1 GbE bottleneck that WiFi 6 APs face in high-throughput scenarios. If you're deploying 10+ APs in a single building or pushing video/file-transfer workloads, that 2.5x bandwidth headroom directly cuts client wait times and improves aggregate network saturation.
- 4 Spatial Streams on WiFi 7: Each additional spatial stream increases the independent data pathways between the AP and clients. Four streams mean better peak throughput per client and more simultaneous high-speed conversations — real advantage in classrooms, call centers, or warehouse zones with 50+ connected devices per AP.
- Sub-15W PoE Draw: Doesn't stress your PoE switch power budget — crucial if you're running budget-conscious infrastructure or retrofitting older buildings where main power is limited. Standard 802.3af injectors work fine; no PoE+ hunting required.
Deployment Considerations:
- Ceiling mounting in drop ceilings is clean and invisible to end users, but confirm your building has accessible return-air paths for adequate ventilation. APs in sealed ceiling plenums can overheat under sustained load.
- The 2.5 GbE uplink is only as good as your switch. If you're daisy-chaining these APs into a 1 GbE edge switch, you've negated the backhaul advantage — ensure your distribution switch has gigabit or faster ports per AP.
- UniFi controller is mandatory for advanced features (guest portal, band steering, rogue AP detection). Standalone mode exists but is crippled — budget for a UniFi Dream Machine or controller license in your deployment cost.
Best fit: multi-story offices, retail chains rolling out unified WiFi, or warehouse automation zones where client density and throughput demand both justify the step up from WiFi 6. Skip this if coverage area is your primary constraint — a strategically placed WiFi 6 outdoor model might serve better in low-density rural or outdoor scenarios.
