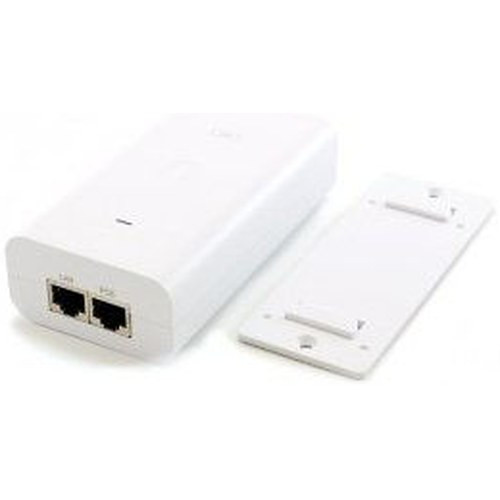

Ubiquiti POE-54V-80W PoE Injector
Overview
The Ubiquiti POE-54V-80W is a passive PoE injector engineered to supply 54VDC at up to 1.5A (80W maximum) to powered devices over standard Ethernet cable. This external adapter integrates surge and transient protection, making it suitable for outdoor and harsh-environment deployments where equipment reliability matters. Operating efficiency of 87% or higher means less thermal load in rack and field installations — a real factor when power supplies are stacked in equipment closets or outdoor enclosures.
Key Features
- 80W Power Delivery at 54VDC: Supplies 1.5A over Ethernet, covering high-draw devices like outdoor APs, thermal PTZ cameras, and wireless backbone links without needing a separate high-voltage run. Verify your powered device's draw against the 80W ceiling — passive PoE adapters are not interchangeable across voltage classes.
- Passive PoE Architecture (2-pair and 4-pair capable): Works with both 2-pair (data on pins 1, 2, 4, 5; power on pins 3, 6, 7, 8) and 4-pair passive topologies. Compatible with Ubiquiti UniFi and UISP devices rated for 54V, plus third-party 54V passive PoE systems. Confirm your endpoint's passive PoE spec — this is voltage-specific and not backward-compatible with 802.3af or 802.3at.
- 1500A Surge Discharge (8/20 µs) and 36A Peak Pulse Current (10/1000 µs): Protects downstream equipment from transient spikes and lightning-induced voltage surges. Response time under 1 nanosecond means protection engages before surge energy reaches sensitive circuits — essential in outdoor and RF-adjacent installations.
- Differential and Common Mode Clamping: Isolates control (data) circuits at 11V and power circuits at 60V, preventing cross-coupling faults and ground loops when PoE and data sharing the same cable.
- 87%+ Operating Efficiency: Translates to minimal wasted heat and lower power draw from your AC supply. In 24/7 outdoor enclosures or telecom huts, efficiency compounds into lower cooling demand and longer equipment lifespan.
- Gigabit Ethernet Pass-Through: Data integrity is maintained end-to-end — no packet loss or throughput degradation on the connected Ethernet port.
- Compact External Form Factor (123 × 65 × 34 mm): Fits into tight mounting spaces, wall brackets, or DIN-rail enclosures without occupying significant rack real estate. IEC-320 C6 input connector accepts standard grounded power cords.
- 0–40°C Operating Range: Suitable for controlled indoor and mild outdoor environments. If you need sub-zero or high-temperature operation, specify alternatives with extended ratings.
- CE, FCC, IC, UL Certified; NDAA Section 889 Compliant: Meets regulatory and government procurement requirements. If you're deploying into federal or critical infrastructure contracts, this compliance standing eliminates a procurement gate.
- Output Ripple: 1% Maximum: Low ripple means cleaner power delivery to sensitive RF and control electronics — important for wireless devices and precision timing-dependent equipment.
Integration and Compatibility
Deploy the POE-54V-80W with Ubiquiti surveillance and wireless systems specified for 54V passive PoE. Typical endpoints include UniFi Protect cameras, UISP wireless links, and EdgePoint routers. If integrating a multi-camera NVR or enterprise storage solution, ensure the PoE infrastructure budget accounts for aggregate power draw — a single 80W injector covers one high-power device, not a daisy-chained array. Use PoE planning resources to calculate total wattage and injector count for your deployment footprint.
When to Choose a Different Model
If your powered devices draw less than 30W, consider lower-wattage passive PoE injectors to reduce operational cost and thermal overhead. If you require 802.3af or 802.3at standard PoE (48VDC at lower amperage), this 54V injector is incompatible — verify your endpoint's voltage class before ordering. For installations demanding redundant power feeds or failover capability, plan for two injectors wired to independent circuits.
Frequently Asked Questions
Q: Can I use the POE-54V-80W with standard 802.3af or 802.3at PoE devices?
A: No. The POE-54V-80W is a passive PoE injector operating at 54VDC. Standard PoE (802.3af/at) operates at 48VDC and uses a different protocol. Connecting a 54V injector to a 48V device may damage the endpoint. Always verify your powered device's voltage specification before ordering.
Q: What's the difference between passive PoE and standard 802.3 PoE?
A: Passive PoE injects power directly onto the Ethernet pins without negotiation; standard PoE (802.3af/at/bt) includes a handshake protocol and power classification. Passive PoE is simpler but demands devices explicitly designed for it. The POE-54V-80W requires endpoints rated for 54V passive operation.
Q: How do I calculate if 80W is enough for my deployment?
A: Add up the power draw of each device connected to this injector. Outdoor PoE cameras typically draw 12–25W; wireless APs may draw 30–50W. If your total draw exceeds 80W, you need multiple injectors on separate circuits. Check the device datasheets for max power consumption, not nominal.
Q: Is the POE-54V-80W suitable for outdoor mounting?
A: The injector is rated 0–40°C operating temperature and includes surge protection, making it suitable for sheltered outdoor enclosures and mild climates. For extreme cold, heat, or direct weather exposure, house it in a weatherproof cabinet or use the shorter cable run from indoor PoE equipment to outdoor endpoints.
Q: What certifications does the POE-54V-80W carry?
A: CE, FCC, IC, and UL listed. It is also NDAA Section 889 compliant, satisfying federal procurement restrictions on certain foreign-sourced equipment.
Q: Does the POE-54V-80W support redundancy or failover?
A: A single injector is a single point of failure. For mission-critical deployments, plan two injectors wired to independent power sources and configure the powered device to accept power from either feed, or deploy a supervised power distribution system downstream.
Eden PhillipsPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The POE-54V-80W is a straightforward but critical link in any 54V passive PoE deployment. I see this injector used heavily in Ubiquiti wireless backbone networks and outdoor camera systems where single-cable runs simplify installation and reduce ground-loop risk. The voltage and power spec (54VDC @ 1.5A, 80W max) are non-negotiable — verify your endpoints match this requirement before wiring.
Technical Highlights:
- 1500A Surge Discharge (8/20 µs) Response < 1 ns: Lightning and switching transients get clamped before they propagate into your equipment. In rural or RF-rich sites, this protection pays for itself the first time it prevents a camera or AP failure.
- 87%+ Efficiency Means Real Power Savings: Running 80W at 87% efficiency draws ~92W from the AC line instead of ~110W at 75% efficiency. Over a year of 24/7 operation, that's roughly $20–30 saved per injector. More importantly, less wasted heat reduces cooling demand in outdoor enclosures.
- Output Ripple 1% Maximum: Clean power delivery to RF equipment and wireless endpoints is non-trivial. Ripple above 3–5% can degrade link quality and increase packet retransmission — this injector stays well below that threshold.
Deployment Considerations:
- Voltage Specificity Is Non-Negotiable: I've seen integrators accidentally order a 48V standard PoE injector for a 54V deployment (or vice versa). The POE-54V-80W is passive-only and 54V-specific. Triple-check endpoint datasheets before you wire it in.
- Wattage Ceiling: The 80W limit is hard. If you're running a high-power outdoor AP (40–50W) plus a thermal camera (25–35W), you exceed capacity. Plan separate injectors for separate devices, or consolidate power distribution in a supervised rack-mounted unit.
- Outdoor Thermal Stress: The 0–40°C operating range is respectable but not extended-temp. In desert or arctic deployments, mount the injector in a temperature-controlled box or move it indoors with cable runs to endpoints.
The POE-54V-80W is the right choice for single high-power endpoint sites — outdoor APs, thermal cameras, or wireless backbone bridges — where Ubiquiti 54V passive equipment is already specified. For multi-device sites or mixed voltage environments, plan your power distribution before purchasing.
