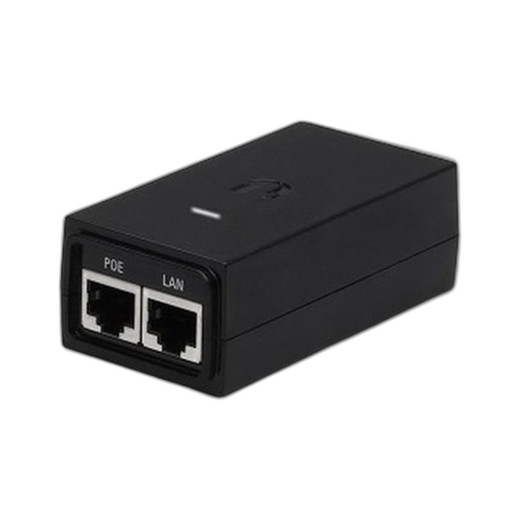

Ubiquiti POE-24-12W 24V Passive PoE Injector
Overview
The Ubiquiti POE-24-12W is a passive midspan PoE injector engineered to deliver 24V DC at 12W to network-connected devices without requiring modification to end equipment or active switch intelligence. This form factor allows straightforward insertion into existing Ethernet runs—the injector sits between your switch and endpoint, conditioning power onto the same pair structure that carries data.
The POE-24-12W operates entirely passively, meaning no firmware updates, no management interface, and no power consumption monitoring. For infrastructure deployments where distributed antenna systems, remote network equipment, or edge access points must receive supplemental power without bringing in separate cabling, this injector eliminates that complexity. Weight of 0.450 lb keeps installation footprint minimal in crowded wiring closets or wall-mount scenarios.
Key Features
- Passive 24V DC delivery at 12W: The 12W power budget supports low-to-mid consumption devices—think wireless bridge modules, small LED indicators, temperature sensors, or DIN-rail equipment in distributed antenna systems. If your endpoint draws more than 12W, this injector will not sustain it; verify the device's power draw before deployment to prevent shutdown or malfunction.
- Midspan form factor: Installs between existing switch and device. No need to replace existing infrastructure or reconfigure switch ports. Plug one Ethernet cable into the injector input, connect the powered output to your endpoint, then connect the separate DC power source (not included) to the injector's power jack.
- No active management: Unlike managed PoE switches, the POE-24-12W has no CPU, no SNMP, no power monitoring, no alerts. This eliminates configuration burden but also means you lose visibility into whether the injector is actually delivering power—your only feedback is whether the attached device turns on.
- Passive design simplicity: No thermal management needed, no firmware to update, minimal failure modes. In field environments where serviceability and simplicity are valued over granular telemetry, passive injection is an asset.
- China-manufactured: Standard Ubiquiti supply chain. Standard RoHS compliance applies; verify environmental certifications against your procurement requirements if applicable.
- Verify 24V device compatibility: Not all PoE devices accept 24V. Standard 802.3af and 802.3at endpoints typically expect 48V. Confirm your target device's power input specification before connecting the POE-24-12W, or risk equipment damage. Check the device datasheet for acceptable voltage range and maximum power draw.
Integration & Compatibility
The POE-24-12W integrates with any Ethernet infrastructure using passive injection. It does not require a companion switch or controller. However, because it is a passive device, it offers no negotiation or handshake with endpoints—power is delivered constantly whenever the injector is powered. Some devices may not tolerate always-on power delivery; verify the endpoint can handle continuous 24V injection without automatic power management.
The injector is part of Ubiquiti's broader Ubiquiti IP infrastructure family and complements deployments where managed PoE switches would introduce unnecessary cost or complexity. For centralized power distribution across many devices, a managed PoE infrastructure is more scalable; for one or two remote endpoints, the POE-24-12W (often searched as POE 24 12W) is a direct, low-cost solution.
Typical Deployment Scenarios
- Remote wireless bridge or small access point powered at the far end of a long Ethernet run.
- Distributed antenna system nodes requiring supplemental 24V injection where a managed switch is impractical.
- Edge network appliances or sensors in warehouse automation or industrial IoT setups needing power without a second cable run.
Frequently Asked Questions
Q: Can I use the POE-24-12W with standard 48V PoE devices?
A: No. The injector delivers 24V DC only. Standard 802.3af/at devices expect 48V and will not function properly if fed 24V. Always verify your endpoint device accepts 24V input before deploying this injector.
Q: Does the POE-24-12W include a DC power supply?
A: No. The injector itself requires external AC/DC power (specifications for input voltage not detailed in available documentation). Confirm the required power specification and supply voltage before purchase.
Q: Is the POE-24-12W managed or unmanaged?
A: Completely unmanaged and passive. There is no web interface, SNMP, or power monitoring. Power is delivered whenever the injector is powered and the endpoint is connected. This simplicity is by design but means you have no visibility into power delivery failures.
Q: What happens if my endpoint draws more than 12W?
A: The injector may fail to sustain voltage or shut down to protect itself. Always verify the target device's maximum power consumption is at or below 12W before deployment.
Q: Can the POE-24-12W be used outdoors?
A: Not without an outdoor-rated enclosure. The injector itself does not carry an IP rating for weather exposure. Mount it indoors or in a weatherproof cabinet if outdoor deployment is required.
Q: Is the POE-24-12W suitable for mission-critical applications?
A: The lack of management, monitoring, and redundancy makes it best suited to non-critical supplemental power. For mission-critical endpoints, a managed PoE switch with redundancy and alerting is more appropriate.
Eden PhillipsPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The POE-24-12W is a no-nonsense passive injector for edge deployments where you need 24V power on a single run and can't justify a managed switch. The 12W budget is tight—verify your endpoint actually draws under 12W, because once you're over that threshold, the injector becomes a bottleneck, not a solution. Ubiquiti built this for simplicity, not monitoring; that's both a strength and a weakness depending on your comfort level with blind power delivery.
Technical Highlights:
- 24V passive delivery at 12W maximum: Sufficient for lightweight remote nodes, edge sensors, and low-power wireless modules. Anything drawing 13W or more will starve or cause the injector to fold back voltage or shut down completely—a gotcha worth testing in staging.
- Midspan insertion: Sits between switch and device. No switch firmware or port reconfiguration required. Minimal footprint at 0.450 lb makes wiring-closet mounting or remote-site deployment practical without adding bulk.
- Completely passive architecture: No firmware updates, no CPU, no SNMP polling, no power budget reporting. Simplicity cuts both ways: reduced failure points, but zero telemetry if power delivery fails. You'll only discover a problem when the endpoint stops responding.
Deployment Considerations:
- Always verify the target endpoint's voltage spec accepts 24V DC. Feeding a 48V-only device with 24V will likely cause permanent damage or immediate shutdown without clear indication of why.
- The 12W cap is a hard ceiling. Do not assume headroom; if the spec says a device draws up to 15W under peak load, the POE-24-12W will not support it reliably. Test power draw in your lab environment before field deployment.
- No outdoor environmental rating on the injector itself. If it sits outside or in a humid enclosure, protect it with a weather-sealed cabinet or move it indoors to a controlled location.
The POE-24-12W is a practical fit for small distributed antenna systems, remote temperature sensors, or wireless bridge nodes already specified to accept 24V input. For multi-device sites or mission-critical endpoints, a managed PoE switch with redundancy and power monitoring adds cost but eliminates the blind-delivery risk. Use the POE-24-12W where simplicity and low cost matter more than visibility.
