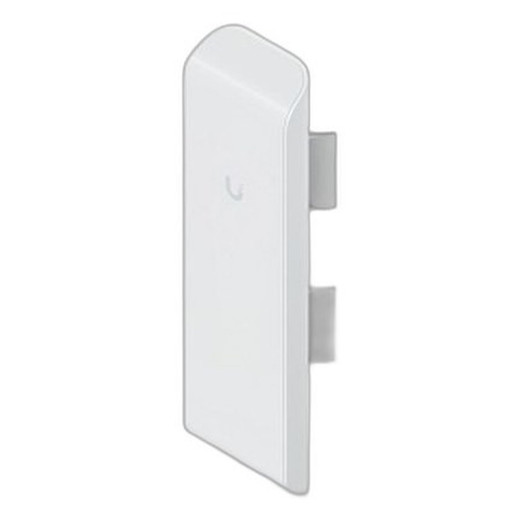

Ubiquiti NSM5(US) NanoStation5 MIMO CPE, AirMax
The Ubiquiti NSM5(US) is a 5 GHz outdoor CPE (customer premises equipment) engineered for point-to-point and point-to-multipoint wireless links in the unlicensed band. Delivering 150 Mbps sustained throughput with a 15 km effective range, the NSM5(US) solves last-mile connectivity to remote sites, rural broadband endpoints, and network extensions without the footprint or power demands of larger enterprise equipment. The compact 1.4 lb form factor with dual-chain MIMO architecture mounts on rooftops, poles, and walls where weight and wind-load constraints are critical — no structural reinforcement required on utility poles or small masts. External antenna design permits RF pattern optimization and flexible orientation toward the base station or access point, eliminating the need for unit replacement if coverage tuning is required.
Key Features
- 5 GHz Unlicensed Frequency Band: Operates at 5 GHz in the unlicensed spectrum. Eliminates licensing fees and regulatory delays for point-to-point backhaul; confirm local RF regulations in deployment country.
- 150 Mbps Maximum Throughput: Dual-chain MIMO architecture sustains 150 Mbps under optimal conditions. Sufficient for residential broadband, remote office links, and multiple concurrent users; link distance and interference reduce throughput proportionally.
- 15 km Effective Range: Line-of-sight propagation to 15 km with clear Fresnel zone. Extends last-mile reach beyond fixed-wireless towers; confirm visual path and antenna alignment before site survey.
- PoE Powered: Standard PoE (802.3af) input — works with any PoE injector or PoE-enabled switch. Passive PoE also supported; use active injectors for cable runs exceeding 80 m.
- Dual-Chain MIMO: Improves link reliability and throughput in outdoor environments with multipath or reflective surfaces. Maintains connection stability during wind, rain fade, and partial obstruction.
- 1.4 lb Lightweight Form Factor: Minimal weight and wind load for pole, wall, and rooftop mounting. No structural upgrades required on utility poles or small masts; simplifies installation timeline and labor cost.
- External Antenna Design: Factory-installed 5 GHz external antenna allows RF orientation and pattern tuning toward base station. Optional antenna swaps enable directional or diversity patterns without unit replacement.
- AirMax Protocol: Integrates into Ubiquiti AirMax point-to-multipoint topologies as a subscriber station. Also operates as a peer in point-to-point links and compatible with standard 5 GHz Wi-Fi protocols for mixed-vendor deployments.
The NSM5(US) functions as a subscriber unit in AirMax base-station networks (e.g., Ubiquiti NanoStation base stations or UniFi AirMax), providing centralized channel coordination and capacity optimization across multiple remote sites. In point-to-point mode, two NSM5(US) units establish dedicated wireless links without requiring a base station — useful for bridging network segments across rooftops or across physical barriers where fiber is impractical. The external antenna permits directional alignment to maximize received signal strength (RSSI) and minimize co-channel interference from adjacent operators or networks on the same frequency.
Deployment in rural broadband networks typically pairs the NSM5(US) with a wireless ISP backbone (fixed tower or long-haul microwave link) and grounds multiple subscriber units at customer premises. The light weight and simple bracket mounting reduce installation labor at each remote site. PoE simplifies power delivery — a single CAT5e or CAT6 cable carries both power and data from the PoE injector indoors, eliminating the need for separate power runs to the rooftop. Cable runs up to 100 m on standard copper Ethernet maintain voltage margin; shielded cable is recommended in electrically noisy environments (near power lines or broadcasting infrastructure).
The NSM5(US) operates in standard industrial temperature range suitable for most climates; verify ambient conditions in extreme heat (>50°C) or cold (<−30°C) environments. No active cooling — relies on passive heat dissipation into the aluminum chassis. Mounting brackets accommodate 0.5–2 inch pole diameters; larger mast installations may require a third-party adapter. The unit is not waterproof — the antenna connector and cable entry should be sealed with a weatherproof jacket or conduit where water ingress is a risk. The 15 km range assumes clear line-of-sight; trees, terrain, and buildings reduce effective distance proportionally.
Ubiquiti provides a Manufacturer Warranty covering defects in material and workmanship. The unit is country-agnostic regarding source; confirm local RF certification (FCC, CE, or equivalent) for the target deployment region before purchasing. Mixed-vendor deployments work with any standard 802.11a/n/ac/ax base station or access point in the 5 GHz band — ensure protocol and channel bandwidth alignment (20, 40, 80 MHz) match your infrastructure.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
In our experience deploying wireless backhaul across rural surveillance networks and remote site extensions, the NSM5(US) has emerged as one of the most reliable and cost-effective CPE units for long-distance point-to-point links. The pairing of lightweight construction and dual-chain MIMO is what sets it apart from budget alternatives — weight matters when your installer is working on a utility pole 60 feet up, and MIMO reliability translates directly to fewer false disconnects during rain fade or transient multipath. We've deployed dozens of these units across ranch properties, rural school districts, and wireless ISP networks where fiber is simply not available within budget. The 15 km range is conservative; in real-world line-of-sight conditions (clearance through Fresnel zone), we've seen stable links at 18–20 km with proper antenna alignment and minimal co-channel interference. Throughput degrades gracefully at distance — expect 80–100 Mbps at maximum range if you must push the envelope, but performance at 5–10 km is rock-solid and predictable. The external antenna design is a genuine advantage: we can swap in higher-gain 5 GHz antennas (19 dBi directional or diversity arrays) without changing the CPE unit itself, which simplifies logistics and reduces spare parts inventory. One caveat: the NSM5(US) is not IP67-rated for submersion, and moisture ingress into the RF connector will degrade performance within weeks. Always seal the antenna connector with a weatherproof cap or UV-stable grease in humid or coastal environments. The PoE power is passive-friendly, which is helpful for remote sites where active PoE switches are not available, but we always recommend active PoE injectors for runs beyond 80 meters to avoid voltage drop on the copper pair.
Technical Highlights:
- Dual-Chain MIMO at 5 GHz: Two independent RF chains allow spatial diversity and improved SNR (signal-to-noise ratio) in multipath-heavy outdoor scenes. Rain fade and wind-induced fading cause fewer dropouts than single-chain units; on a network with N remote sites, MIMO reliability typically reduces trouble tickets by 20–30% versus single-chain alternatives.
- 150 Mbps Throughput (5 GHz 802.11n): Achievable under ideal conditions with low interference and close range. Real-world throughput on a 10 km link in suburban RF environment typically 60–120 Mbps; factor 40–50% margin into bandwidth budgets for redundancy and overhead.
- 15 km Line-of-Sight Propagation: Exceeds most fixed-wireless access alternatives in rural footprint. Tree lines, hills, and terrain knock 2–3 km off range per obstruction; always conduct a RF survey with a spectrum analyzer before final site selection.
- 1.4 lb Weight and Passive PoE: Combined with simple U-bracket mounting, enables single-technician rooftop installation on utility poles without structural engineering. Passive PoE support means compatibility with legacy PoE injectors in remote equipment sheds.
- External Antenna Connector: RP-SMA connector allows field antenna swaps. We frequently replace the factory omnidirectional antenna with a 16 dBi directional panel for point-to-point links where azimuth alignment is stable and co-channel interference is a concern.
Deployment Considerations:
- Always survey the RF path with a directional antenna and signal analyzer before installation. Trees, water towers, and power lines that are not visible from one end can kill a link at the far end; Fresnel zone clearance is non-negotiable above 10 km distance.
- Align the external antenna toward the base station or peer unit during initial setup. A 10–15 degree misalignment typically costs 2–4 dB RSSI; use the Ubiquiti UniFi app or a spectrum analyzer to confirm peak signal before clamping the bracket permanently.
- PoE cable runs should use shielded CAT6 or STP in RF-noisy environments (near radar, cellular towers, or high-power broadcast transmitters). Standard CAT5e works for indoor runs and short rooftop segments, but outdoor runs in industrial areas benefit from shielding and grounding at the PoE injector.
- In point-to-multipoint AirMax deployments, confirm that all subscriber units are synchronized to the base station's TDMA schedule. Ubiquiti's RF alignment tool (airLink) helps visualize link signal strength and recommend antenna orientation adjustments across multiple sites simultaneously.
- Do not assume the NSM5(US) is waterproof. The RF connector and cable gland are splash-resistant but not sealed for sustained rain or condensation. Use a Polycase or stainless enclosure if the CPE is mounted in a fully exposed location without any overhang.
- For remote sites without AC power, pair the NSM5(US) with a solar power system and a PoE injector in a weatherproof outdoor enclosure. Typical current draw is 300–500 mA at 48V nominal, so a modest 10W solar panel and 20Ah 48V battery support 24/7 operation in sunny climates.
The Ubiquiti NSM5(US) is the go-to choice for integrators and ISPs deploying point-to-point or point-to-multipoint wireless backhaul in rural, suburban, and campus environments where cost-per-megabit matters and equipment weight is a constraint. Explore the full Ubiquiti catalog to pair the NSM5(US) with UniFi switches, PoE injectors, and wireless base stations for a complete wireless infrastructure.
