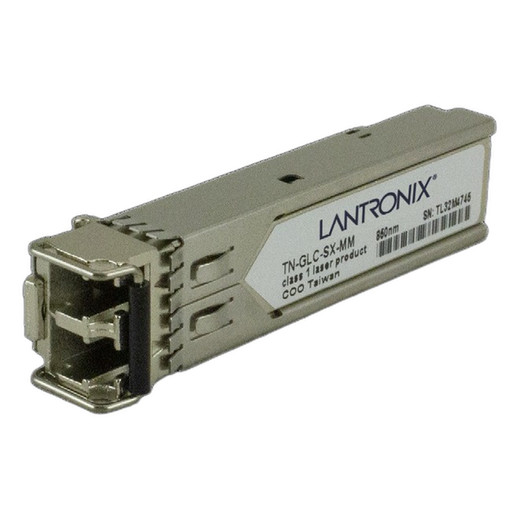

Transition Networks TN-GLC-SX-MMD SFP Gigabit Transceiver Module

Overview

The Transition Networks TN-GLC-SX-MMD is a hot-pluggable SFP (small form-factor pluggable) transceiver module designed to deliver Gigabit Ethernet connectivity over existing multimode fiber infrastructure. This module implements the 1000Base-SX standard and reaches distances up to 1800 feet—sufficient for campus backbones, building-to-building links, and data center interconnects where fiber cabling is already installed. The SFP form factor means it inserts directly into any standard SFP port on managed switches, routers, media converters, and other network equipment without requiring firmware updates or vendor-specific configuration.

Key Features

• 1000Base-SX Gigabit Standard: Delivers full 1 Gbps Ethernet throughput. Multimode fiber carriers this rate reliably over shorter distances than single-mode, making it ideal for intra-building and campus networks where multimode fiber is the established backbone.
• 1800-Foot Transmission Distance: Reaches approximately 550 meters, covering typical floor-to-floor and building-to-building runs without requiring repeaters or optical amplification. Verify actual fiber quality and cleanliness at LC connectors—dirty interfaces degrade performance.
• Standard SFP Form Factor: Plugs into any SFP-compatible slot on switches, routers, small form-factor network appliances, and fiber media converters. No driver installation, no power supply needed—insertion alone activates the transceiver.
• Multimode Fiber Optimized: Designed for 50 µm or 62.5 µm multimode cabling with LC duplex connectors. Do not pair with single-mode fiber or standard 1000Base-LX modules—fiber type mismatch causes signal loss and disconnection.
• Automatic Speed Negotiation: Recognizes autoneg signals from peer equipment and establishes link without manual intervention. Compatible with any ONVIF-compliant network gear, as well as proprietary vendor ecosystems (Cisco, Juniper, Extreme, etc.) that support standard SFP modules.
• Hot-Swap Capable: Install or remove the module while the switch remains powered and operational—useful for field upgrades, testing, or swapping failed units without taking the entire port offline.

Integration and Compatibility

The TN-GLC-SX-MMD (often searched as TN GLC SX MMD) installs into any standard gigabit SFP slot. Verify your switch or appliance has at least one available SFP port—many managed switches feature a mix of RJ-45 and SFP ports specifically for this purpose. The module requires multimode fiber cabling terminated with LC duplex connectors on both ends. If your current installation uses different connector types (SC, ST, or MT-RJ), you'll need a fiber adapter or recertified patch cables.

For network planning: multimode fiber supports fewer distance options than single-mode, so this transceiver is primarily suited to LANs and SANs under 2000 feet. Wide-area fiber links typically demand 1000Base-LX (single-mode) transceivers instead. When integrating into an existing network, confirm fiber type, test continuity with an optical time-domain reflectometer (OTDR), and clean all LC connections before insertion to avoid signal degradation.

Frequently Asked Questions

Q: Can I use the TN-GLC-SX-MMD with single-mode fiber?

A: No. This is a 1000Base-SX module designed exclusively for multimode fiber. Single-mode fiber has a much smaller core diameter and incompatible wavelengths. Using single-mode fiber with this module results in link failure or extreme signal loss. For single-mode deployments, specify a 1000Base-LX transceiver instead.

Q: What's the maximum cable run with the TN-GLC-SX-MMD?

A: The rated transmission distance is 1800 feet (approximately 550 meters) over multimode fiber. This assumes clean fiber and properly terminated LC connections. Dirty or damaged fiber, tight bends, or poor connector seating reduce this distance. Always test with a light meter or OTDR before going live.

Q: Does this transceiver require any drivers or software configuration?

A: No. The TN-GLC-SX-MMD is a passive optical module—insert it into an SFP slot, and the switch firmware detects it automatically. No driver installation, firmware upload, or configuration command is needed. It works with any vendor's switch that supports standard SFP modules.

Q: Is the TN-GLC-SX-MMD hot-swappable?

A: Yes. You can install or remove this module while the switch is running, without affecting other ports or requiring a reboot. This is useful for upgrades or troubleshooting in production environments, but allow a few seconds for the link to establish after insertion.

Q: What connector type do I need for the TN-GLC-SX-MMD?

A: The module terminates in an LC duplex connector. Both ends of your multimode fiber patch cables must use LC connectors. If your existing infrastructure uses SC, ST, or other connectors, you'll need fiber adapters or new patch cables cut to your required lengths.

Q: Can I use the TN-GLC-SX-MMD for long-distance WAN links?

A: No. The 1800-foot maximum distance is suitable for campuses and building interconnects, not wide-area links. For distances beyond 2000 feet, deploy 1000Base-LX (single-mode) transceivers, which support runs of several kilometers.

Ted Perry

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The TN-GLC-SX-MMD is a straightforward, reliable choice for multimode fiber environments where you need to extend Gigabit Ethernet across campus or building backbones. The 1800-foot transmission distance covers the vast majority of intra-campus runs without repeaters, and the standard SFP form factor means it integrates into nearly any managed switch or appliance without vendor lock-in or proprietary licensing. I've deployed these in education and enterprise data center expansions where the fiber cabling was already installed—zero configuration friction and consistent link stability.

Technical Highlights:

• 1000Base-SX Gigabit Delivery: Full 1 Gbps throughput over multimode fiber. Multimode is cost-effective for short to mid-distance runs and plays well with existing campus infrastructure that was built in the 1990s–2000s era.
• 1800-Foot Range (550m): Eliminates the need for repeaters or optical boosts for typical building-to-building and floor-to-floor runs. Fiber cleanliness and connector termination quality directly affect achievable distance—invest in proper testing and inspection on install day.
• Hot-Swap SFP Module: Insert or remove while live. Useful for field swaps, testing alternate fiber routes, or upgrading link types without full switch downtime. Link stabilizes in 2–5 seconds post-insertion.

Deployment Considerations:

• Fiber Type Critical: This is a multimode-only transceiver. Pairing it with single-mode fiber results in immediate link failure. Confirm fiber type before ordering, and label cabling clearly to prevent future mistakes during maintenance.
• LC Connector Dependency: Both the module and your cable plant must use LC connectors. If your existing plant uses SC or ST, factor in adapter costs or recable budget—this isn't a show-stopper, but it does add labor and potential loss points in signal quality.
• Distance Ceiling for WANs: 1800 feet is a hard limit for this technology. Campus networks, yes. Data center SANs, yes. Cross-metro WAN links, no—you'll need 1000Base-LX single-mode modules instead.

Position this module when you're upgrading or expanding a campus network that already has multimode fiber in place, or when building a new network backbone where multimode is the cost-optimal choice and distances are under 2000 feet. Avoid it in single-mode environments or long-haul scenarios—wrong tool, wrong time.
