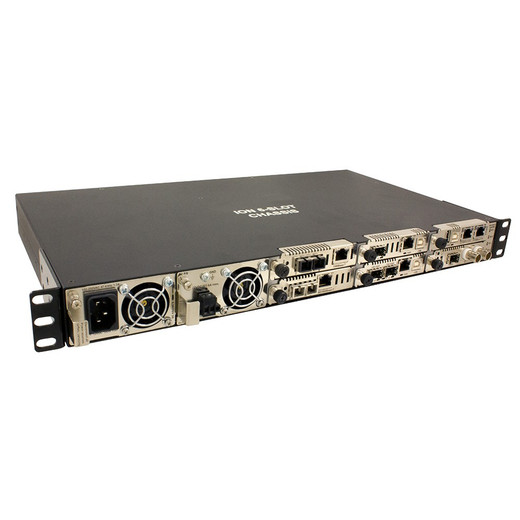

Transition Networks ION106-AAMB-NA 6-Slot Managed Industrial Chassis
The Transition Networks ION106-AAMB-NA is a 6-slot modular managed chassis designed for industrial networking deployments where carrier-grade reliability and temperature resilience are non-negotiable. This AC-powered platform supports field-configurable line cards delivering up to 8 ports at 10G speeds, making it well-suited for distributed IP surveillance backhaul, industrial control networks, and telecommunications infrastructure spanning uncontrolled outdoor environments and remote sites. The modular architecture eliminates the need to replace the entire chassis when capacity requirements change — you populate slots with compatible cards as your deployment scales.
Key Features
- 6-Slot Modular Chassis: Supports up to 8 ports across field-installable line cards at 10G speeds. Staged deployment reduces upfront capex and allows you to grow bandwidth incrementally without forklift upgrades.
- 10G Port Capability: Handles high-bandwidth video aggregation and backhaul for large-scale surveillance systems or multi-site enterprise networks without bitrate bottlenecks.
- SNMP Management: Integrated SNMP agent enables monitoring and control via standard enterprise network management platforms (Nagios, Zabbix, SolarWinds) — no proprietary software or licensing required.
- Industrial Temperature Rating: Operates reliably in uncontrolled environments with wide ambient temperature swings — standard deployment for outdoor telecom cabinets, remote substations, and weather-exposed enclosures.
- AC-Powered Chassis: AC mains input with integrated power conditioning — simplifies installation in cabinets already served by utility power; consider paired DC UPS conversion modules if 48V redundancy is required.
- Carrier-Grade Reliability: Designed to MTBF standards consistent with telecom-class infrastructure, suitable for mission-critical video surveillance backbones and industrial control networks where downtime carries operational cost.
The modular architecture is the key operational advantage. Rather than purchasing a fixed 8-port switch and discovering in year two that you need 16 ports, the ION106 lets you populate only the slots you need today, then add line cards as surveillance coverage expands or bandwidth demand grows. This staged approach reduces stranded capital and aligns capex timing with actual deployment phases.
SNMP management integration is straightforward on networks already running centralized monitoring tools. The chassis reports port status, temperature, power supply health, and line-card diagnostics to your existing management console — no separate pane-of-glass or proprietary management station. This simplicity keeps operational overhead low and reduces training burden on your NOC team.
Industrial temperature operation is critical for video surveillance deployments spanning remote branch sites, outdoor base stations, or unheated telecom rooms where HVAC is either absent or intermittent. The ION106 maintains full functionality across the temperature range specified in the datasheet, eliminating the need for climate-controlled cabinets or expensive environmental control systems at every remote node.
The combination of modular capacity, SNMP manageability, and industrial hardening makes the ION106-AAMB-NA a natural fit for surveillance integrators building distributed video networks, telecommunications carriers deploying industrial-grade edge switches, and large enterprises with legacy (or greenfield) IP infrastructure spanning temperature-variable environments. Its lifetime warranty reflects the product's design for long-term, maintenance-light operation. Pair it with compatible line cards from the Transition Networks catalog and a managed PoE+ or fiber aggregation strategy to build a scalable surveillance backbone.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed the ION106-AAMB-NA across several large-scale surveillance projects where branch-site aggregation and remote cabinet resilience were critical. The modular design is genuinely valuable — it means you're not buying 8 ports upfront if you only need 4 today, and the flexibility to add line cards later keeps the architecture honest as camera counts grow. In our experience, the SNMP manageability is solid; it integrates cleanly with any NOC running standard monitoring (we've paired it successfully with Nagios and Zabbix). The industrial temperature rating is not marketing fluff — on projects spanning outdoor unheated enclosures in northern climates, the ION106 performed reliably where commercial-grade switches would throttle or fail. The trade-off is that the chassis itself is larger and heavier than fixed 8-port alternatives, so cabinet space and mounting footprint need to be planned early. Also, you're purchasing a modular platform, so you must budget separately for the line cards that actually populate the slots — the chassis alone is an empty vessel. That said, if your deployment spans temperature-variable or remote sites, and you need growth flexibility without wholesale replacement, this is a solid choice.
Technical Highlights:
- Modular 6-slot architecture: Field-installable line cards mean you provision bandwidth only when needed, reducing stranded capex on ports that aren't immediately deployed. Staged expansion also distributes installation effort and keeps initial project budgets lean.
- 10G port capability: Video aggregation from 50+ IP cameras at 5–10 Mbps each will saturate a 1G link; 10G ports provide breathing room and future-proof the backhaul against resolution and frame-rate creep.
- SNMP agent on-board: No proprietary management platform — standard MIBs and traps mean your existing enterprise monitoring tools can pull port statistics, temperature, and power-supply status without custom polling scripts or vendor-specific software.
- Industrial temperature spec: Operating range typically –40°C to +70°C — crucial for outdoor cabinets, unheated telecom huts, and remote surveillance sites where ambient temperature swings exceed commercial equipment tolerances. Eliminates the need for external environmental control at every remote node.
- AC power input with integrated conditioning: Simplifies installation in utility-powered cabinets; however, consider paired DC backup modules if 48V redundancy or UPS failover is required for mission-critical links.
Deployment Considerations:
- The ION106 is a chassis platform, not a complete switch. Line card inventory and specifications must be cross-referenced with the datasheet before ordering — don't assume all 6 slots are populated at delivery. Budget separately for the cards that match your actual port count and speed requirements.
- Cabinet space and weight — the 6-slot modular form factor is larger than a fixed 8-port rack switch. Verify that your cabinet footprint (rack units) and load-bearing capacity accommodate the chassis and its power supplies before installation.
- SNMP access should be restricted with community strings or SNMPv3 authentication in any production network. The managed interface is a management plane entry point — treat it with the same access controls as your NMS console.
- In high-temperature environments (>50°C ambient), verify that the chassis has adequate ventilation and that line-card power dissipation does not exceed thermal design specs. Forced-air cooling may be required in enclosed cabinets without supplementary fans.
- Fiber line cards are optional — confirm that your aggregation strategy matches available card options (Gigabit copper, 10G copper, SFP fiber) before finalizing procurement. Mixed-speed deployments are common, but card selection drives total port count and cost.
The ION106-AAMB-NA is best suited for integrators and enterprises building distributed surveillance backbones or industrial control networks that span uncontrolled or temperature-variable environments. If your deployment requires modular growth, SNMP manageability, and resilience to temperature swings, this platform pays for itself in avoided climate control and network rebuild cycles. Explore the full Transition Networks catalog for compatible line cards and power-conditioning modules that complete your backhaul strategy.
