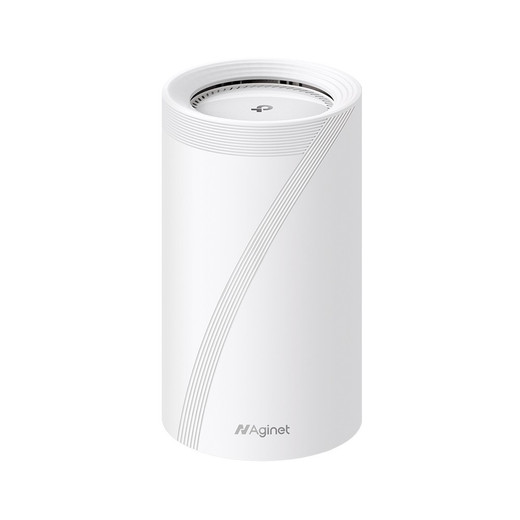

TP-Link HB810(1-PACK) BE22000 Mesh Wi-Fi 7 Unit
Overview
The HB810(1-PACK) is a single BE22000 tri-band mesh router designed for enterprise and high-density residential deployments where gigabit uplinks and multi-user throughput matter. It delivers 1376 Mbps on 2.4 GHz, 8640 Mbps on 5 GHz, and 11520 Mbps on 6 GHz — totaling 22000 Mbps across all bands. The 10 Gigabit RJ45/SFP+ combo port supports wired backhaul to a core switch or direct 10G uplink, while two 2.5 Gigabit ports (WAN/LAN auto-sensing) handle secondary uplink or hardwired clients without bottlenecking. Deploy this as a primary router or access point using the Deco App for centralized management across multiple units.
Compatibility
The HB810 operates as a standalone router in standard mode or integrates into larger mesh networks via AI Mesh technology, allowing pairing with other TP-Link Deco Wi-Fi 7, Wi-Fi 6, and Wi-Fi 5 units. The 10 Gigabit RJ45 port connects directly to SFP+ infrastructure or standard 10G Ethernet switches without adapters. The dual 2.5 Gigabit ports auto-detect WAN vs. LAN assignment, simplifying provisioning in mixed-infrastructure environments. IPv6 and IPTV support ensure compatibility with modern ISP architectures. HomeShield (included antivirus, QoS, and parental controls) integrates with Google Assistant and Alexa for voice provisioning.
Installation Notes
Position the unit centrally in coverage areas to exploit 8 internal antennas and 12-stream architecture. The 320MHz bandwidth on 6 GHz and 240MHz on 5 GHz demand clean RF environments — keep away from microwave ovens and adjacent channel sources. Use the combo port for backbone uplink to your core network; WAN port auto-sensing means either 2.5G port can be the primary connection. The Qualcomm 2.2 GHz quad-core CPU supports multi-user OFDMA and MU-MIMO across all bands, but high client density (100+ devices) benefits from dedicated backhaul via the 10G port to reduce air congestion.
What's in the Box
- 1x TP-Link HB810 mesh unit
- 1x Power adapter
- 1x Ethernet cable
- Quick start guide
