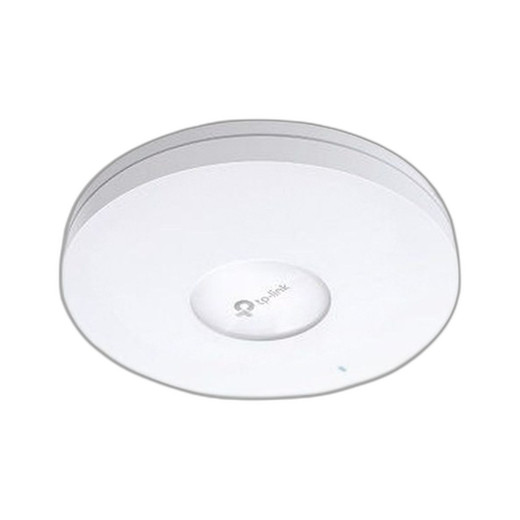

TP-Link EAP660 HD AX3600 Ceiling Mount Access Point
Overview
The EAP660 HD is an AX3600 dual-band wireless access point purpose-built for ceiling deployment in commercial surveillance and enterprise network environments. It delivers multi-gigabit wireless throughput across 2.4 GHz and 5 GHz bands — necessary when backhaul-feeding IP cameras, NVRs, or edge analytics servers over WiFi instead of running Ethernet runs to every location. The ceiling mount form factor keeps it out of sight and above obstruction in warehouses, retail floors, and open office spaces. It draws 30W via PoE+ (802.3at), so confirm your switch or injector can supply sufficient wattage if daisy-chaining multiple APs. The EAP660 HD reduces cabling complexity in dense multi-camera deployments while maintaining standards-compliant 802.11ax connectivity — a real advantage when retrofitting surveillance into older buildings where running new Ethernet drops is expensive or impractical.
Compatibility
The EAP660 HD operates as a standards-compliant 802.11ax (WiFi 6) access point. It pairs with any ONVIF-compatible IP camera or NVR that supports 802.11ax, 802.11ac (5 GHz), or 802.11n (2.4 GHz) — meaning it works across Axis, Hikvision, Dahua, Uniview, and other major surveillance brands without proprietary integration. Enterprise controller management via TP-Link Omada or third-party cloud platforms is supported. Wired uplink requires gigabit Ethernet to unlock full AX3600 throughput; multi-gig Ethernet (2.5G or higher) enables the full wireless potential without bottlenecking at the backhaul.
Installation Notes
Ceiling mount installation requires secure fastening to structural supports — verify load rating and anchor type for your ceiling system before deployment. Position away from metal ductwork and large RF-reflective surfaces to minimize multipath degradation in high-density camera deployments. For warehouse or outdoor-adjacent environments, verify operating temperature range and ensure adequate ventilation around the unit. Confirm your switch or PoE injector delivers the full 30W required; undersized injectors will degrade performance or cause intermittent connectivity.
