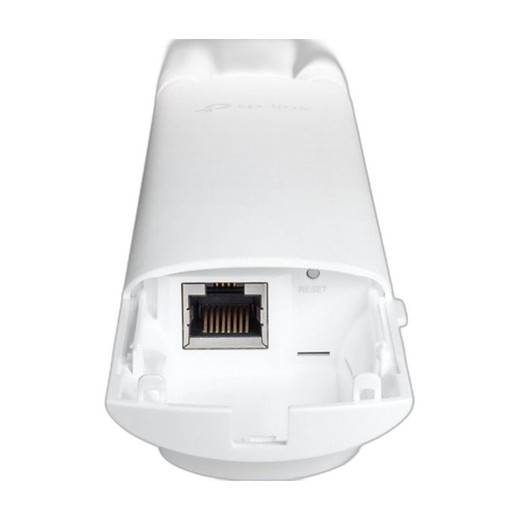

TP-Link EAP225-OUTDOOR Outdoor Dual Band WiFi Access Point
Overview
The TP-Link EAP225-OUTDOOR is an AC1200 dual-band outdoor access point built to extend WiFi coverage across surveillance yards, loading docks, and distributed campus environments where hardwired Ethernet isn't practical. It handles 1200 Mbps total throughput (867 Mbps on 5 GHz + 300 Mbps on 2.4 GHz), split between two bands to minimize congestion when multiple wireless cameras or mobile devices connect simultaneously. Gigabit uplink means the backhaul to your switch can saturate without artificial bottleneck.
Compatibility
The EAP225-OUTDOOR works with any WiFi-capable surveillance camera, mobile scanner, or enterprise device expecting standard 802.11ac connectivity. It integrates with TP-Link Omada management (cloud or on-premises controller) for centralized SSID, security policy, and band-steering configuration across multiple APs — useful if you're chaining several units to cover large outdoor perimeters. If your surveillance backbone runs standard PoE power distribution, this unit draws under 13W via 802.3af passive injection or PoE injector, so it won't strain existing infrastructure.
Installation Notes
Rated IP65 (dust and water resistance from low-angle spray), so it tolerates direct rain and dust but is not submersible — mount on walls, poles, or eaves with the supplied outdoor bracket. Operating range -30°C to 65°C keeps it functional across northern winters and hot climates. Dual-band design allows you to isolate bandwidth-hungry cameras on 5 GHz while keeping mobile devices on 2.4 GHz if your VMS architecture supports SSID or band selection — reduces handshake delays on security appliances. Ethernet uplink must be within 100m of your PoE-capable switch or injector.
What's in the Box
- 1x EAP225-OUTDOOR access point
- 1x Outdoor mounting bracket with hardware
- 1x Ethernet cable (CAT5e, 1m)
- 1x Quick start guide
