ATEN CL6700MW 17.3" Full HD 1U Rack KVM LCD Console

Overview

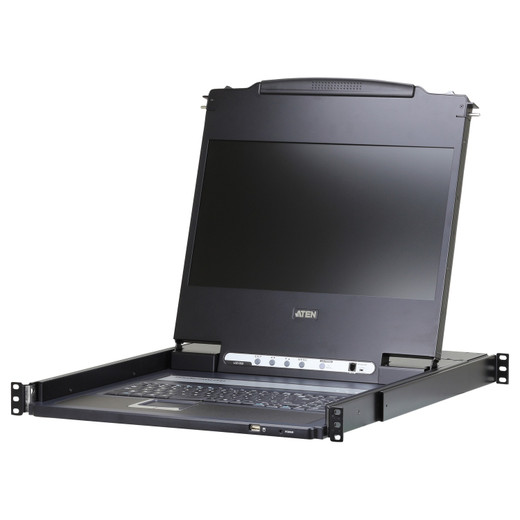

The CL6700MW is a 1U rack-mounted KVM console from ATEN that combines a 17.3" LED-backlit widescreen display, integrated keyboard, and touchpad into a single rail-mount drawer — the practical choice when you need a dedicated local access point in a dense rack without dedicating 2U or more to a separate monitor and keyboard tray. The console runs at 1920x1080 @ 60Hz across its full widescreen panel, so GUI-based management interfaces render at native resolution rather than scaling artifacts. It draws 19.4W and accepts 100–240 VAC input, making it compatible with any standard PDU in a data center or server closet. See the full ATEN KVM and console catalog for compatible KVM switches and matrix systems.

Compatibility

The CL6700MW accepts three video input formats — DVI-D, HDMI, and VGA (HDB-15) — covering the output types found on nearly all current rack servers, KVM switches, and NVR appliances. USB connectivity handles keyboard and touchpad HID signaling. The console's DDC2B support allows the connected source to auto-detect display capabilities and set resolution correctly without manual EDID configuration — relevant when pairing with KVM switches that pass DDC data downstream. It is designed to pair with ATEN's CL-series and compatible rack console solutions, and the standard 1U form factor fits any 19" EIA-standard rack. Audio I/O is provided via two mini stereo jacks for headset or speaker connectivity where local audio monitoring is needed.

Installation Notes

The unit ships at 11.6 kg (approximately 25.6 lbs) — factor that into rail load ratings before mounting. Chassis dimensions are 18.9" W × 23.2" D × 1.7" H; verify rack depth clearance, particularly in shallow-depth wall-mount enclosures. Input voltage range of 100–240 VAC means no line-voltage adaptation is required internationally. The 23.2" depth requires adequate rear clearance for cable routing behind the drawer.
