Viking E-65-BK Video Entry Phone 420-Line Color Camera Flush Mount

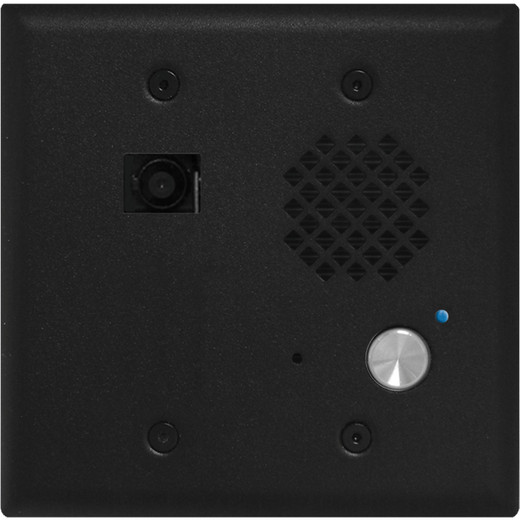

Viking Electronics E-65-BK Textured Black Video Entry Phone with Color Camera and Proximity Reader

Overview

The Viking Electronics E-65-BK is a compact, weather and vandal-resistant video entry phone engineered for commercial doors, gates, and secured vestibules where you need audio, video, and access credential verification in a single flush-mount unit. It runs entirely on telephone line power — no separate 12V or 24V supply to wire — and integrates a 420-line color camera, a 125KHz proximity card reader, and a hands-free speakerphone into a faceplate that drops into a standard double gang box. For integrators working in small-footprint entry points, the E-65-BK (often searched as E 65 BK) eliminates the conduit runs and junction boxes a multi-component solution demands.

Key Features

• 420-Line Color Camera (80° H × 60° V × 100° Diagonal): Delivers enough horizontal spread to capture the full width of a standard doorframe from 18–24 inches. At 420 lines analog resolution, you get recognizable face detail in normal lighting — sufficient for intercom-level ID, not forensic-grade archiving. Plan camera placement at eye level for best results.
• Telephone Line Powered: The E-65-BK draws its operating power directly from the phone line (25V AC RMS ring voltage minimum), which removes the need for a local power supply at the door. That simplifies rough-in significantly on retrofit jobs where running low-voltage power to the entry point is the main cost driver.
• 125KHz Proximity Card Reader — 26-Bit Wiegand Output: The onboard reader handles standard HID-format proximity cards at 1.25″ to 2.0″ read range and outputs 26-bit Wiegand, making it directly compatible with most commercial access control panels. No proprietary protocol to bridge.
• 300ms CPC Auto Disconnect: After the controlling phone goes on-hook, the E-65-BK severs the connection in 300ms minimum — fast enough to prevent accidental door-release holdover and keep the line ready for the next call immediately.
• IP67-Rated Push Button / IP66 EWP Variant: The integrated push button switch carries an IP67 rating, meaning it survives full temporary immersion — well above what most covered entry applications demand. If you need full enclosure weather protection, the E-65-BK-EWP variant brings the entire housing to IP66. Specify the EWP model for exposed exterior installations in high-rain or pressure-wash environments.
• -30°F to 150°F Operating Range: This thermal envelope covers unheated parking garages and loading dock entries in northern climates without supplemental heater kits. The 150°F upper limit also handles sun-baked metal door frames in southern regions where enclosure temperatures regularly spike well above ambient.
• Speaker Volume — 62dB Max at 1 Meter: Enough output for quiet lobbies and stairwells. In high-ambient-noise environments (loading docks, manufacturing floors), evaluate whether the caller-side volume is sufficient before finalizing placement.
• Dual Mounting Options: Flush mounts in a standard double gang box for clean drywall or masonry installations, or surface mounts with an optional VE-5×5 surface box — useful on hollow-core doors or surfaces where box-in-wall is not practical. Faceplate dimensions of 4.875″ × 4.938″ × 0.17″ fit within standard gang-box cutouts without modification.

Integration and Compatibility

The 26-bit Wiegand reader output connects directly to any access control panel with a standard Wiegand input — Lenel, Software House, HID VertX, and similar platforms. The phone interface is analog POTS-compatible; pair with a Viking door phone system or any analog telephone adapter (ATA) feeding a SIP-based phone system. Review the access control category for compatible panels, and consider a video surveillance recorder if you need to log the analog video output. A surface mount box is required for non-gang-box installations.

Frequently Asked Questions

Q: What type of phone system does the E-65-BK connect to?

A: The E-65-BK is telephone line powered and connects to any analog POTS line or analog telephone adapter (ATA). It requires a minimum 25V AC RMS ring voltage to operate.

Q: What proximity card formats does the built-in reader support?

A: The reader operates at 125KHz and outputs 26-bit Wiegand, which is compatible with standard HID-format proximity cards. Read range is 1.25″ to 2.0″.

Q: What is the difference between the E-65-BK and the E-65-BK-EWP?

A: The E-65-BK-EWP is the Enhanced Weather Protection variant. The base E-65-BK has an IP67-rated push button switch; the EWP model brings the full enclosure to an IP66 rating for exposed exterior installations subject to direct rain or pressure washing.

Q: Can the E-65-BK be surface-mounted instead of flush-mounted?

A: Yes. The E-65-BK flush-mounts in a standard double gang box. For surface mounting on hollow doors or masonry where cutting a gang box recess is impractical, use the optional VE-5×5 surface mount box.

Q: What is the camera field of view on the E-65-BK?

A: The integrated color camera provides 80° horizontal, 60° vertical, and 100° diagonal field of view at 420-line resolution — sufficient to capture the full face and shoulders of a person standing at a standard door.

Ted Perry

The E-65-BK is one of the few entry phones I'd recommend for retrofit jobs where the phone wiring is already in place but you cannot easily run a separate power circuit to the door. The telephone line powered architecture is the defining spec here — it removes a real installation cost driver, not a theoretical one.

Technical Highlights:

• -30°F to 150°F Operating Range: Covers the full North American climate envelope without heater kits. That upper limit matters on metal door frames in direct sun, where enclosure temps routinely exceed 130°F in summer.
• 26-Bit Wiegand at 125KHz: Standard HID-compatible output at 1.25″–2.0″ read range drops straight into any Wiegand-input access panel. No protocol converter, no additional hardware between the phone and your panel input.
• 300ms CPC Auto Disconnect: Fast enough to prevent door-release holdover when the inside party hangs up. On high-traffic entries this matters — slow disconnect creates a race condition between sequential callers.

Deployment Considerations:

• Mount the unit at eye level (approximately 60″ AFF) to get full benefit from the 80° horizontal field of view — the 420-line camera does not have digital tilt correction, so angle of approach to the lens matters for face capture quality.
• The 62dB speaker maximum at 1 meter is adequate for quiet lobbies but insufficient for loading dock or manufacturing floor installations without supplemental alerting. Confirm ambient noise levels before specifying this unit on industrial entries.

Best fit: commercial office building secondary entries, apartment building pedestrian gates, and light industrial vestibules where analog phone infrastructure is already in place and access control runs 26-bit Wiegand — the E-65-BK handles all three functions without adding a separate power circuit or protocol bridge.
