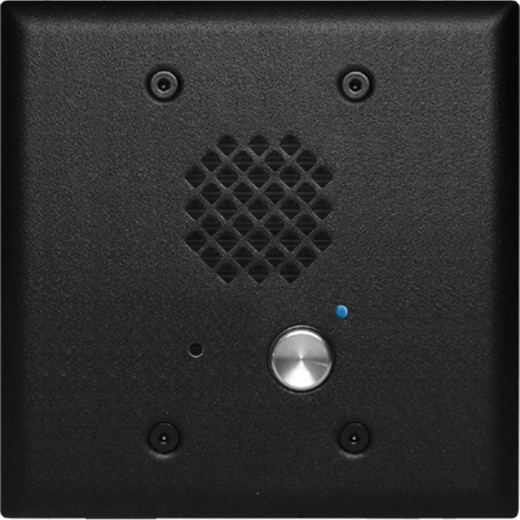

Viking Electronics E-60-BK-IP Compact VoIP Entry Phone
The E-60-BK-IP is a compact, vandal-resistant VoIP entry phone designed for SIP-based phone systems and access control integrations. It mounts flush in a standard double gang electrical box, delivering hands-free communication without consuming wall real estate. This is a working choice for building entrances, loading docks, and secured areas where you need reliable call connectivity tied directly to your network infrastructure.
Overview
The E-60-BK-IP (often searched as E 60 BK IP) combines a stripped-down industrial form factor with practical network integration. Front panel dimensions are the size of a typical double gang mid-size wall plate—1.75 inches wide by 4.5 inches tall—so retrofit installations don't require new wall openings. The black faceplate, gasket, and flush-mount design are built to handle weather exposure and mechanical stress without degradation. Relay output contacts support door strike solenoids, gate openers, and access control logic at up to 2 amps at 30 VDC or 250 VAC.
Key Features
- PoE Power (4W @ Class 1): Draws only 4 watts via standard 802.3af / 802.3at / 802.3bt PoE—low enough that it won't cause power budget strain on most enterprise switches. Eliminates the need for local power runs to the phone; one Cat5e or Cat6 cable handles both data and power.
- 100 Mbps Full Duplex Network: Communicates at 100 Mbps full duplex over standard Ethernet—sufficient for VoIP audio streams and SIP signaling without congestion. No gigabit required; works cleanly on older switch infrastructure.
- Relay Output Contacts (2A @ 30VDC / 250VAC): Two independent relay outputs rated for 2 amps at 30 VDC or 250 VAC maximum—ideal for triggering door strikes, magnetic locks, gate control relays, or alarm horns. Direct integration with access control panels and PBX systems without additional interface modules.
- Parallel Programming & Firmware Updates: Managed centrally via Viking Device Manager software. Firmware updates and configuration changes push to multiple units simultaneously—no need to walk to each phone individually to reprogram SIP parameters or relay logic.
- Compact Double Gang Mount (2.25" Deep): Fits standard electrical boxes 2.25 inches deep or deeper. Mounting hardware includes 6-32 x 1.25" flat head hex screws, plate adapter, faceplate gasket, and light pipe for LED visibility. Wire gauge support: 19–26 AWG with 0.082 inch max insulation—standard for access control and building automation cabling.
- Hands-Free SIP Communication: Operates as a SIP endpoint directly on your VoIP network. No local PBX or proprietary phone system required—integrates with any standards-based SIP phone system (Asterisk, Avaya, Cisco, etc.).
Integration & Compatibility
The E-60-BK-IP is a SIP-based device, meaning it registers directly to a SIP proxy or PBX as a VoIP endpoint. Configuration happens through the web interface or via Viking Device Manager for bulk deployments. The two relay outputs can be triggered via SIP event scripts or integration with access control software—common patterns include activating a door strike when a visitor call is answered, or sending an alarm relay pulse to an audio/beacon system.
Wire termination uses standard screw terminals accepting 19–26 AWG wire (0.082 inch max insulation). No special connectors; straight pins into a terminal block. This simplifies integration with existing access control panels, relay modules, and building automation systems that already run control logic at the entrance.
What's in the Box
- 1x E-60-BK-IP VoIP entry phone unit
- 1x Black faceplate
- 1x Faceplate gasket
- 2x Plate adapters
- 1x Light pipe
- 4x 6-32 x 1.25" flat head hex screws
Frequently Asked Questions
Q: Does the E-60-BK-IP require a local power supply?
A: No. The E-60-BK-IP draws 4 watts via PoE (802.3af / 802.3at / 802.3bt compliant), so a single Ethernet cable from a PoE switch or injector powers the unit. No separate 12V or 24V supply needed.
Q: Can I integrate the E-60-BK-IP relay outputs with my access control panel?
A: Yes. The two relay output contacts are rated 2A @ 30VDC or 250VAC, which matches standard door strike, magnetic lock, and relay module voltage. Wire directly to your access control logic or PBX integration software to trigger door unlock, alarm output, or gate control.
Q: What SIP phone systems does the E-60-BK-IP work with?
A: Any standards-based SIP PBX or proxy—Asterisk, Avaya Communication Manager, Cisco Unified Communications, FreeSWITCH, etc. Configure SIP parameters (proxy address, extension, authentication) via the web interface or Device Manager, and the unit registers like any other SIP phone.
Q: How do I update firmware on multiple E-60-BK-IP units?
A: Use Viking Device Manager software. It supports parallel programming and bulk firmware updates across multiple units without manual intervention on each phone.
Q: Is the E-60-BK-IP weatherproof for outdoor installation?
A: The unit is designed for building entrances and secured areas. The gasket and flush-mount design provide weather resistance, but full submersion or high-pressure spray is not rated. Confirm your specific environmental requirements (rain exposure, temperature extremes) with the installation environment.
Q: What cabling do I need to install the E-60-BK-IP?
A: Standard Cat5e or Cat6 Ethernet cable for network and PoE delivery. Wire gauge to terminal blocks should be 19–26 AWG with maximum insulation diameter of 0.082 inches (standard for access control cabling).
I've deployed the E-60-BK-IP across office buildings and secured facilities where VoIP integration with access control is a core requirement. The 4-watt PoE draw is the real win here—it's low enough that you won't overload a single PoE port on a standard 24-port switch, even if you're running 20+ units across a building. The E-60-BK-IP doesn't demand a separate power budget line or expensive PoE+ infrastructure.
Technical Highlights:
- 4W PoE (802.3af compliant): Minimal power consumption means no risk of switch budget exhaustion. A single 60W PoE switch can handle 12+ E-60-BK-IP units comfortably, critical when you're adding entry phones to existing network infrastructure.
- 2A relay output @ 30VDC/250VAC: Direct-drive capability for door strikes and magnetic locks without relay buffer cards. Simplifies wiring and reduces integration complexity at the entrance.
- 100 Mbps full duplex Ethernet: Adequate for SIP VoIP streams and firmware updates. You don't need gigabit to every entrance phone—standard 100 Mbps switch ports work fine.
Deployment Considerations:
- The E-60-BK-IP is a SIP endpoint, not a proprietary device—it needs a functional SIP infrastructure (Asterisk, Cisco, Avaya, etc.). If your organization runs legacy PBX systems without SIP gateways, you'll need middleware or a migration plan first.
- Wire gauge tolerance is tight: 19–26 AWG with max insulation of 0.082 inches. Standard access control cable meets this, but oversized insulation (thicker wire jacket) won't seat in the terminal block. Verify your cable stock before bulk installation.
The E-60-BK-IP is the right choice for access control integrators and facility teams deploying SIP-based entrance systems where power budget is tight and you need reliable door control integration without adding complexity.
