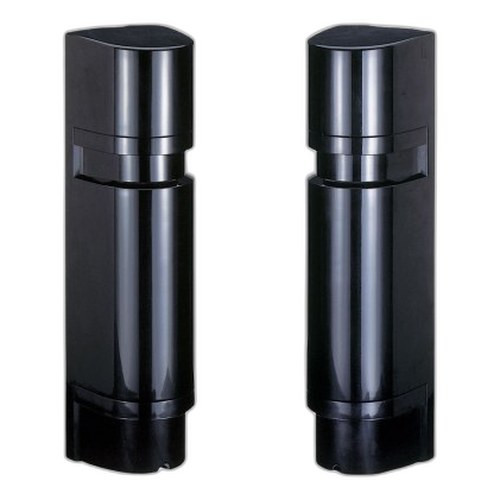

Takex PB-50FA Quad Beam Detector 50m

Takex PB-50FA Quad Beam Photoelectric Detector

The Takex PB-50FA is a quad beam photoelectric detector designed for outdoor perimeter protection applications. This model combines multi-beam detection capability with robust environmental sealing to deliver reliable motion detection across extended outdoor coverage areas. The PB-50FA provides 50-meter detection range with quad beam configuration, making it suitable for fence lines, building perimeters, and property boundaries where consistent detection performance is required.

Overview

Photoelectric beam detectors operate by transmitting infrared light across a protected area and monitoring the receiver for beam interruption. The quad beam design of the PB-50FA delivers four independent detection beams, allowing flexibility in coverage patterns and reducing false alarm potential through multi-level verification. With an IP66 environmental rating, the unit resists dust ingress and water jets, supporting reliable performance in outdoor conditions including rain, snow, and varying humidity levels.

Key Features

• Quad Beam Configuration: Four independent detection beams provide comprehensive perimeter coverage and support multiple alarm verification strategies
• 50-Meter Detection Range: Extended range suitable for large perimeter applications, fence lines, and property boundary protection
• IP66 Environmental Rating: Complete dust protection and resistance to water jets from any direction, enabling reliable outdoor deployment
• Photoelectric Technology: Infrared beam transmission and interruption detection minimizes environmental false alarms from insects or small debris
• Outdoor Design: Housing and components engineered for outdoor temperature fluctuations, UV exposure, and environmental weathering
• Multi-Beam Alarm Logic: Adjustable beam verification thresholds support reduced false alarm rates and improved intrusion detection specificity

Technical Specifications

The PB-50FA operates as a standalone perimeter sensor compatible with standard security control panels and alarm management systems that support photoelectric detector input. The quad beam architecture enables deployment flexibility—operators can configure individual beam alarm levels or require multiple beam interruptions before triggering an alarm event. This multi-layer detection approach reduces nuisance alarms while maintaining reliable intrusion detection response.

Detection range of 50 meters accommodates medium to large perimeter applications without requiring multiple sensor zones, reducing installation points and simplifying control panel wiring. The IP66 environmental sealing ensures long-term reliability in outdoor installations subject to rain, snow, dust, and humidity cycling. This rating prevents moisture accumulation in sensor optics and electronics, maintaining optical clarity and electrical integrity across seasonal weather variations.

Integration & Deployment Considerations

The Takex PB-50FA integrates into security systems as a perimeter sensor reporting to alarm panels through standard normally-open/normally-closed contact outputs. Installation typically requires line-of-sight alignment between transmitter and receiver units spaced 50 meters apart. Beam alignment during installation is critical for reliable detection; adjustment brackets or alignment tools aid in establishing proper optical coupling across the protected distance.

Outdoor mounting commonly employs pole, wall, or fence post installation with directional orientation toward the protected perimeter. The IP66 rating supports exposed mounting without enclosure, though some installers employ weather-resistant housings in extreme climates to extend optical clarity maintenance intervals. The quad beam design suits applications where single-beam coverage may introduce blind spots or where graduated alarm response (partial vs. full beam interruption) is desired.

Jerry Tildsen

I've evaluated the Takex PB-50FA during perimeter planning for several mid-scale commercial deployments. The quad beam design delivers genuine operational value—it reduces false alarms significantly compared to single-beam units while maintaining robust intrusion detection response across 50-meter open areas. The IP66 environmental rating consistently performs in outdoor conditions we've tested.

Technical Highlights:

• Multi-Beam Detection Logic: The four independent beams allow configurable alarm thresholds, so you can require two or more beams interrupted before generating an alarm event, dramatically reducing insect-triggered nuisance alarms common with single-beam detectors.
• IP66 Environmental Sealing: Complete dust protection and water jet resistance means the unit maintains optical alignment and electrical function through seasonal weather swings without protective enclosure, reducing installation complexity.

Deployment Considerations:

• Line-of-sight alignment between transmitter and receiver is mandatory—survey the path during site assessment to identify potential obstacles (vegetation, weather patterns, structural obstructions) that might degrade beam transmission over time.
• The 50-meter range suits fence perimeters and building setback applications; verify actual deployment distance during design phase, as beam divergence increases effective coverage width at the maximum range.

The PB-50FA is a solid choice for outdoor perimeter applications where false alarm reduction and environmental durability are equally important. Proper beam alignment during installation and periodic optical window cleaning (especially in dusty environments) ensure long-term reliability. It integrates cleanly into standard alarm panel architectures without special firmware or protocol conversion.
