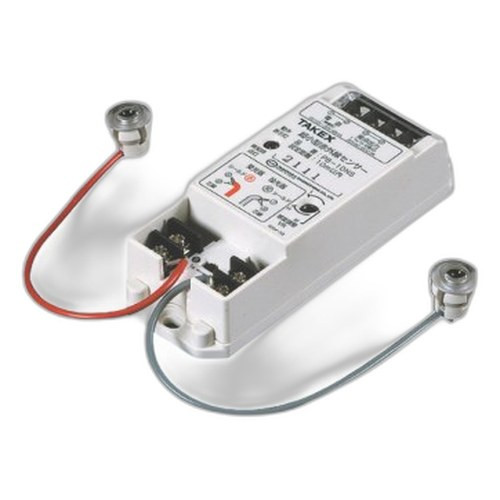

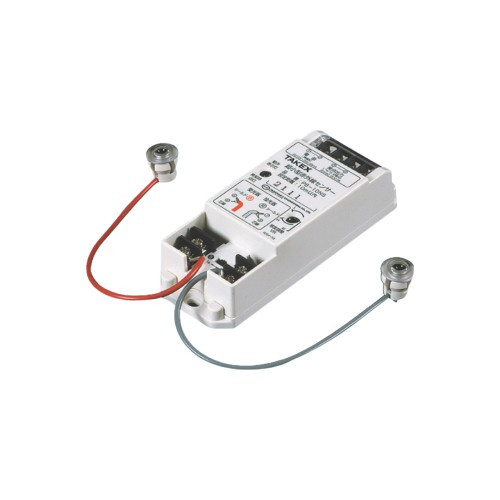

Takex PB-4RNS Miniature Reflective Photoelectric Beam
Overview
The Takex PB-4RNS is a compact reflective beam photoelectric detector engineered for outdoor perimeter security applications. This miniature form factor allows discreet installation while maintaining robust detection performance across a 4-meter range. The PB-4RNS operates on reflective beam technology, requiring a paired reflector to complete the detection circuit. When an intruder crosses the beam path, the interruption triggers immediate alarm signaling, making it suitable for fence lines, gate entries, and boundary protection in commercial and industrial security systems.
Key Features
- 4-Meter Detection Range: Effective perimeter coverage with precise beam alignment for reliable zone protection
- Reflective Beam Configuration: Paired transmitter and reflector design minimizes false alarms by requiring beam interruption for activation
- IP66 Weather Rating: Dust-tight and water-resistant construction withstands outdoor exposure, heavy rain, and washdown environments
- Miniature Form Factor: Compact dimensions enable concealed mounting on posts, fences, and structures without aesthetic intrusion
- Outdoor Rated: Purpose-built for external deployment with environmental sealing and corrosion-resistant materials
- Low-Voltage Operation: Integrates with standard security control panels and 12VDC or 24VDC alarm systems
Integration & Compatibility
The Takex PB-4RNS connects directly to conventional alarm panel inputs and requires no network infrastructure. Integrators configure the unit as a standard NC (normally closed) or NO (normally open) contact input depending on panel logic and system architecture. The reflective beam design pairs with Takex-compatible reflectors, ensuring synchronized detection accuracy. This detector is suitable for integration into legacy and modern alarm systems that accept analog or contact-closure sensors.
Deployment Recommendations
Position the PB-4RNS transmitter and reflector at matched heights to maintain beam alignment across the 4-meter span. Mount units on rigid supports to prevent vibration-induced drift. Avoid direct sunlight on the receiver lens and position reflectors to minimize glare interference. The IP66 rating supports both sheltered and exposed outdoor locations. For maximum reliability, verify beam alignment during commissioning and schedule periodic cleaning of lens surfaces to maintain detection sensitivity in dusty or coastal environments.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I've specified the Takex PB-4RNS in multiple perimeter security projects where fence-mounted detection was required without visible camera infrastructure. The miniature form factor and reflective beam approach keep installation costs low while delivering solid 4-meter coverage. The IP66 rating has proven reliable in outdoor deployments across humid and salt-spray environments.
Technical Highlights:
- Reflective Beam Design: Paired transmitter-reflector configuration reduces nuisance alarms by requiring actual beam interruption, not ambient light fluctuation
- IP66 Ingress Protection: Complete dust sealing and water jet resistance suitable for exposed gate posts, fence rails, and rooftop perimeter lines
- Compact Mounting: Miniature envelope fits discrete installation on existing structures without requiring dedicated pedestals or conduit runs
Deployment Considerations:
- Always install paired reflector at matching height; misalignment causes detection loss—use a laser level during commissioning
- Schedule semi-annual lens cleaning in dusty or coastal environments to maintain consistent photoelectric sensitivity
- Verify panel loop configuration (NC vs. NO) before field installation to ensure alarm state matches system logic
The PB-4RNS is a cost-effective choice for contractors specifying outdoor perimeter beams in fence and gate applications. Straightforward integration with standard alarm panels makes this unit quick to commission and reliable in long-term field service.
