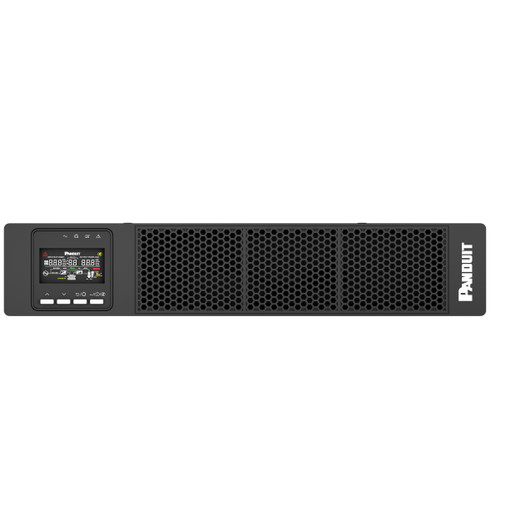

Panduit U01S12L SteadySine™ 1kVA Lithium-Ion Online UPS

The Panduit U01S12L delivers double-conversion online power protection in a compact 2U form factor, designed for data center edge deployments, enterprise MTDC environments, and critical infrastructure racks where space and runtime matter. Unlike standby or line-interactive topologies, this true online UPS continuously regenerates clean AC power through its inverter, isolating connected equipment from voltage sags, surges, frequency drift, and harmonic distortion with zero transfer time. The lithium-ion battery chemistry provides 2–3× the service life of traditional VRLA cells, occupies half the footprint, and operates across a wider temperature range—critical advantages in edge sites with limited HVAC or extended refresh cycles. At 1 kVA / 900W, the U01S12L slots into single-phase 230V installations supporting PoE switches, mini NVRs, access controllers, and VoIP gateways where clean power and graceful shutdown capability are non-negotiable.

Key Features

• True double-conversion topology: Continuous inverter operation ensures zero transfer time, pure sine wave output, and complete isolation from utility anomalies—no relay switching, no brief interruptions during brownouts or overvoltages.
• Lithium-ion battery technology: 10-year expected service life (vs. 3–5 years for VRLA), 50% smaller footprint, half the weight, and wider operating temperature range (0–40°C) reduce replacement frequency and thermal management costs.
• Compact 2U rack-mount: Fits standard 19" racks alongside network and surveillance gear, leaving cabinet space for additional equipment or airflow—ideal for edge deployments where every rack unit counts.
• 1 kVA / 900W capacity: Supports typical edge racks with 8–16 port PoE+ switch (200–300W), 8-channel NVR (60W), door controller (15W), and auxiliary devices—total load scaling to mission requirements without oversizing the UPS.
• Single-phase 230V input/output: Direct compatibility with international and North American 230V circuits common in data centers, co-location facilities, and industrial sites—no step-down transformers or wiring adapters.
• SteadySine™ platform integration: Part of Panduit's SmartZone power ecosystem, enabling centralized monitoring, SNMP traps, graceful OS shutdown via network management cards, and integration with DCIM platforms for capacity planning and alerting.

The U01S12L's double-conversion architecture continuously samples input AC, converts it to DC to charge the battery and feed the inverter, then synthesizes a new 230V 50/60Hz sine wave output. This three-stage process eliminates harmonic distortion (THD <3%), corrects power factor to near unity, and maintains output voltage within ±2% regardless of input swings from 160V to 290V. When utility power fails or drops below the input transfer window, the inverter seamlessly draws from the lithium-ion battery with no switchover delay—critical for PoE-powered IP cameras and VoIP phones that reset on even millisecond interruptions. The lithium chemistry delivers consistent voltage across the discharge curve, avoiding the voltage sag that shortens runtime on traditional lead-acid cells as they approach end-of-discharge. Typical runtime at 50% load (450W) is 8–12 minutes, sufficient for ride-through of brief outages or graceful NVR shutdown via USB/network signaling. The internal battery module is hot-swappable on select configurations, allowing maintenance without downtime in always-on surveillance and access control environments.

Deploy the U01S12L in enterprise edge closets supporting 8–16 IP cameras, a local NVR, and door controllers where utility power quality is unknown or unreliable. In co-location or multi-tenant data center cabinets, it provides tenant-level isolation from shared building UPS systems, ensuring your surveillance or access infrastructure isn't dependent on the landlord's maintenance schedule. The 2U height leaves room in a 42U rack for switches, patch panels, and cable management, while the front-panel LCD displays real-time load, battery charge, input/output voltage, and alarm status—no need to log into management software for quick health checks during site commissioning. SNMP support enables integration with network monitoring systems (PRTG, Nagios, Zabbix) for automated alerts on battery low, overload, or utility transfer events. Panduit's SmartZone management software aggregates data from multiple U01S12L units across sites, tracking energy consumption, battery health trends, and estimated replacement dates—eliminating surprise failures and enabling proactive sparing. The lithium-ion cells' 10-year service life aligns with typical IT refresh cycles, so you replace the UPS and battery together rather than swapping cells mid-deployment, reducing truck rolls and disposal logistics in multi-site rollouts.

The U01S12L meets IEC 62040-1/-2 safety and performance standards for double-conversion UPS systems and carries CE mark for European installations. Its lithium-ion chemistry complies with UN 38.3 transport regulations and is certified for air freight, simplifying international deployments and emergency part shipments to remote sites. The unit ships with rack-mount brackets, IEC C13 output cords, and a USB management cable for local shutdown signaling to Windows, Linux, or NVR operating systems. For integrators managing distributed surveillance or access control networks, the U01S12L solves the edge power protection challenge with a platform that's physically smaller, lasts longer, and requires less hands-on maintenance than legacy VRLA-based units—turning power from a recurring site visit into a deploy-and-monitor infrastructure layer.
