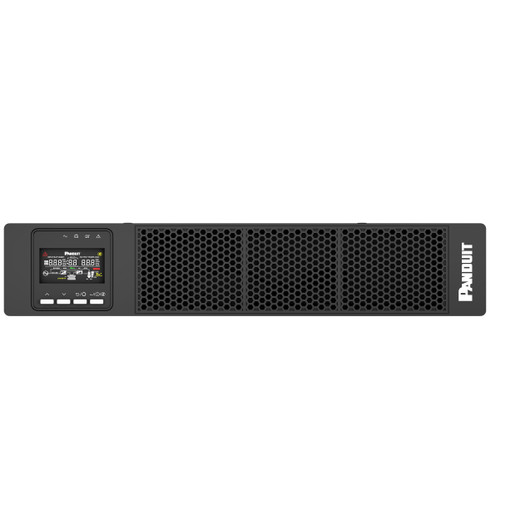

Panduit U02S12L SteadySine 2 kVA Lithium-Ion Online UPS

The Panduit U02S12L delivers true double-conversion online power protection for mission-critical edge computing, MTDC micro data centers, and enterprise IT infrastructure operating on 230V international power standards. Leveraging lithium-ion battery chemistry and Panduit's SteadySine pure sine wave output technology, this 2U rack-mount UPS provides 2 kVA of continuous power conditioning with a 10+ year battery service life—eliminating the 3-5 year replacement cycles and thermal penalties of traditional lead-acid designs. Purpose-built for space-constrained deployments where runtime density, thermal efficiency, and long-term TCO matter, the U02S12L integrates SmartZone monitoring and delivers the zero-transfer-time protection that voltage-sensitive networking, storage, and compute equipment demand.

Key Features

• Double conversion online topology with continuous power conditioning and zero transfer time during mains disturbances
• Lithium-ion battery technology providing 10+ year service life, 50% weight reduction vs. lead-acid, and wider operating temperature range
• 2 kVA / 1800W output capacity in a compact 2U 440mm rack-mount form factor for high power density
• SteadySine pure sine wave output ensuring clean, stable 230V AC power for sensitive electronics
• SmartZone management integration for centralized monitoring, alerting, and remote diagnostics
• Wide input voltage tolerance and power factor correction reducing nuisance battery discharges
• Hot-swappable battery design supporting maintenance without downtime in redundant configurations
• Rack-optimized thermal design with front-to-back airflow matching standard IT equipment cooling patterns

The U02S12L employs true double conversion online architecture—the gold standard for mission-critical power protection. Unlike line-interactive or standby topologies that switch between mains and battery with 2-10ms transfer times, double conversion continuously converts incoming AC to DC, charges the battery, then inverts back to precisely regulated AC output. Your connected equipment runs on battery-backed inverter power 100% of the time, experiencing zero interruption during brownouts, overvoltages, frequency drift, or total mains failure. The inverter stage regenerates a mathematically perfect sine wave at exactly 230V ±2% and 50/60Hz ±0.1%, regardless of input quality. Voltage sags below 160V or spikes above 290V—events that crash line-interactive units or force battery mode—are transparently corrected without ever stressing the battery. High input power factor (>0.99) and low total harmonic distortion (<3%) mean the U02S12L draws clean power from upstream PDUs and generators, reducing neutral current and preventing nuisance breaker trips in dense rack environments. For remote edge sites fed by marginal utility grids or backed by diesel generators with poor voltage regulation, this architecture transforms dirty, unstable mains into data-center-grade power.

Lithium-ion battery chemistry fundamentally changes UPS economics and deployment flexibility. Traditional valve-regulated lead-acid (VRLA) batteries require replacement every 3-5 years, generate significant heat during charge/discharge cycles, and suffer accelerated aging above 25°C ambient—a constant burden in edge computing closets and underprovisioned cooling environments. The U02S12L's lithium iron phosphate (LiFePO4) cells deliver 10-15 year service life at 25°C and maintain 7-10 years even at 30°C, cutting lifetime battery replacement costs by 60-70%. Lithium's 50% weight advantage (the U02S12L weighs roughly 18 kg vs. 35+ kg for an equivalent lead-acid unit) simplifies two-post rack installations and reduces structural load in mobile or temporary data centers. The battery's wide operating range (-10°C to 50°C) enables deployment in unheated telco cabinets, outdoor edge enclosures, and industrial mezzanine spaces where lead-acid UPS would fail. Faster recharge times (80% in 2 hours vs. 6-8 hours for VRLA) mean shorter vulnerability windows after extended outages. And because lithium cells don't off-gas hydrogen, the U02S12L can be deployed in sealed NEMA enclosures and converged infrastructure chassis without forced ventilation—unlocking new edge architectures.

The 2U form factor and 2 kVA capacity hit the sweet spot for modern edge computing: a half-depth rack server drawing 400-600W, a 24-port PoE++ switch at 350W, and a storage appliance or hyperconverged node at 300W fit comfortably within the 1800W output budget with 20% headroom. Front panel LCD provides real-time load percentage, battery runtime, input/output voltage, and alarm status without requiring network access—critical for quick assessments during rack commissioning or troubleshooting. SmartZone integration exposes SNMP traps, Modbus RTU, and REST API endpoints for centralized DCIM platforms, allowing you to aggregate battery health, runtime projections, and efficiency metrics across distributed sites. Configurable shutdown agents for VMware ESXi, Windows Server, and Linux ensure graceful VM migration or OS halt sequences when runtime falls below thresholds. The unit's high efficiency (up to 95% in double conversion mode, 98% in ECO mode if enabled) minimizes heat contribution to the rack—typically under 120W at 50% load—reducing the cooling burden in edge spaces where every BTU matters. Output receptacles support both C13 and C19 connectors, accommodating混合 server and networking gear without requiring adapter cables.

Designed and tested to IEC 62040-1/-2/-3 safety and performance standards, with CE marking for European deployments and RCM compliance for Australia/New Zealand installations. The U02S12L fits Panduit's broader SmartZone infrastructure management ecosystem—integrate with Panduit power distribution units, environmental sensors, and cable management for unified rack-level visibility and simplified procurement. For security integrators managing NVR head-end equipment, access control panels, or PoE-powered surveillance networks on 230V international sites, this UPS protects your back-end infrastructure with the same zero-compromise reliability you deliver to camera uptime. The lithium investment pays back through eliminated truck rolls for battery swaps, reduced HVAC load, and the confidence that your edge compute stack survives grid instability without data loss or service interruption.
