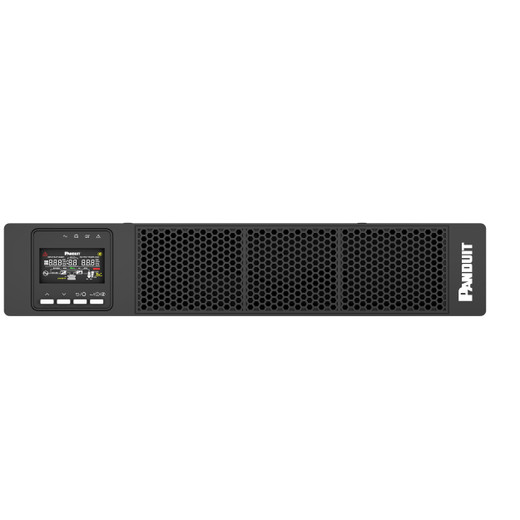

Panduit U01N13V SteadySine 1KVA 2U 230V Rack Uninterruptible Power Supply

Overview

The Panduit U01N13V is a 1KVA single-phase, 230V rack-mount uninterruptible power supply from the Panduit SteadySine™ UPS line, purpose-built for data center, edge, and enterprise MTDC environments where clean, conditioned power delivery is a non-negotiable infrastructure requirement. At 2U and 17.3 inches wide (440mm), the U01N13V fits standard 19-inch rack enclosures without consuming excessive vertical space — a real consideration in dense edge deployments where every rack unit counts.

The SteadySine™ designation signals a true sine wave output, which matters when powering sensitive network equipment, servers, and active electronics that react poorly to the stepped approximations produced by simulated sine wave units. If your load includes rack-mount switches, storage controllers, or precision power-factor-corrected (PFC) power supplies, a true sine wave UPS is the correct choice — not an optional upgrade.

Key Features

• SteadySine™ True Sine Wave Output: Delivers clean AC waveform to connected equipment — critical for PFC-based server PSUs and network gear that can malfunction or reduce efficiency on modified sine wave sources.
• 1KVA / 230V Single-Phase Rating: Sized for edge nodes, compact server rooms, or individual rack segments in larger MTDC builds. Verify your connected load does not exceed the VA rating when planning outlet distribution.
• 2U Rack Form Factor (86.5mm / 3.4 in tall, 440mm / 17.3 in wide): Integrates cleanly into standard 19-inch open-frame or enclosed rack enclosures — no shelf adapter or custom mounting required at standard rack widths.
• Targeted at Data Center, Edge, and Enterprise MTDC Applications: Panduit positions the U01N13V within its power distribution and environmental hardware portfolio specifically for structured infrastructure deployments, not consumer or light-commercial use.

Integration & Compatibility

The U01N13V is designed for integration within Panduit's broader power distribution ecosystem, making it a natural fit alongside Panduit rack PDUs and cable management solutions in structured cabling and data center builds. Confirm outlet type and input plug configuration against your regional facility standard before ordering — 230V single-phase connectivity requirements vary by country and facility spec. For multi-device edge deployments, consult a UPS sizing guide to confirm this 1KVA unit covers your full connected load with adequate headroom.

Frequently Asked Questions

Q: What is the Panduit U01N13V's power rating?

A: The U01N13V is rated at 1KVA, 230V single-phase. It is part of the SteadySine™ UPS product line.

Q: What rack space does the U01N13V require?

A: It occupies 2U of rack space — 86.5mm (3.4 inches) tall and 440mm (17.3 inches) wide, fitting standard 19-inch rack enclosures.

Q: What environments is the U01N13V designed for?

A: Panduit rates the U01N13V for data center, edge, and enterprise MTDC (Multi-Tenant Data Center) deployments.

Q: Does the U01N13V produce a true sine wave output?

A: Yes. The SteadySine™ sub-brand designates true sine wave output, which is essential for loads with active PFC power supplies such as server PSUs and high-end network equipment.

Q: Is the U01N13V sold as a single unit?

A: Yes. Package quantity is 1 unit per order.

Jerry Tildsen

The U01N13V sits in an interesting spot in the Panduit SteadySine™ lineup — 1KVA at 230V single-phase in a 2U chassis that measures exactly 440mm wide. That width spec tells you it's designed for standard 19-inch rack integration without adapters, which matters in dense edge builds where a non-standard mount wastes time and introduces cable stress.

Technical Highlights:

• SteadySine™ True Sine Wave: Not a marketing label — it means the output waveform is suitable for active PFC server PSUs. A modified sine wave UPS on the same load will cause PSU efficiency loss and, in some cases, PSU failure under load. Specify this correctly the first time.
• 2U / 1KVA Footprint: At 86.5mm tall, this unit consumes minimal vertical space relative to its capacity — useful in half-height edge enclosures where 3U and 4U UPS units simply don't fit without displacing compute resources.
• MTDC Application Rating: Panduit explicitly positions this for multi-tenant data center environments, meaning the unit is built to infrastructure-grade reliability expectations, not light-commercial standards.

Deployment Considerations:

• Confirm outlet configuration and input plug type match your 230V facility standard before ordering — regional variations (IEC C14, IEC C20, local country plugs) can require adapters that introduce points of failure in a clean power path.
• 1KVA is the ceiling, not the target operating point. Size your connected load to 60–80% of rated capacity for proper runtime and thermal margin — running at or near 1KVA continuously will reduce battery longevity and thermal headroom.

For a compact edge node or a single critical rack segment in an enterprise MTDC build — where rack space is rationed and a clean sine wave is required for PFC server PSUs — the U01N13V is the Panduit SteadySine™ unit to spec.
