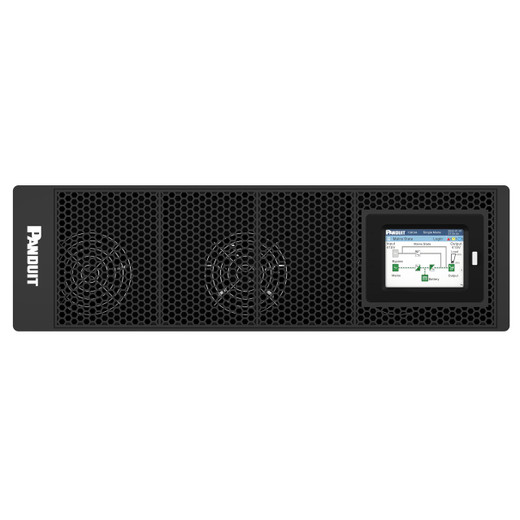

Panduit U10N32V SteadySine 10kVA Rack-Mount UPS
The Panduit U10N32V delivers enterprise-grade power protection for mission-critical data center and edge computing environments. This 10kVA/10kW line-interactive UPS combines SteadySine true sine wave output with intelligent battery management and hot-swappable components, ensuring zero downtime during utility anomalies or planned maintenance. Designed for 3U rack integration, the U10N32V provides scalable runtime through external battery cabinets while maintaining a compact 17.3" width footprint that fits standard 19" racks without consuming excessive vertical space.
Key Features
- 10kVA/10kW output capacity supports high-density server racks, storage arrays, and network core equipment without oversizing
- SteadySine pure sine wave technology eliminates harmonic distortion that degrades power supplies and triggers nuisance alarms in sensitive IT loads
- 3U rack-mount form factor (12" H × 17.3" W) installs in standard 19" racks alongside servers and switches, reducing floor space requirements in crowded data centers
- Hot-swappable battery modules enable runtime extension and field replacement without taking the UPS offline or powering down protected equipment
- LCD display and network management card provide real-time monitoring of input voltage, output load, battery status, and fault conditions via SNMP, Modbus, or web interface
- Automatic Voltage Regulation (AVR) corrects brownouts and overvoltages without switching to battery, preserving battery life during chronic utility sags common in industrial edge sites
Enterprise data centers and edge computing deployments face two distinct power challenges: catastrophic outages that require immediate battery backup, and chronic voltage fluctuations that degrade equipment over months. The U10N32V addresses both through its dual-stage protection architecture. The front-end AVR circuit corrects input voltage swings from 160V to 280V without engaging the battery inverter, a critical capability in manufacturing plants and remote telecom huts where utility quality is poor but outages are rare. When input voltage falls outside the AVR correction range or fails entirely, the unit transfers to battery mode in under 4 milliseconds—fast enough that server power supplies never detect the transition. The SteadySine inverter then generates a pure sine wave output with less than 3% total harmonic distortion, matching or exceeding utility-grade power quality. This eliminates the equipment compatibility issues and reduced power supply efficiency common with older square-wave or stepped-approximation UPS topologies.
Scalability and serviceability define the U10N32V's operational advantage in multi-year deployments. The internal battery string provides 8-12 minutes of runtime at full 10kW load—sufficient to ride through brief utility interruptions or execute a controlled server shutdown. For extended runtime requirements, external battery cabinets connect via a rear-mounted battery port, extending backup time to 30+ minutes without increasing the UPS footprint in the rack. Each battery module uses hot-swap connectors that allow field replacement during a maintenance window without transferring the load to bypass or powering down equipment. The LCD front panel displays battery health metrics including estimated runtime, charge percentage, and predicted replacement date based on charge cycle count and ambient temperature history. This predictive maintenance data integrates with data center infrastructure management (DCIM) platforms via the optional network management card, enabling centralized monitoring of UPS fleets across distributed edge sites.
The U10N32V meets data center efficiency and compliance requirements through high-efficiency operation and standards-based management interfaces. In ECO mode, the unit achieves up to 98% efficiency by bypassing the inverter during normal utility operation and activating battery backup only when input voltage drifts outside a narrow tolerance window. This reduces cooling loads and operating costs in large installations while maintaining the 4ms transfer time required for IT equipment protection. The network management card supports SNMP v3 for secure integration with enterprise monitoring systems, Modbus TCP for building management system (BMS) integration, and a RESTful API for custom scripting and automation. Compliance with Energy Star and California Title 20 ensures the unit qualifies for utility rebates and meets procurement requirements in regulated markets. The U10N32V is engineered for commercial integrators deploying hyperconverged infrastructure, surveillance recording servers, and network operations centers where load consolidation and long-term serviceability justify the investment in true line-interactive topology over cheaper standby designs.
