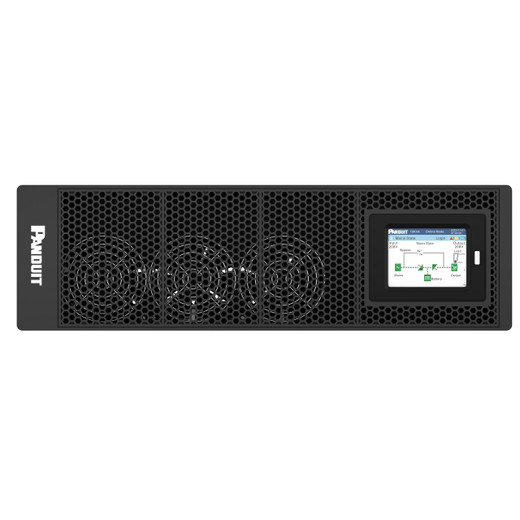

Panduit U10N11V SteadySine 10kVA Online Rack UPS

Panduit U10N11V SteadySine™ UPS

The Panduit U10N11V delivers enterprise-grade uninterruptible power for data center, edge computing, and modular tier data center (MTDC) deployments where clean sine wave output and reliable runtime are non-negotiable. Built on the SteadySine™ platform, this rack-mountable UPS protects mission-critical infrastructure—surveillance NVRs, IP camera PoE switches, access control panels, network core equipment—from utility sags, surges, transients, and outages. At 10.3" height and 17.3" width, the unit integrates into standard 19" racks while maintaining compact 6U vertical clearance, leaving room for adjacent equipment in space-constrained server rooms or IDF closets. For integrators managing multi-vendor stacks where power quality directly impacts uptime SLAs, the U10N11V provides the clean double-conversion topology and SNMP-manageable monitoring that IT and facilities teams expect from Panduit's connectivity ecosystem.

Key Features

• SteadySine™ double-conversion topology eliminates line noise, voltage fluctuations, and frequency drift for sensitive IP security and network gear
• Rack-optimized 10.3"H × 17.3"W form factor fits standard EIA racks with 6U vertical footprint, compatible with 2-post and 4-post configurations
• Enterprise MTDC-rated design supports edge compute, colocation, and modular data center environments where space and cooling are at a premium
• Hot-swappable battery modules enable runtime extension and field replacement without powering down protected loads
• Network management card slot accepts SNMP/HTTP adapters for remote monitoring, graceful OS shutdown scripts, and integration with DCIM platforms
• Input/output hardwire terminals accommodate high-amperage branch circuits common in commercial security installations with PoE switch arrays and NVR clusters
• Configurable output receptacles support mixed loads—C13 for switches and servers, C19 for high-draw NVRs, hardwire for permanent equipment connections

Double-conversion online topology is the critical differentiator for IP surveillance and access control deployments. Unlike line-interactive or standby UPS architectures that switch to battery during anomalies (introducing 2-10ms transfer time), the U10N11V continuously reconstructs AC power from DC battery bus, delivering zero transfer time and eliminating the microcuts that reboot PoE cameras, corrupt NVR RAID arrays, or drop access credential databases mid-transaction. The inverter generates pure sine wave output with <3% total harmonic distortion, meeting the power factor and crest factor demands of active PFC power supplies in enterprise-grade network switches, servers, and storage—equipment that refuses to operate on modified square wave or high-THD waveforms. For integrators spec'ing systems where a single power event can trigger cascading failures across dozens of IP endpoints, this continuous conditioning is the reason you select true online UPS over cheaper topologies.

Physical installation aligns with standard IT infrastructure practices. The 17.3" width spans the full 19" rack opening with adjustable mounting rails that accommodate square-hole, round-hole, and threaded racks in Dell, HP, APC, and generic enclosures. At 10.3" height (approximately 6U), you maintain airflow separation from heat-generating compute gear above and below—critical in passively cooled edge deployments where a single 20U rack houses PoE switches, NVR, UPS, patch panels, and fiber enclosures in a single column. Input hardwire terminals accept 10-6 AWG copper from 20A or 30A branch circuits (consult NEC Article 645 for ITEA room requirements), while output circuits feed protected equipment via front-accessible receptacle banks or rear hardwire terminals for permanent connections. Battery modules slide in from the front with tool-free retention, allowing swap operations in live racks without accessing rear cabling—a necessity when the UPS is sandwiched between patch panels and you cannot pull the unit forward on slides.

Runtime planning starts with load inventory. A typical IP security edge site might draw 1,200W continuous: 48-port PoE+ switch at 740W (full PoE budget), 64-channel 4K NVR with 12×8TB drives at 320W, managed switch stack at 90W, access controller at 50W. At 50% load, expect 8-12 minutes runtime on internal batteries—sufficient for brief utility flicker but inadequate for orderly shutdown during extended outages. Extended battery modules (sold separately, verified compatible via Panduit configurator) chain to the internal bus and scale runtime linearly: one EBM adds 10-15 minutes, two EBMs push 25-35 minutes, three EBMs approach 45-60 minutes depending on load and battery age. For sites requiring >1 hour runtime, evaluate whether distributed UPS (per-rack protection) or centralized UPS with larger battery strings better fits your facility's electrical topology and maintenance model. The U10N11V's modular battery architecture lets you start with base runtime and expand as budget or SLA requirements evolve, avoiding the upfront cost of oversized battery banks that sit underutilized.

Network management integration is table stakes for enterprise and MTDC environments where UPS events must flow into the same monitoring stack as environmental sensors, PDU circuits, and DCIM dashboards. The management card slot (adapter sold separately—verify Panduit-compatible models) accepts SNMP cards that expose voltage, current, load percentage, battery charge, runtime remaining, and fault conditions via standard MIBs queryable by Nagios, PRTG, SolarWinds, or Panduit's own SmartZone management suite. HTTP/HTTPS interfaces provide browser-based dashboards for non-SNMP environments, while shutdown agents for Windows, Linux, ESXi, and Hyper-V trigger graceful OS halts when runtime drops below configurable thresholds (default 2 minutes). Email and SMS alerting (when paired with compatible management cards) notify on-call staff of power events, battery EOL warnings, and overload conditions before they escalate to unplanned downtime. For integrators managing 20+ edge sites, centralized SNMP polling consolidates UPS health into the same NOC view as camera uptime and switch port status, surfacing power problems alongside the IP security events they cause.

The SteadySine™ platform competes directly with APC Smart-UPS SRT, Eaton 9PX, Liebert GXT5, and Tripp Lite SU10KRT3U in the 10kVA online rack UPS segment. Panduit's differentiation comes through ecosystem integration—the same vendor supplying your structured cabling, cable management, fiber enclosures, and rack PDUs now extends into power protection, consolidating purchasing, support, and warranty under a single throat to choke. For integrators already standardized on Panduit physical layer infrastructure, the U10N11V eliminates multi-vendor finger-pointing when a power event coincides with a network fault: one TAC call, one RMA process, one support contract renewal. Competitively priced against incumbent brands while meeting the same UL 1778, cUL, and Energy Star certifications, this UPS proves Panduit's expansion beyond passive connectivity into active infrastructure matches the technical rigor and build quality integrators expect from a 65-year-old manufacturer with IEEE and TIA standards authorship.
