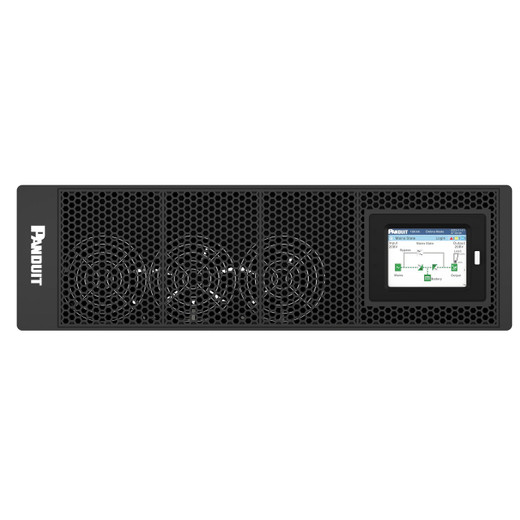

Panduit U05S11V SteadySine™ 6U Rack-Mount UPS

Panduit U05S11V SteadySine™ Rack-Mount UPS

The Panduit U05S11V is a 6U rack-mountable uninterruptible power supply from the SteadySine™ series, engineered for data center, edge computing, and enterprise MTDC (Modular/Tactical Data Center) deployments where clean, continuous power is non-negotiable. This UPS delivers true pure sine wave output to protect servers, network switches, storage arrays, and PoE infrastructure from outages, voltage sags, frequency drift, and harmonic distortion that can corrupt data, trigger nuisance shutdowns, or accelerate power supply failure. At 10.3 inches high and 17.3 inches wide, the U05S11V fits standard 19-inch rack infrastructure with compact vertical clearance, leaving room above and below for patch panels, cable managers, and environmental monitoring in dense colocation cabinets or on-premise server rooms. The SteadySine™ platform is purpose-built for mission-critical loads that demand low total harmonic distortion (THD), high input power factor correction, and seamless transfer times under 4 milliseconds—requirements you'll face when protecting blade servers with active PFC power supplies, FC/iSCSI storage with spinning disks, or managed PoE switches feeding 90W+ cameras and access points.

Key Features

• Pure sine wave output eliminates harmonic distortion for servers, storage, and networking hardware with Active PFC power supplies
• Compact 6U rack-mount form factor (10.3" H × 17.3" W) fits 19-inch racks with minimal vertical clearance consumption
• SteadySine™ platform architecture for low THD, high power factor correction, and sub-4ms transfer time
• Designed for data center core, edge computing, and enterprise MTDC environments including remote sites and tactical deployments
• Supports mission-critical infrastructure including NVRs, PoE switches, VoIP gateways, and physical security controllers
• Generator-compatible input stage for extended runtime during utility outages or emergency backup scenarios
• MTDC-hardened design for wider ambient temperature and humidity operating ranges than commercial-grade UPS platforms
• 19-inch rack-compatible mounting with front-accessible status indicators and management interfaces
• Integrates with Panduit rack PDU, structured cabling, and thermal management ecosystem for single-vendor procurement

The SteadySine™ architecture in the U05S11V prioritizes power quality and waveform fidelity over raw capacity, making it the right choice for installs where harmonic distortion, transient spikes, frequency instability, or voltage sag can trigger hardware shutdowns, silent data corruption, or premature component failure. Pure sine wave output means no modified square wave, no stepped approximation, and no pulse-width modulation artifacts—servers with Active PFC power supplies, NAS arrays with 7200 RPM drives, managed Layer 3 switches, and IP-based access control panels receive the same clean 60 Hz sinusoidal waveform they expect from utility mains. This eliminates the nuisance alarms, PoE negotiation failures, and early electrolytic capacitor death you see when modified sine wave UPS units are deployed under 24/7 surveillance or recording workloads. For integrators specifying power protection in environments where uptime is measured in dollars per minute—financial trading floors, hospital PACS servers, 911 dispatch centers, casino surveillance—the difference between pure and modified sine wave is the difference between graceful failover and unexplained system resets during a brownout.

The 6U height (10.3 inches) provides sufficient internal volume for battery expansion, extended runtime modules, or hot-swappable battery trays without forcing a switch to inefficient tower UPS form factors that consume floor space in edge deployments, remote telecom huts, or retail IT closets. The 17.3-inch width suggests a slightly narrower chassis than full-width rack UPS models, optimizing the unit for half-depth or short-depth racks common in MTDC, tactical edge, and distributed enterprise scenarios where you're mounting UPS, switches, and patch panels in a 600mm-deep swing-gate enclosure rather than a 1200mm server cabinet. Rear protrusion, airflow path, and cable egress points matter when the UPS sits below high-density blade servers with rear-to-front cooling or between stacked network switches with competing exhaust directions. Panduit's MTDC application focus implies the U05S11V is rated for wider ambient temperature swings (0–40°C or beyond) and humidity ranges than consumer or light-commercial platforms, critical when your edge cabinet is in an unconditioned warehouse, a semi-conditioned MDF closet, a rooftop cellular shelter, or a mobile command vehicle where HVAC is intermittent or nonexistent.

In data center core environments, the U05S11V integrates into redundant power distribution schemes where each rack receives dual AC feeds from separate UPS units, PDU branches, or parallel systems with load-sharing controllers. Pair it with Panduit's locking C13/C19 power cables, intelligent rack PDUs with per-outlet monitoring, and branch circuit tracking to identify failing power supplies, track per-device consumption, and catch overloaded circuits before they trip breakers or bring down a hypervisor host. The pure sine wave output is essential when you're protecting multi-PSU servers configured for N+1 redundancy—modified sine wave UPS units can cause one PSU to signal a fault condition even when line power is stable, forcing the server to run on a single supply and eliminating your redundancy margin. For edge computing and distributed MTDC applications—remote cell sites with 5G small cells, IoT gateways aggregating sensor traffic, retail POS servers in back-of-house closets, branch office domain controllers—the SteadySine™ platform supports brownout ride-through, wide input voltage tolerance (typically ±20% or more), and generator compatibility so you stay online during utility transfers, when backup gensets stabilize frequency after cold start, or when rural grid voltage sags during peak summer air conditioning load.

Surveillance and physical security integrators will immediately recognize the value of pure sine wave output when powering PoE++ switches feeding 90W PTZ cameras, NVRs with 8–16 spinning hard drives recording 4K streams, access control panels managing electromagnetic locks and REX sensors, or VoIP intercoms at building entry points. A modified sine wave UPS may keep the link lights on during an outage, but it introduces enough harmonic distortion and high-frequency noise to cause PoE classification errors (camera negotiates 15.4W when it needs 60W), disk write errors that corrupt video databases, or early failure of aluminum electrolytic capacitors in PoE midspan injectors and media converters. The 6U form factor makes the U05S11V a natural fit for network operation center (NOC) racks and intermediate distribution frame (IDF) closets where you're mixing UPS with 48-port PoE switches, fiber patch panels, horizontal cable managers, and 1U environmental sensors in a single 42U or 45U enclosure. Mount the UPS low in the rack (below the switches) to keep the center of gravity down and reduce tip-over risk during seismic events or when the rack is being relocated on casters.

Unlike consumer-grade UPS units with USB monitoring and software agents that require a dedicated management PC, the U05S11V is designed for integration with enterprise SNMP-based network management systems, DCIM platforms (Data Center Infrastructure Management), and building management systems (BMS) via dry-contact relay outputs, RS-232/485 serial interfaces, or optional network cards that provide SNMP traps, syslog forwarding, and HTTPS access to real-time metrics (input/output voltage, frequency, load percentage, battery health, estimated runtime). This allows you to monitor UPS status from the same Nagios, PRTG, SolarWinds, or Zabbix dashboard you use for switches and servers, receive SMS or email alerts when battery runtime drops below 10 minutes, and script automated VM migration or graceful NVR shutdown sequences when utility power is lost and generator startup fails. For integrators managing 20+ remote sites with edge compute, centralized UPS monitoring eliminates the need for site visits to check battery health or discover that a UPS failed months ago and the equipment has been running on utility power with zero protection.

The SteadySine™ series meets UL 1778 safety standard for uninterruptible power supply equipment, ensuring compliance with National Electrical Code (NEC) Article 645 for information technology equipment rooms and Article 646 for modular data centers. The UL listing covers internal component spacing, flammability ratings, ground fault protection, and overcurrent protection, giving you the documentation AHJs (Authorities Having Jurisdiction) require during electrical inspections and certificate-of-occupancy walkthroughs. The 17.3-inch width and 10.3-inch height provide layout flexibility in modern open-frame racks, two-post telco racks, and wall-mount swing-gate cabinets where traditional full-width UPS units either won't mount without custom adapter rails or block access to adjacent equipment. Panduit's ecosystem approach means the U05S11V is mechanically and electrically compatible with Panduit rack PDUs, vertical and horizontal cable managers, grounding busbars, and thermal containment hardware, simplifying procurement (single PO, single vendor relationship, volume discounts) and reducing the change-order risk that comes from discovering mid-install that your UPS vendor's mounting holes don't align with your cable manager's standoffs or that the PDU's C19 outlets are rotated 90 degrees from where the UPS input cable expects them.
