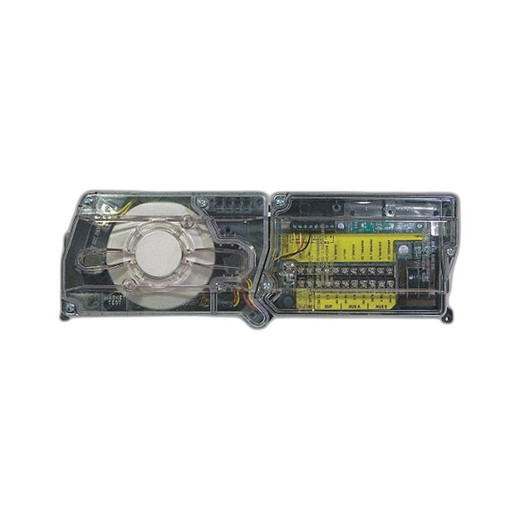

System Sensor D4P120 Duct Detector Power Board Component

System Sensor D4P120 Duct Detector Power Board Component

The System Sensor D4P120 is a dedicated power board component designed for use with duct smoke detection systems. This component functions as a critical power distribution and monitoring module within fire detection installations, providing reliable power management for duct-mounted smoke detectors in HVAC systems.

Overview

The D4P120 power board serves as an interface component between main fire alarm control panels and duct-mounted detection sensors. This component is engineered to deliver consistent power distribution while maintaining monitoring capabilities for early warning fire detection in ventilation systems. The D4P120 is purpose-built for integration into commercial and institutional HVAC ductwork applications where early smoke detection is required by code.

Key Features

• Dedicated power board design for duct detector applications
• Compatible with System Sensor duct smoke detection modules
• Designed for integration into existing fire alarm control panel architectures
• Reliable power distribution for continuous detector operation
• Component-level modularity for flexible system design
• Support for standard fire alarm monitoring protocols

Integration & Compatibility

The D4P120 integrates with System Sensor fire detection systems and is typically used in conjunction with duct-mounted smoke detector heads. This power board component works within fire alarm control panel ecosystems to provide power and signal conditioning to detection sensors installed in HVAC ducts. Installation requires proper integration with an active fire alarm control panel that supports duct detector modules. Integrators should verify compatibility with existing control panel models and ensure proper supervision circuits are configured per NFPA 72 standards.

Application Scenarios

The D4P120 is commonly deployed in commercial buildings, hospitals, educational facilities, and other institutional structures where HVAC duct smoke detection is mandated. These applications require early warning detection before smoke reaches occupied spaces or air handling unit returns. The power board component enables reliable detection in HVAC systems that serve multiple zones or large building sections. Proper sizing and placement of duct detectors connected through the D4P120 ensures comprehensive coverage of ventilation pathways in accordance with applicable fire codes.

Installation of the System Sensor D4P120 should be performed by certified fire alarm technicians familiar with NFPA 72 requirements and local building codes. The component requires integration with a functioning fire alarm control panel and proper supervision of all detection circuits. System integrators should consult current System Sensor technical documentation and control panel manufacturer guidelines to ensure correct wiring, power requirements, and signal path configuration. All installations must comply with applicable fire safety standards and inspection requirements.

Karl Wilson

From a systems integration perspective, the System Sensor D4P120 power board represents a critical component in distributed duct detection strategies. When planning ductwork detection for large HVAC systems, the D4P120 provides the necessary power conditioning and signal management at the detector interface, which becomes essential in buildings with complex air handling configurations.

Technical Highlights:

• Power Distribution Role: The D4P120 manages power delivery to duct-mounted detector heads while maintaining supervised circuits for alarm and trouble signaling back to the control panel
• System Integration: Component-level design allows flexibility in system layout and supports both conventional and addressable control panel architectures

Deployment Considerations:

• Verify control panel compatibility before specifying the D4P120; not all fire alarm panels support all System Sensor detector modules at the same revision level
• Plan duct detector spacing according to NFPA 72 guidelines—typically one detector per 500 square feet of duct cross-section or per manufacturer specifications
• Ensure proper power calculations; duct detectors require dedicated supervised circuits, and multiple D4P120 modules may be needed in large systems
• Test and commission all detection circuits before placing systems in service; include smoke simulation testing per NFPA 72 Section 14.4

The D4P120 should be specified as part of a complete duct detection strategy rather than as an isolated component. Coordinate with HVAC design teams to understand duct layouts, airflow patterns, and code requirements early in project planning. This component delivers reliable performance when installed within a properly designed and maintained fire alarm system.
