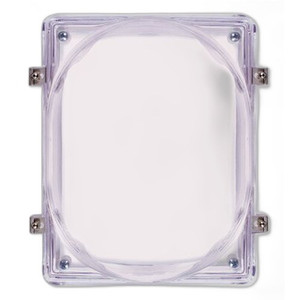

STI STI-1210A Horn/Strobe Damage Stopper with Enclosed Back Box
Overview
The STI STI-1210A is a protective horn/strobe assembly engineered for access control and security notification applications. The unit combines an audible alarm (horn) with synchronized visual signaling (strobe) into a single tamper-resistant package. The integrated Damage Stopper® guard shields the horn and strobe elements from physical impact, vandalism, and environmental stress—reducing replacement costs and service disruptions. Rated NEMA 4X, the STI-1210A operates reliably in outdoor and indoor corrosive environments where salt spray, humidity, or industrial airborne contaminants are a factor. The 4" deep enclosed back box provides weatherproof mounting and keeps internal wiring protected from rain, dust, and thermal stress. Powered by 24VDC, this unit integrates into standard access control and security notification workflows without requiring a separate power supply converter.
Key Features
- Integrated Horn & Strobe: Synchronized audible and visual alarm output from a single mounting point eliminates the need for separate components at exit doors or credential reader stations, reducing installation labor and cable runs.
- Damage Stopper® Guard: Impact-resistant protective cage prevents accidental or deliberate physical damage to horn and strobe elements, extending service life and avoiding unplanned replacements during facility operations.
- NEMA 4X Enclosure Rating: Stainless-steel or corrosion-resistant construction withstands salt-fog, humidity, and chemical exposure—critical for coastal facilities, food processing plants, and chemical storage areas where standard plastic enclosures fail within months.
- 4" Deep Back Box: Enclosed mounting surface protects terminal blocks, internal wiring, and power connections from rain, dust, and temperature swings. Eliminates need for separate conduit sealing or external junction boxes in retrofit installations.
- 24VDC Operation: Compatible with standard door controllers, security panels, and access management systems using 24VDC alarm outputs. No auxiliary power supply or voltage conversion needed—simplifies wiring and reduces point-of-failure sources.
- Professional Mounting Footprint: Standardized back box depth and connection pattern support both new construction and retrofit deployments without custom fabrication or non-standard brackets.
Integration & Compatibility
The STI-1210A integrates into systems requiring coordinated horn and strobe signaling at access control checkpoints, emergency exits, and secure entries. The 24VDC alarm output pairs with door controllers, security panels, and access control systems that provide relay or direct DC outputs for notification devices. Installation is suitable for both new builds and retrofits where protective enclosures and NEMA 4X durability are non-negotiable specifications. The unit's standardized mounting pattern allows integration into multi-door installations where consistency and rapid commissioning reduce project timeline risk.
What's in the Box
- STI STI-1210A Horn/Strobe Assembly
- 4" Deep Enclosed Back Box
- Mounting hardware (as applicable)
Frequently Asked Questions
Q: Is the STI-1210A suitable for outdoor coastal environments?
A: Yes. NEMA 4X rating means the unit resists salt-fog, humidity, and corrosive airborne contaminants. It is commonly deployed in coastal facilities, marine-adjacent access points, and environments with high-salt-spray exposure where standard plastic enclosures corrode within 12–24 months.
Q: Can the STI-1210A be mounted indoors, or is it outdoor-only?
A: The STI-1210A is rated for both indoor and outdoor use. NEMA 4X certification covers wet, corrosive indoor environments (e.g., food plants, chemical storage, wash-down areas) as well as outdoor installations. Choose this unit if your deployment includes either environment.
Q: What voltage does the STI-1210A require?
A: The unit operates on 24VDC, supplied from a standard access control panel or door controller. This matches most commercial security systems and eliminates the need for a separate power supply or voltage converter.
Q: Can the horn and strobe operate independently, or must they activate together?
A: The horn and strobe activate together when the 24VDC alarm circuit is energized. If independent control is required, a separate relay or control module between the alarm output and the STI-1210A will be necessary.
Q: What is the purpose of the Damage Stopper® guard?
A: The Damage Stopper® is an impact-resistant cage that protects the horn and strobe from physical damage, tampering, and environmental stress. In high-traffic areas or facilities with frequent door contact, this guard significantly extends device lifespan and reduces unplanned maintenance.
Q: Does the 4" back box reduce the depth of the device, or is it an addition to the horn/strobe assembly?
A: The 4" deep back box is part of the STI-1210A package and serves as the mounting platform. It provides weatherproof protection for terminal blocks and wiring and is included in the standard unit.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The STI-1210A hits a specific deployment need: access control sites in corrosive or high-impact environments where standard plastic notification devices fail quickly. NEMA 4X durability is not a luxury spec here—it's a cost-per-failure calculation. I've watched facilities in coastal areas or industrial zones install commodity horn/strobes every 18 months; the STI-1210A with Damage Stopper® typically extends that cycle to 4–5 years, offsetting the higher upfront cost.
Technical Highlights:
- NEMA 4X Enclosure: Eliminates corrosion failures in salt-fog, humidity, and chemical-rich air. Standard plastic enclosures oxidize and crack within a year in coastal or chemical-processing facilities; stainless or epoxy-coated metal construction in the STI-1210A resists these environments indefinitely with routine inspection.
- Integrated 4" Back Box: Weatherproof terminal protection means no external junction boxes, no conduit sealing, no additional labor at installation. Retrofit timelines shrink because you mount once and seal tight.
- Damage Stopper® Guard: Impact-resistant cage is critical in high-traffic areas (warehouse loading docks, parking garage entries, facility checkpoints). In these locations, forklift bumps and door contact are real, and replacing a broken strobe in the middle of a security event is a bad day. This guard extends lifespan and reduces mean-time-to-failure.
Deployment Considerations:
- 24VDC integration is standard, but verify your panel outputs a dedicated alarm relay or direct DC line—some older systems require a separate relay card. Commission this wiring detail early to avoid field rework.
- The horn and strobe activate together; independent sequencing requires external logic. If your system needs a horn-only alert followed by a strobe, plan for a relay or controller that supports this—it's a common ask in multi-door facilities with staged evacuation logic.
Deploy the STI-1210A at secure entries in coastal facilities, food-processing plants, chemical storage areas, or high-traffic warehouse access points where NEMA 4X durability and impact resistance are not negotiable. Skip this if your environment is climate-controlled indoor only and door-bump risk is minimal—commodity units will serve fine.
