STI STI-6520-S Protective Reader Cover
Overview

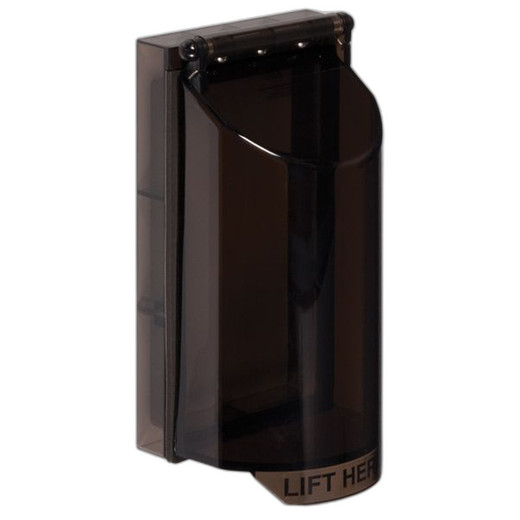

The STI-6520-S is a molded polycarbonate cover designed to shield biometric and keypad identification readers from physical damage and environmental exposure. Finished in smoke color, this hinged housing protects fingerprint scanners, multi-credential readers, and access control keypads mounted on building exteriors or high-traffic indoor locations. The cover mounts directly over reader surfaces with stainless steel torsion spring hinges that hold the cover closed until opened for credential presentation. Install time is minimal — mounting hardware and gasket included. This accessory is backed by a three-year manufacturer guarantee against polycarbonate breakage in normal use.
Compatibility
The STI-6520-S accommodates STI biometric readers and keypads, including fingerprint scanners and combination biometric/keypad units. Verify reader housing dimensions against the cover opening before ordering — the datasheet referenced in STI's installation guides (6514_6516_Install.pdf) specifies dimensional compatibility with select STI reader models. Contact the product manufacturer or a systems integrator if you need confirmation for your specific reader SKU.
Installation Notes
Mount the cover directly above the reader using the supplied stainless steel fasteners and gasket. The polycarbonate material remains functional from −40°F to +250°F (−40°C to +121°C), so it performs in cold outdoor climates and heated indoor cabinets alike. Replace the gasket every five years to maintain weather sealing. The torsion hinge requires no adjustment under normal use — the spring tension is fixed. Do not force the cover open if it sticks; instead, inspect the gasket for debris or ice and clear as needed.
What's in the Box
- 1x Hinged polycarbonate cover (smoke color)
- 1x Stainless steel torsion spring hinge assembly
- Mounting hardware (screws)
- 1x Gasket
