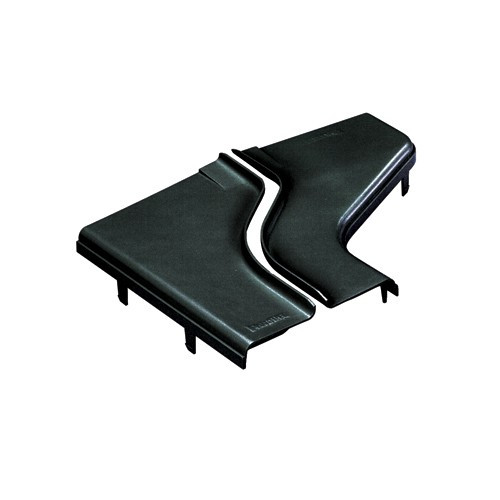

Panduit FRRF126RSCLBL 12-6" Reducer Cover

Panduit FRRF126RSCLBL FiberRunner™ Straight Reducer Cover

The Panduit FRRF126RSCLBL is a split polycarbonate/ABS cover designed specifically for FiberRunner® 12-inch to 6-inch straight reducer transitions in mission-critical data centers and central telecom facilities. The tool-free snap-on design allows installation and removal without disrupting adjacent pathways, while the integrated split creates a 0.5-inch cable access opening that supports adds, moves, and changes without removing the entire cover. UL-certified and Telcordia GR-63-CORE Level 3 compliant, this component maintains pathway integrity during seismic events and meets RoHS requirements for international deployments.

Key Features

• Tool-free snap-on installation and removal — no fasteners required, reduces labor time during pathway construction and cable adds
• 12" to 6" transition cover — creates smooth reducer pathway for high-density fiber backbone runs transitioning between FiberRunner sizes
• Split cover design with 0.5" (12.7 mm) cable access opening — allows mid-span cable insertion without disassembly
• Polycarbonate/ABS construction — impact-resistant material rated for data center environments, black finish blends with standard rack infrastructure
• UL-certified fiber cable pathway assembly — meets UL 2024 listing requirements for optical cable routing systems
• Telcordia GR-63-CORE Level 3 compliant — passes NEBS seismic and vibration testing for telecom central office installations
• RoHS compliant — meets international restrictions on hazardous substances for global deployments

Data center and telecom pathway projects regularly require transitions between 12-inch and 6-inch FiberRunner channels as backbone fiber routes move from high-density riser areas into distribution zones or equipment rows. The FRRF126RSCLBL covers these straight reducer fittings while maintaining the bend-radius protection and physical security that FiberRunner systems provide. The snap-on design eliminates the screws and clips found on older pathway covers — installers position the cover over the reducer fitting and press until the integral tabs engage, creating a secure assembly without tools. This approach cuts installation time and prevents loose hardware from falling into active equipment during overhead pathway work.

The split running the length of the cover serves a specific function during MACs (moves, adds, changes). When a new fiber cable needs to route through an existing populated pathway, technicians can flex the split open to insert the cable without unsnapping the entire cover or disturbing adjacent cables. The 0.5-inch opening width accommodates standard fiber trunk cables and pre-terminated assemblies while remaining narrow enough to prevent cable spillover. For installations requiring fully enclosed pathways, the split can be zip-tied or velcroed closed, though most deployments leave it accessible for future adds. The black polycarbonate/ABS material provides impact resistance in high-traffic areas — drop ceilings, raised floors, and overhead ladder rack transitions — where accidental contact from lift equipment or ladders can occur.

UL 2024 certification for optical cable routing systems requires the entire pathway assembly (channel, fittings, and covers) to meet flame spread and structural load requirements. The FRRF126RSCLBL is tested as part of complete FiberRunner assemblies, ensuring the cover maintains pathway performance under vertical and horizontal fire testing. Telcordia GR-63-CORE Level 3 compliance adds seismic and vibration resistance — central offices in seismic zones (California, Pacific Northwest, Alaska) and high-vibration telecom huts near rail lines or highways use NEBS Level 3 components to prevent pathway failures during environmental events. The reducer cover's snap-on retention is tested to remain engaged during 2.5g seismic accelerations, preventing covers from dislodging and exposing fiber to damage.

This cover is sold individually and ships in cartons of five units for multi-floor or campus-scale deployments where dozens of 12-to-6-inch transitions occur. Integrators building out hyperscale data center fiber backbones or carrier hotel riser pathways typically order in carton quantities to maintain on-site spares and ensure consistent aesthetics across all reducer points. The 9.75-inch length and 13.67-inch width match Panduit's standard FiberRunner straight reducer fitting geometry — confirm your reducer fitting part number before ordering to ensure dimensional compatibility, as angled or offset reducers require different cover profiles.
